Description

Article no.: DYN_NXHipot

  • 50 to 1500VDC Hipot Testing
    50 to 1000VAC (optional)
  • 5Mohm to 1Gohm Insulation Resistance
  • Simple 4-button user interface
  • Tests for continuity and shorts
  • Tests diodes, resistors, capacitors and others
  • Precision resistance measurements
  • Keyed security access and control
  • Built for rough industrial environments
  • 2 serial ports for connection to printers and scanners
  • Standalone operation
  • Uses a high capacity memory card
  • Specially designed for low point-count applications

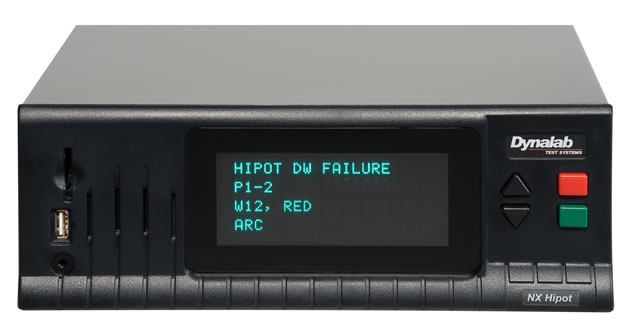

NX Hipot Tester

NX Hipot Testers are fast, accurate, and easy to use. Dynalab designed NX Hipot Testers using the latest available technologies to provide a flexible and adaptable product line that meets the changing needs of wire harness manufacturers. NX Hipot Testers provide all the features of Dynalab's low voltage NX Testers, plus the additional capability of high voltage testing for insulation resistance and dielectric withstand. For test applications that span the range from simple to complex, Dynalab's NX Hipot Testers offer more features than the competition at a lower price.
