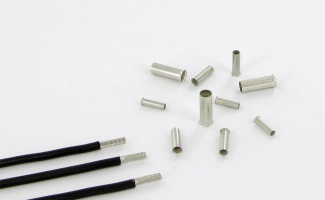

| Non insulated wire end sleeves | CSA certified wire end sleeves |
| Technical data | ||
|---|---|---|
| Material: | Copper | |
| Surface: | tin-plated | |
| Min. coat thickness: | 3 µm | |
| Max. temp.: | 105°C | |
| Certificate: | CSA (Certificate 2110332) | |
| For wires from 0.25 – 240 mm² (AWG 24 – 500 MCM). Tolerances according to DIN 46228 part 1. | ||
| Article number | Size mm² | Length mm | Type | |
|---|---|---|---|---|
| 006825 | 0.25 | 5 | B00205 | Show Item |
| 006000 | 0.25 | 7 | B00207 | Show Item |
| 006002 | 0.34 | 5 | B00305 | Show Item |
| 006004 | 0.34 | 7 | B00307 | Show Item |
| 006006 | 0.5 | 6 | B00506 | Show Item |
| 006008 | 0.5 | 8 | B00508 | Show Item |
| 006010 | 0.5 | 10 | B00510 | Show Item |
| 006012 | 0.75 | 6 | B00706 | Show Item |
| 006014 | 0.75 | 8 | B00708 | Show Item |
| 006015 | 0.75 | 10 | B00710 | Show Item |
| 006016 | 0.75 | 12 | B00712 | Show Item |
| 006017 | 1 | 6 | B01006 | Show Item |
| 006019 | 1 | 7 | B01007 | Show Item |
| 006020 | 1 | 8 | B01008 | Show Item |
| 006022 | 1 | 10 | B01010 | Show Item |
| 006024 | 1 | 12 | B01012 | Show Item |
| 006027 | 1.5 | 7 | B01507 | Show Item |
| 006030 | 1.5 | 8 | B01508 | Show Item |
| 006031 | 1.5 | 10 | B01510 | Show Item |
| 006033 | 1.5 | 12 | B01512 | Show Item |
| 006035 | 1.5 | 15 | B01515 | Show Item |
| 006036 | 1.5 | 18 | B01518 | Show Item |
| 006038 | 1.5 | 20 | B01520 | Show Item |
| 006040 | 2,5 | 7 | B02507 | Show Item |
| 006042 | 2,5 | 8 | B02508 | Show Item |
| 006043 | 2,5 | 10 | B02510 | Show Item |
| 006045 | 2,5 | 12 | B02512 | Show Item |
| 006047 | 2,5 | 15 | B02515 | Show Item |
| 006048 | 2,5 | 18 | B02518 | Show Item |
| 006049 | 2,5 | 20 | B02520 | Show Item |
| 006050 | 4 | 9 | B04009 | Show Item |
| 006052 | 4 | 10 | B04010 | Show Item |
| 006053 | 4 | 12 | B04012 | Show Item |
| 006055 | 4 | 15 | B04015 | Show Item |
| 006056 | 4 | 18 | B04018 | Show Item |
| 006058 | 4 | 20 | B04020 | Show Item |
| 006059 | 6 | 10 | B06010 | Show Item |
| 006060 | 6 | 12 | B06012 | Show Item |
| 006062 | 6 | 15 | B06015 | Show Item |
| 006063 | 6 | 18 | B06018 | Show Item |
| 006065 | 6 | 20 | B06020 | Show Item |
| 006068 | 10 | 12 | B10012 | Show Item |
| 006070 | 10 | 15 | B10015 | Show Item |
| 006071 | 10 | 18 | B10018 | Show Item |
| 006073 | 10 | 20 | B10020 | Show Item |
| 006074 | 10 | 25 | B10025 | Show Item |
| 006079 | 16 | 12 | B16012 | Show Item |
| 006080 | 16 | 15 | B16015 | Show Item |
| 006081 | 16 | 18 | B16018 | Show Item |
| 006083 | 16 | 20 | B16020 | Show Item |
| 006084 | 16 | 25 | B16025 | Show Item |
| 006085 | 16 | 32 | B16032 | Show Item |
| 006089 | 25 | 12 | B25012 | Show Item |
| 006091 | 25 | 15 | B25015 | Show Item |
| 006092 | 25 | 18 | B25018 | Show Item |
| 006094 | 25 | 25 | B25025 | Show Item |
| 006095 | 25 | 32 | B25032 | Show Item |
| 006098 | 35 | 18 | B35018 | Show Item |
| 006099 | 35 | 20 | B35020 | Show Item |
| 006100 | 35 | 25 | B35025 | Show Item |
| 006101 | 35 | 32 | B35032 | Show Item |
| 006102 | 50 | 18 | B50018 | Show Item |
| 006103 | 50 | 22 | B50022 | Show Item |
| 006104 | 50 | 25 | B50025 | Show Item |
| 006105 | 50 | 32 | B50032 | Show Item |
| 006107 | 70 | 25 | B70025 | Show Item |
| 006108 | 70 | 32 | B70032 | Show Item |
| 006109 | 95 | 25 | B95025 | Show Item |
| 006110 | 95 | 30 | B95030 | Show Item |
| 006111 | 95 | 32 | B95032 | Show Item |
| 006075 | 120 | 32 | B120032 | Show Item |
| 006076 | 120 | 40 | B120040 | Show Item |
| 006077 | 150 | 32 | B150032 | Show Item |
| 006078 | 150 | 38 | B150038 | Show Item |
| 006086 | 185 | 32 | B185032 | Show Item |
| 006087 | 185 | 40 | B185040 | Show Item |
| 006088 | 240 | 40 | B240040 | Show Item |
