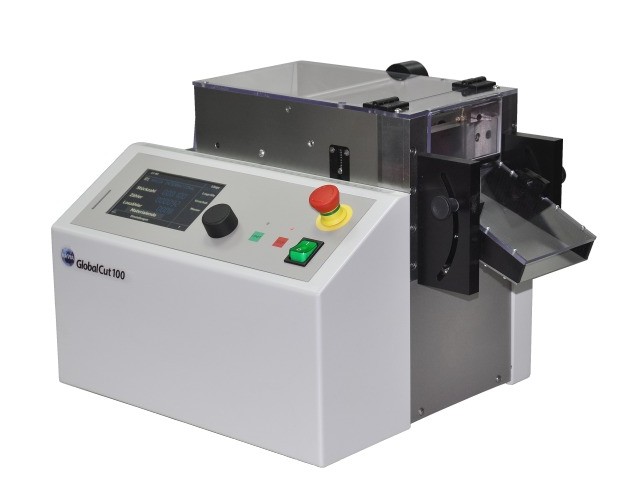

Globalcut 100 Vario D
Cutting machine for tubings and cables
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: WTR_GC100_VARIO_D
Special Highlights:
Stainless steel guides of the knife,
Electronic cable end control detection
Voltage range 110 V to 230V
Knife sensor, knife opens when the material is not cut.
* New * Servomotor feeding Unit for all GlobalCut Machines
Menu has several languages
When the protective cover is opened, the machine stops immediately.
When switching off or power failure, the meter reading is retained
Increased ease of use with new operating system
GlobalCut 100PRO Digital:
Dimensions: 350 x 290 x 250mm
Weight: 35 Kg
Supply voltage: 110V to 230V / 50-60Hz
Power: 140 VA
Cutting width: up to 100 mm
Maximum material thickness: up to 12 mm
Minimal material thickness: 0.1 mm
Cable cross-section: stranded wire up to 35 mm²
Max. Feed: 1.5m / s in 9 steps
Knife speed: 6 levels
Program Memory: 100
Stainless steel guides of the knife,
Electronic cable end control detection
Voltage range 110 V to 230V
Knife sensor, knife opens when the material is not cut.
* New * Servomotor feeding Unit for all GlobalCut Machines
Menu has several languages
When the protective cover is opened, the machine stops immediately.
When switching off or power failure, the meter reading is retained
Increased ease of use with new operating system
GlobalCut 100PRO Digital:
Dimensions: 350 x 290 x 250mm
Weight: 35 Kg
Supply voltage: 110V to 230V / 50-60Hz
Power: 140 VA
Cutting width: up to 100 mm
Maximum material thickness: up to 12 mm
Minimal material thickness: 0.1 mm
Cable cross-section: stranded wire up to 35 mm²
Max. Feed: 1.5m / s in 9 steps
Knife speed: 6 levels
Program Memory: 100
Files and media
 | Operation manual |
