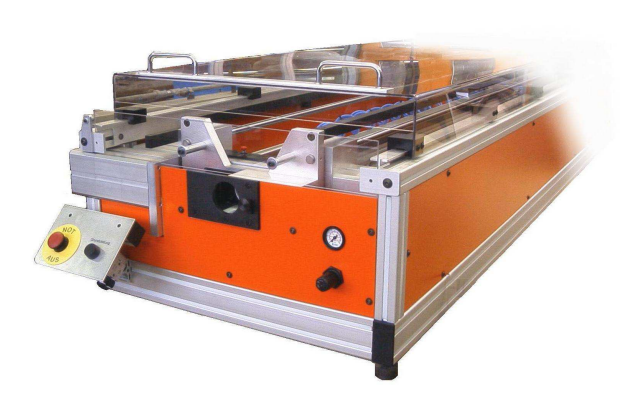

Stripper   P30/100 & P30/500

 The Stripper P 30 / …
are used in the cable pre-assembling industry ,when cables, ready for further
processes are requested. The machines work semi-automatic and are suitable for
mass production whenever the outer jacket of the cable has to be removed.
The machines are very compact and easy to use.
Function:
The cable beginning is placed into the stripper till the set end stop is reached.
Then the foot interrupter is activated. In one step, with help of an installed pneumatic
system, the outer jacket is cut and stripped of. The stripped cable can be pulled out.
The stripped off jacket falls through a shaft under the machine into a collection tank.
It is very easy to change the stripper blade and cable guide tubes for the suitable
stripping length without any tools.

Stripping blades, guide tubes and press blocks are not included in the basic equipment !

Data sheet
Basic equipment:              STRIPPER P30/....

Insulation removable length:

STRIPPER P 30 / 100 max: 100 mm
STRIPPER P 30 / 300 max: 300 mm
STRIPPER P 30 / 500 max: 500 mm
STRIPPER P 30 / 1000 max: 1000 mm
STRIPPER P 30 / 1500 max: 1500 mm
STRIPPER P 30 / 2000 max: 2000 mm

Technical Data:
 - Suitable cable diameter: 30 mm
 - Insulation removal length up to 2000mm
