| Striping | Round cables: from 1,0 – 25 mm outer-Ø Special Version Am.Strip.2/35: up to 35mm outer- Ø |
| Striping | Flat band cables up to 30 mm width |
| Striping | MAX. strip length: up to 120 mm full strip Am.Strip.2 V up to 230 mm full strip up to 450 mm part strip |
| Air supply | 6 - 7bar |
| Weight | 12,2Kg |
| Dimensions | Am.Strip.2: 430 x 550 x 200 mm Am.Strip.2 V: 430 x 680 x 235 mm |
BE-RI - AM.STRIP.2
Pneumatic stripping-machine
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: BER_AM.STRIP.2

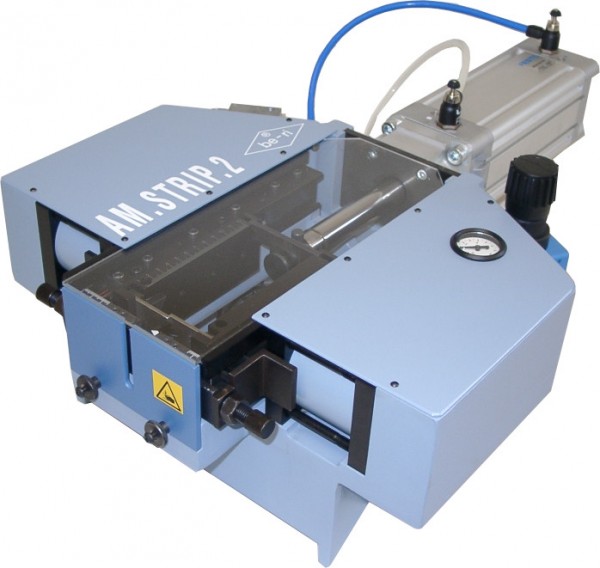

BE-RI - AM.strip.2
Pneumatic stripping-machine
The Am.Strip.2, Am.Strip. 2 V and Am.Strip.2/35 are universal semi-automatic stripping machines for the economical production of small to medium series.
The use of special knives to suit the cable being processed allows nearly all standard cables to be handled. All machine retooling can be done in seconds without tools.
When prism knives are used, the machine adapts automatically from the standard setting to other cross – sections up to 6 mm2 (depending on cable).
Variations: with pneumatic sensor with mini sensor .
