| Stripping length (total removing) | ca. 7-250 mm |
| Partial removal | (7-250 mm) Up to 600 mm |
| Stripping diameter | ca. 2-25,5 mm |
| Cycle time (depending from cable) | 3-6 sec. |
| Operating pressure | 6-7 bar |
| Local Necessities (W x D x H/mm) | 470x1075x375 |

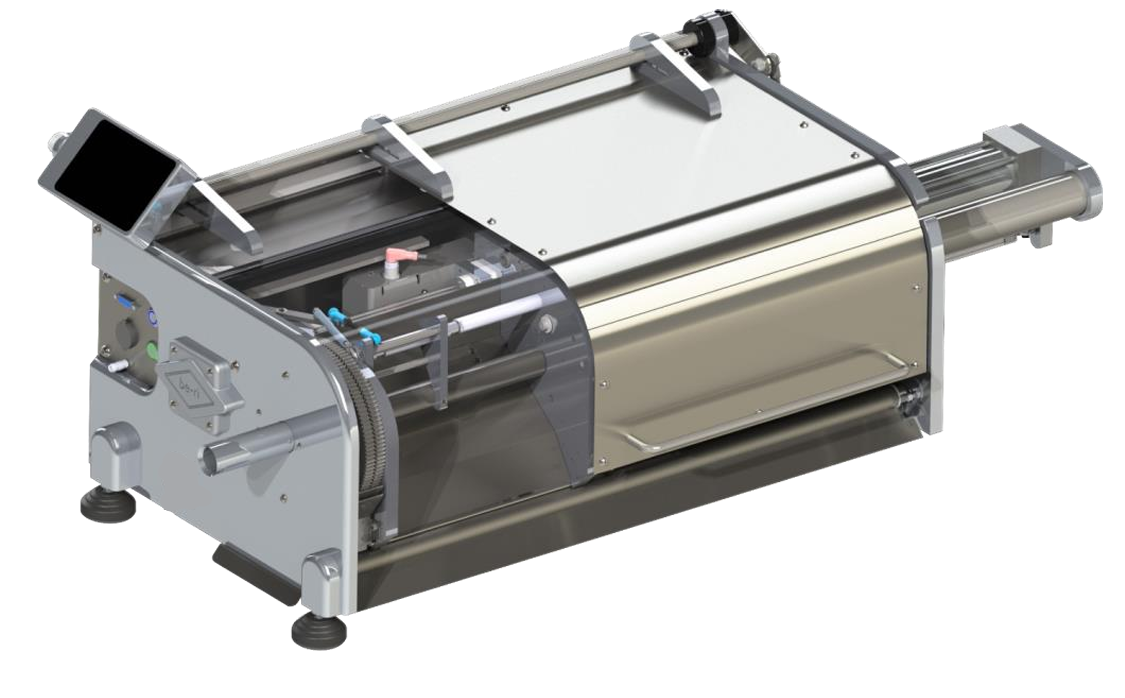

BE-RI - ALL.ROUND.AUTO
Electro-pneumatic wire stripping machine with rotating blades
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: BER_AM.All.round.AUTO
ALL.ROUND.AUTO
The new ALL.ROUND.AUTO has been enhanced with
essential functions and features. It can be programmed
via touch screen and has, among other things, retrieva
ble cable-specific processing programs.
The "AUTO" processes round cables in one step. Advantages and Special Features
• Rotating blade head

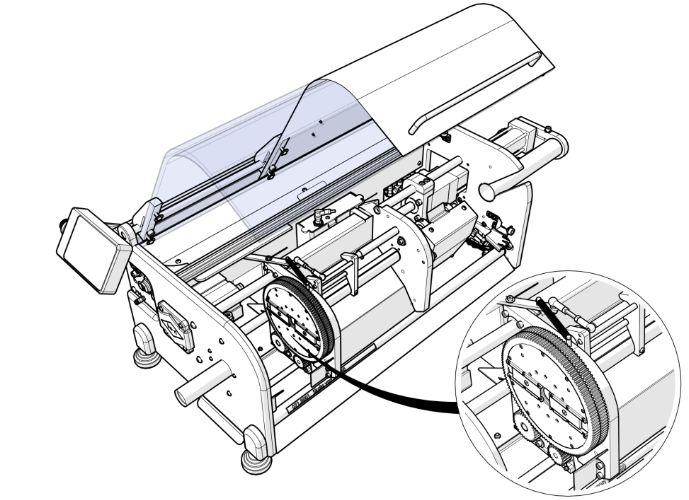

Standard K1 = 2-blade head

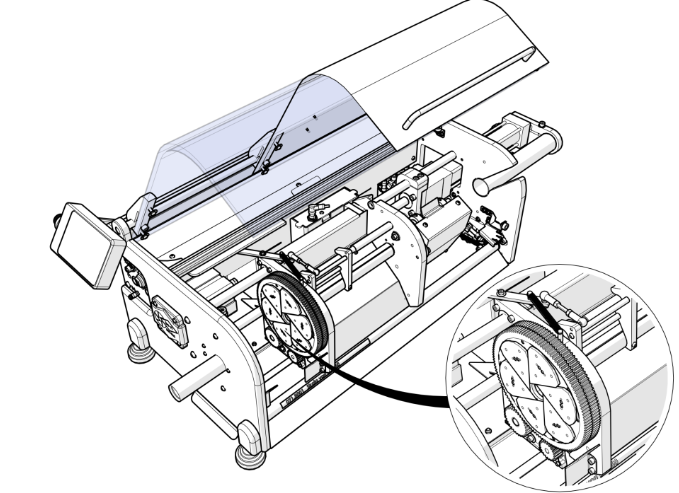

K2 = 6 blade head in SIX-TEC technology
• Capacitive touchscreen 5"
• AM.ALL.ROUND knives can be used (K1)
• Triggering via sensor or foot switch
• Optionally convertible to 630 / 1.000 mm stripping length in partial removal to 250 mm max.
• Maintenance-friendly design
• Programmable clamping force
• Data backup via USB
• Language conversion German / English
• Blow-out function
• Waiting time adjustable (for easy removal of the cable)
• Conversion mm / inch
• Disable function / password query (also possible via barcode scanner)
