| Power supply | 240 V 50-60 Hz |
| Overall dimensions (W x H x D) | 45 x 40 x 31 cm |
| Weight | 19,5 kg |
| Guarantee | 12 months |
SP101_WBCM
Wide blade cutting machine

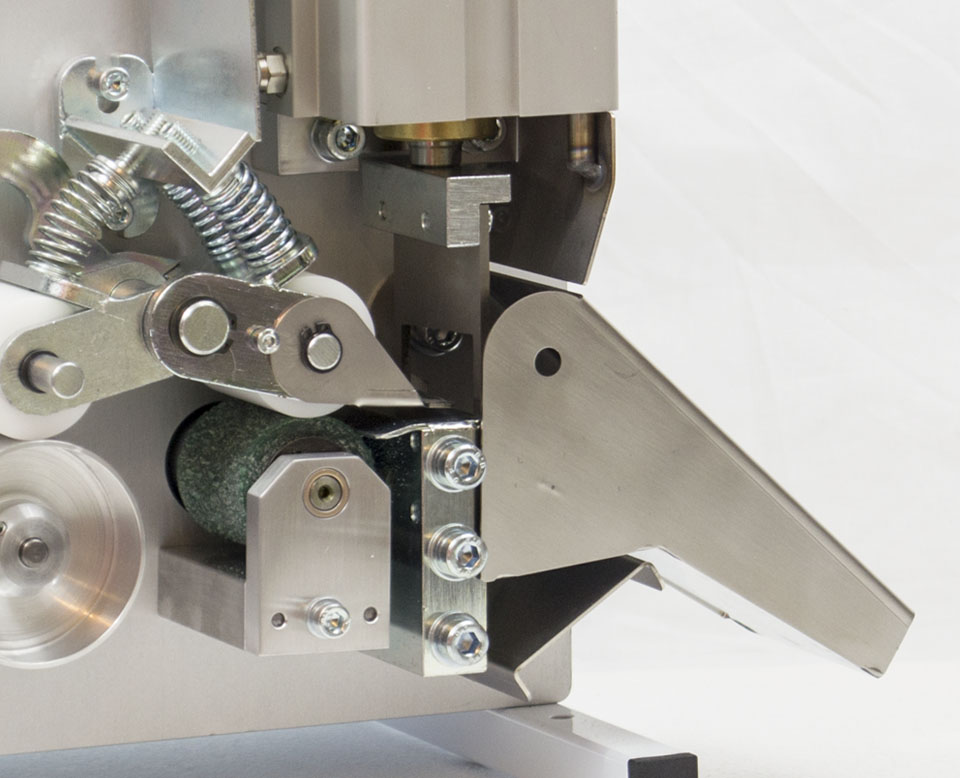

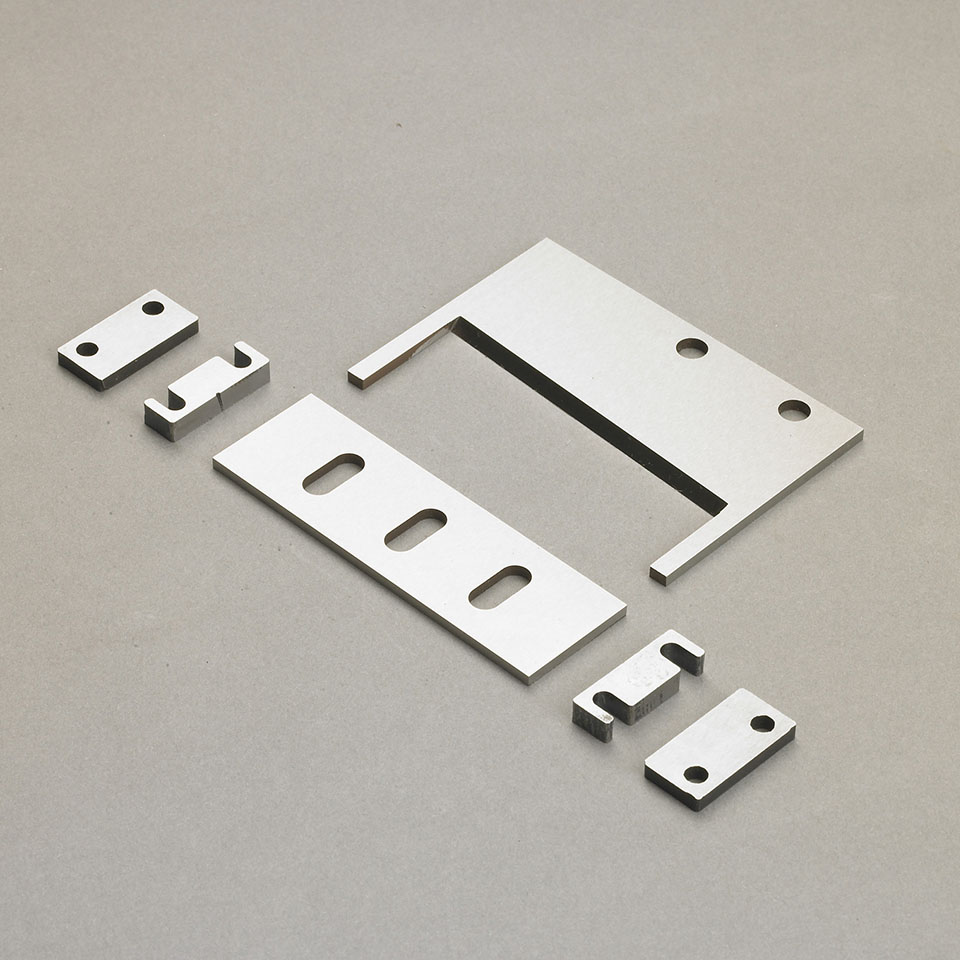

Equipped with a tempered steel blade, a guillotine cut and a cutting aperture of 85×20 mm. The wide blade is suitable for cutting material over 45 mm and up to 80 mm wide, such as flat cables with 64 conductors.
Equipped with a tempered steel blade, a guillotine cut and a cutting aperture of 85×20 mm. The wide blade is suitable for cutting material over 45 mm and up to 80 mm wide, such as flat cables with 64 conductors.
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: ERR_SP101_WBCM

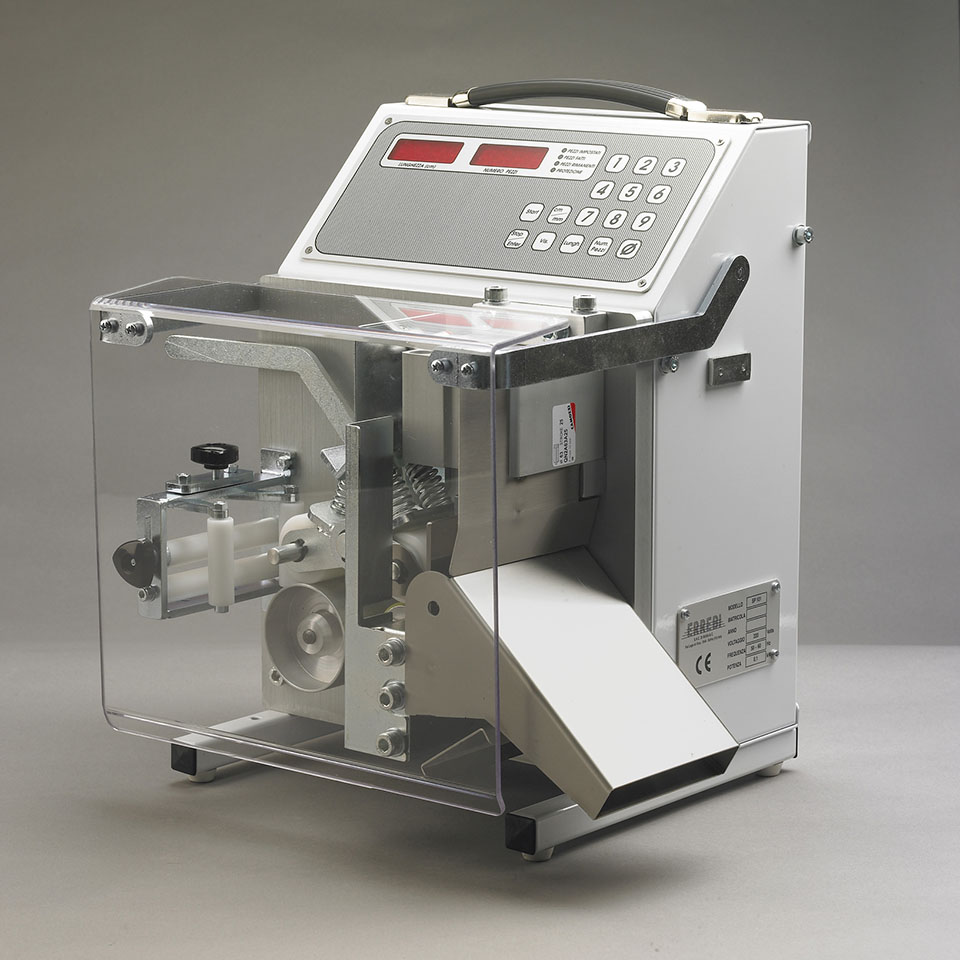

SP101 CUTTING MACHINE
- Single conductor cable from 0.1 to 10 mm2
- Multi-conductor cable up to 5×1 mm2

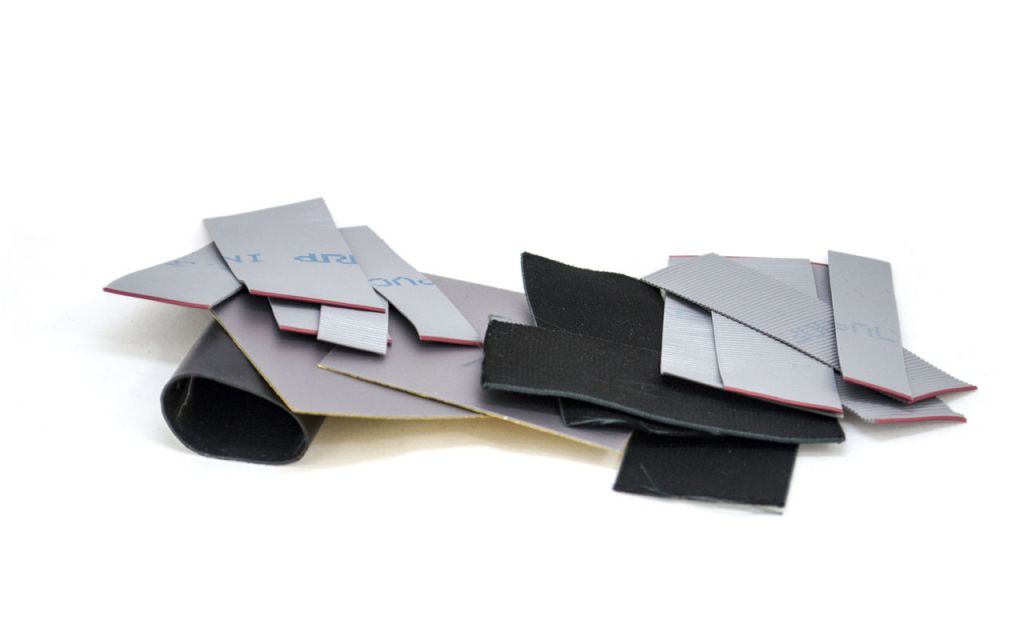

- Flat cable up to 64 conductors
- Tubes, heat-shrink tubes and other materials
Through a simple adjustment to the inlet guiding turret, all the above materials can be cut without any component substitution, thus ensuring a faster and more practical operation. The precision of the cutting length depends on how the material is inserted into the machine. When a high-precision cut is required, we recommend using the machine in combination with one of our DE-REELERS.
- Automatic microprocessor-controlled operation.
- Upon request, the control panels are available in Italian, English, French, German and Spanish.
- Memorised settings even when the machine is switched off.
- Length setting from 0.1 to 9999 cm (100 metres).
- Piece number setting from 1 to 9999 pieces, or unlimited.
- Pneumatic supply from 2 to 6 bar.
- Air consumption 0.32 litres/cut (4 bar).
- Maximum feed rate 1900 m/h.
- Maximum productivity when cutting 10 mm pieces ? 12000 pieces/hour.
