SP101_PCM
Paper cutting machine

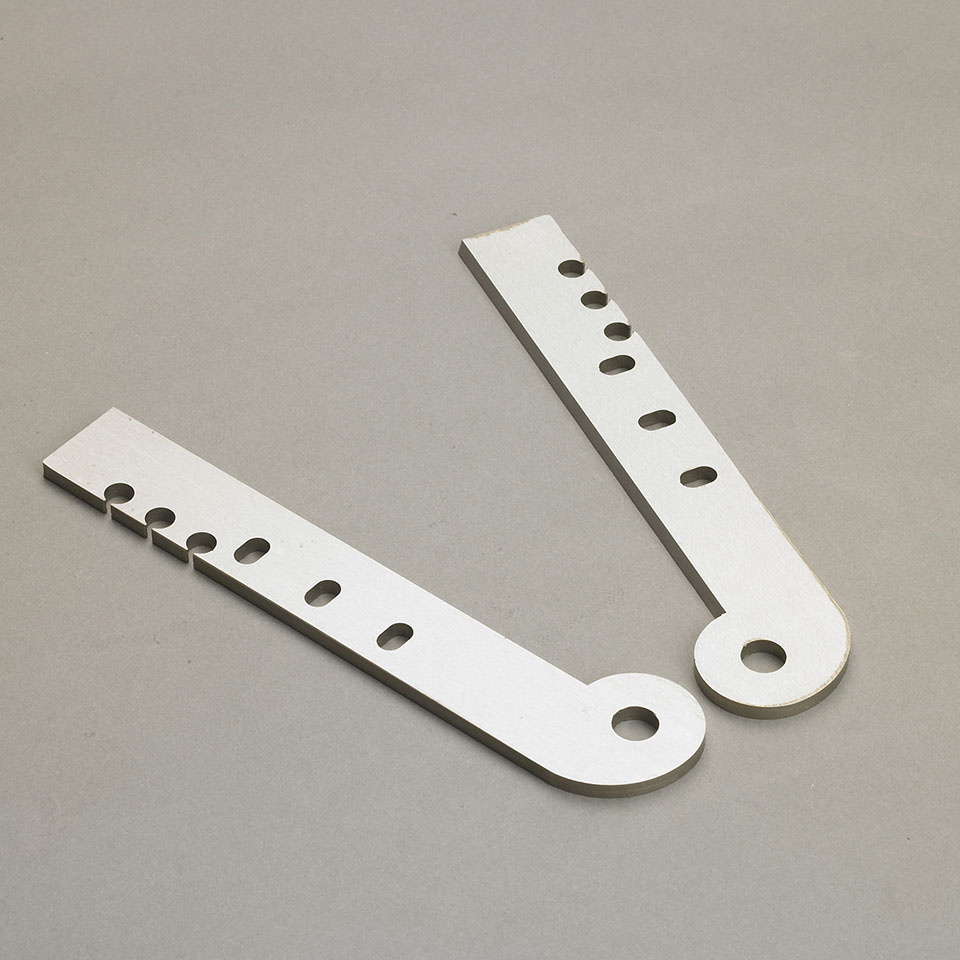

Equipped with a tempered steel blade, a scissor cut and a cutting aperture of 2×150 mm.
Equipped with a tempered steel blade, a scissor cut and a cutting aperture of 2×150 mm.
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: ERR_SP101_PCM

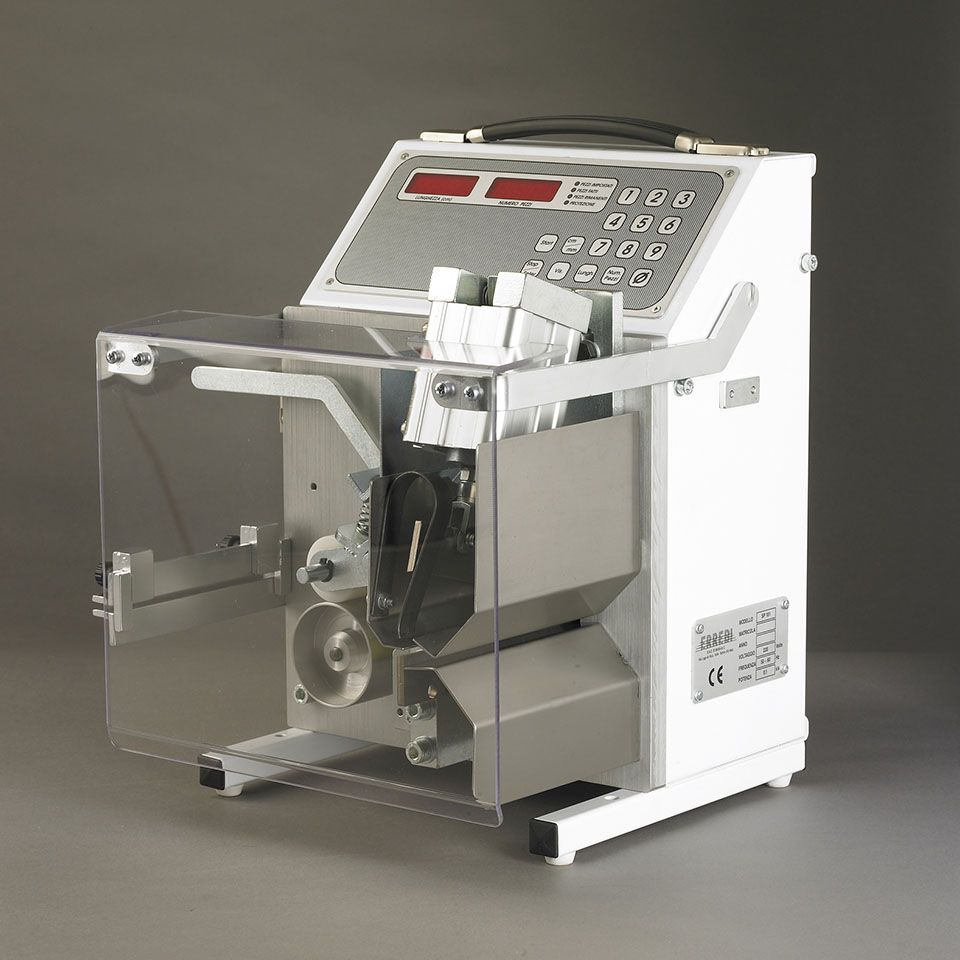

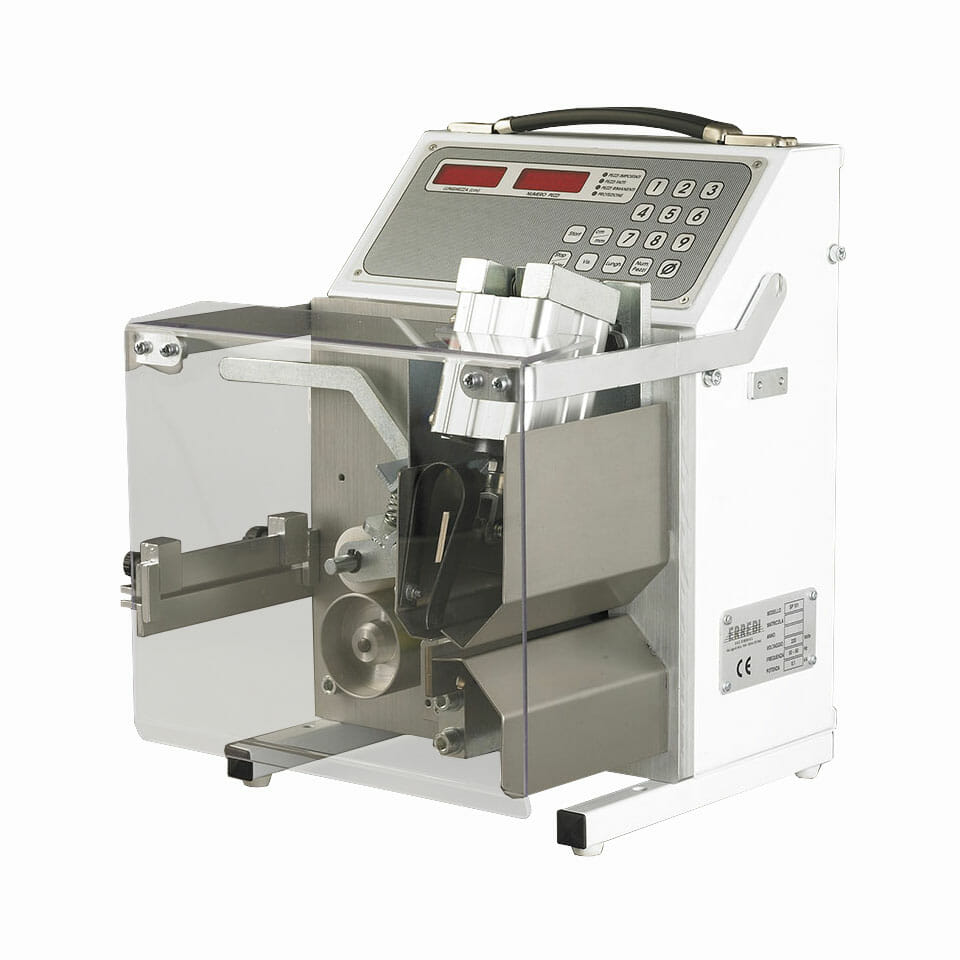

SP101 PAPER CUTTING MACHINE
The SP101 PAPER CUTTING MACHINE has been designed and developed to cut flat material (such as insulation winding paper)
with a maximum thickness up to 1.5 mm (depending on the rigidity of the material) and a maximum width up to 145 mm.

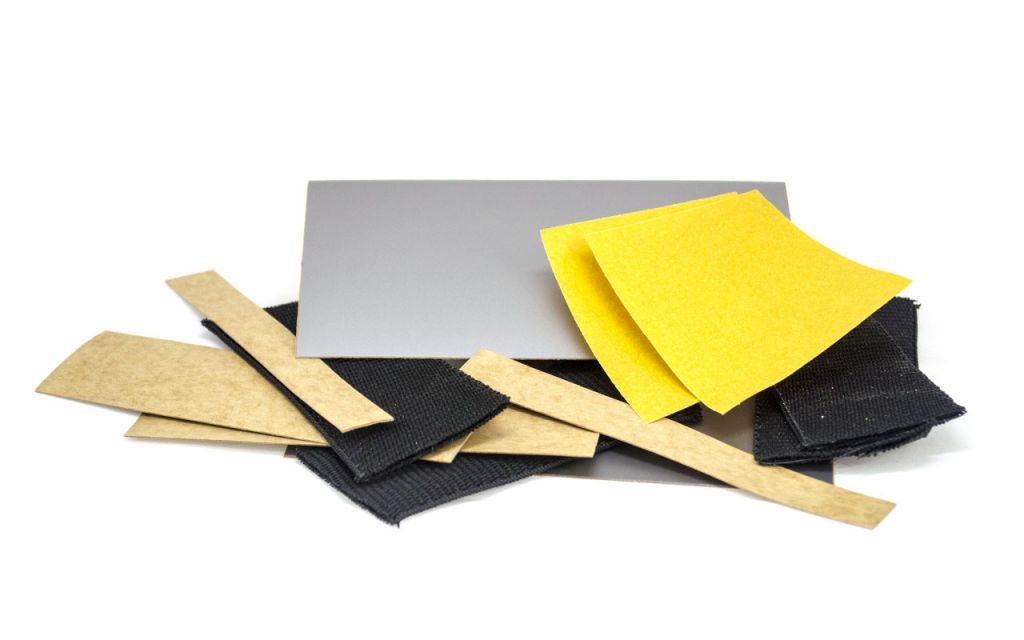

It can be used for processing materials such as:
- Tape-like materials with max. thickness up to 1.5 mm
- Insulating winding paper
- Flat cable
Upon request, the machine can be properly equipped to cut copper strips or other metals.
The machine can be also supplied with a VERTICAL DE-REELER, which is mounted directly on the machine and is suitable for reels with holes from 13 to 115 mm.
Technical Specifications
- Automatic microprocessor-controlled operation.
- Upon request, the control panels are available in Italian, English, French, German and Spanish.
- Memorised settings even when the machine is switched off.
- Length setting from 0.1 to 9999 cm (100 metres).
- Piece number setting from 1 to 9999 pieces, or unlimited.
- Power supply 220 V 50-60 Hz.
- Pneumatic supply from 2 to 6 bar.
- Air consumption 0.32 litres/cut (4 bar).
- Maximum feed rate 1900 m/h.
- Maximum productivity when cutting 10 mm pieces ? 9000 pieces/hour.
- 12 month guarantee.
- Weight 20 kg.
- Overall dimensions (WxHxD) 38x40x34 cm.
