New

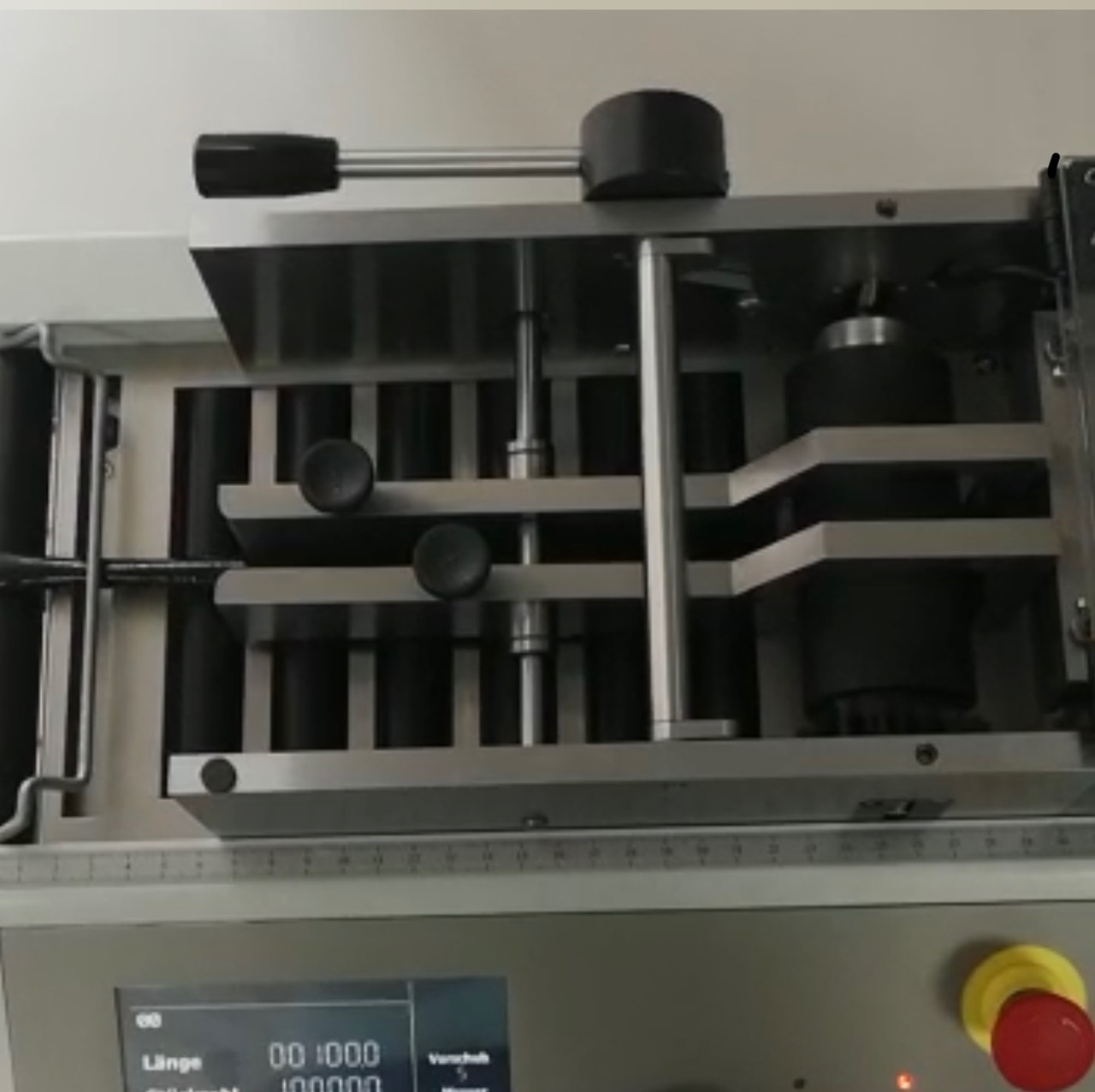

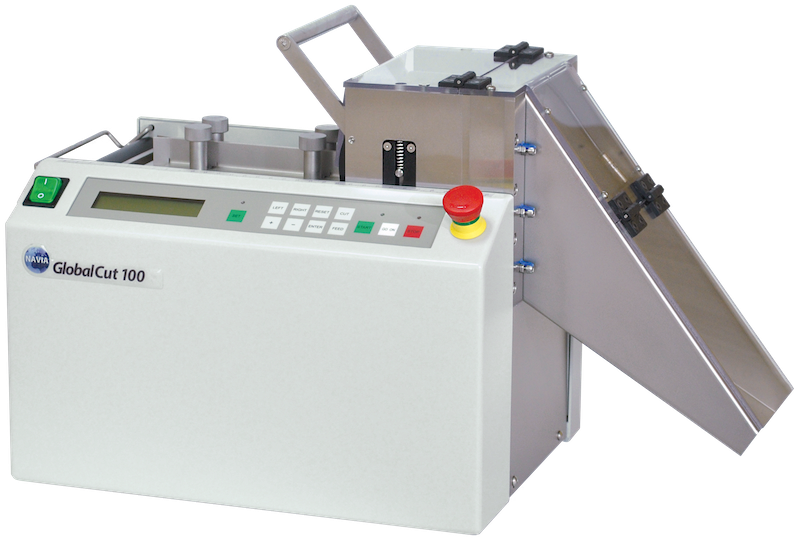

Globalcut 100
Cutting machine for tubings and cables
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: WTR_GC100
Special Highlights:
Stainless steel guides of the knife,
Electronic cable end control detection
Voltage range 110 V to 230V
Knife sensor, knife opens when the material is not cut.
* New * Servomotor feeding Unit for all GlobalCut Machines
Menu has several languages
When the protective cover is opened, the machine stops immediately.
When switching off or power failure, the meter reading is retained
Increased ease of use with new operating system
GlobalCut 100
? Dimensions: 350 x 260 x 250mm
? Weight: 35 Kg
? Supply voltage: 110V to 230V / 50-60Hz
? Power: 140 VA
? Cutting width: up to 100 mm
? Maximum material thickness: up to 12 mm
? Minimal material thickness: 0.1 mm
? Cable cross-section: stranded wire up to 16 mm²
? Max. Feed: 1.9m / s in 10 steps
? Knife speed: 6 levels
? Program Memory: 99
Options for the GlobalCut 100:
- RH 001: Roll Holder for the Global Cut 100
- ASF 002: Material chute for opening especially suitable for shrink tubing and short
pieces.
