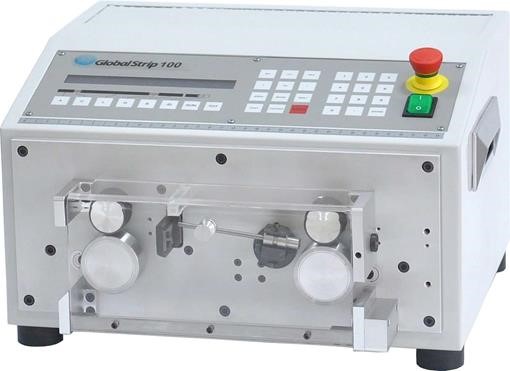

SCC-100 Strip & cut machine
Stripping and cutting machine for small productions.
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: WIT_SCC-100
The latest microcontroller technology combined with high-quality mechanics guarantees reliable work with maximum productivity.
This compact machine in particular is ideal for cell production and control cabinet construction.
A simple, easy-to-understand user interface that is limited to the most necessary settings facilitates familiarization and reduces training costs for staff to a minimum.
This compact machine in particular is ideal for cell production and control cabinet construction.
A simple, easy-to-understand user interface that is limited to the most necessary settings facilitates familiarization and reduces training costs for staff to a minimum.
- Wide working range from 0.05 mm² to 2.5 mm².
- Integrated memory.
- Noise optimized.
- Optional printer control.
| Cable types | Stranded, sheathed cable | Max. Diameter 4 mm |
| Cutting length | Without stripping With stripping | 10 mm to 99999 mm 60 mm to 99999 mm |
| Cross section | 30-14 AWG, 0.05 mm² - 2 mm² | |
| Stripping length | Left Right | 1 - 99 mm 1 - 30 mm |
| Distance length | Left side Right side | 90 mm 30 mm (depending on the cable type) |
| Output | 75 pieces / min (at L = 100, both sides 3 mm stripped) | |
| Speed | 9 steps | 275 - 2000 mm / s (depending on the cable type) |
| Transport castors | Standard | Steel |
| Knife type | Standard | Carbide - V |
| Memory | 248 intern | |
| Voltage / power | 230V - 50 Hz / 240W | |
| Dimensions | 390 x 250 x 420 mm | |
| Weight | 20 kg | |
| CE - The SCC-100 complies with the Machinery Directive 2006/42 EG. | ||
- The highest quality, for cutting and stripping wires.
- Highly efficient and easy to operate.
- A wide range of applications.
- Quick and easy to program with the keyboard and LCD display.
- Transports the cables with four wear-resistant pressure rollers.
- A wide range of standard accessories that make it possible to process a large number of different cables.
- Complies with all regulations of current machinery directives.
- Comes with manufacturer's guarantee of 24 months.
| Pressure rollers | Precision | Knife |
|---|---|---|

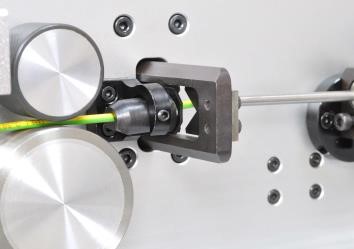

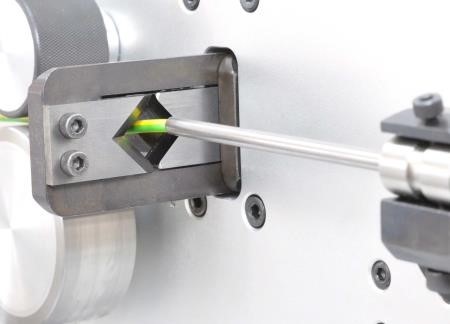

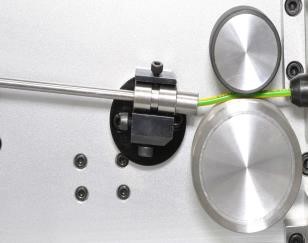

| The adjustable pressure of the rollers enables precise transport even at high working speeds. | The easily exchangeable guide parts guarantee high accuracy. | The standard hard metal V-blades are the ideal solution for most use cases. |
 |  |  |
 | Cutting wire |
 | Cutting heat shrink tubing |
 | Cutting and stripping of sheathed cables |
 | Partial or full deduction on one or both sides for cables |
 | Window stripping and simultaneous full deduction |
