| Wire cross section | 0,5mm²-35mm² |

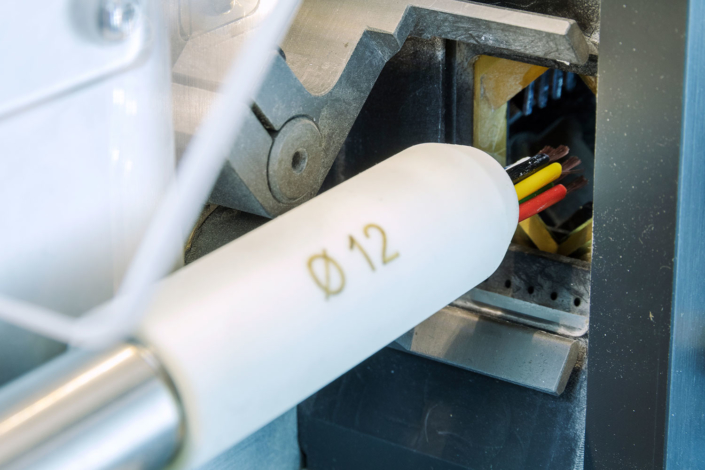

| Workable dia | 2mm-13mm |
| Wire lenght min | 120mm-500mt |
| Feed speed | max. 2,0mt/sec |
| Programmable quantity of pcs | max 9999 |
| Dimensions | 1100x645x1350 |
| weight | 180 kg |
SAMEC TSA12E
TSA12EVO is designed for the processing of insulated and uninsulated single core, multicore and flat cables.

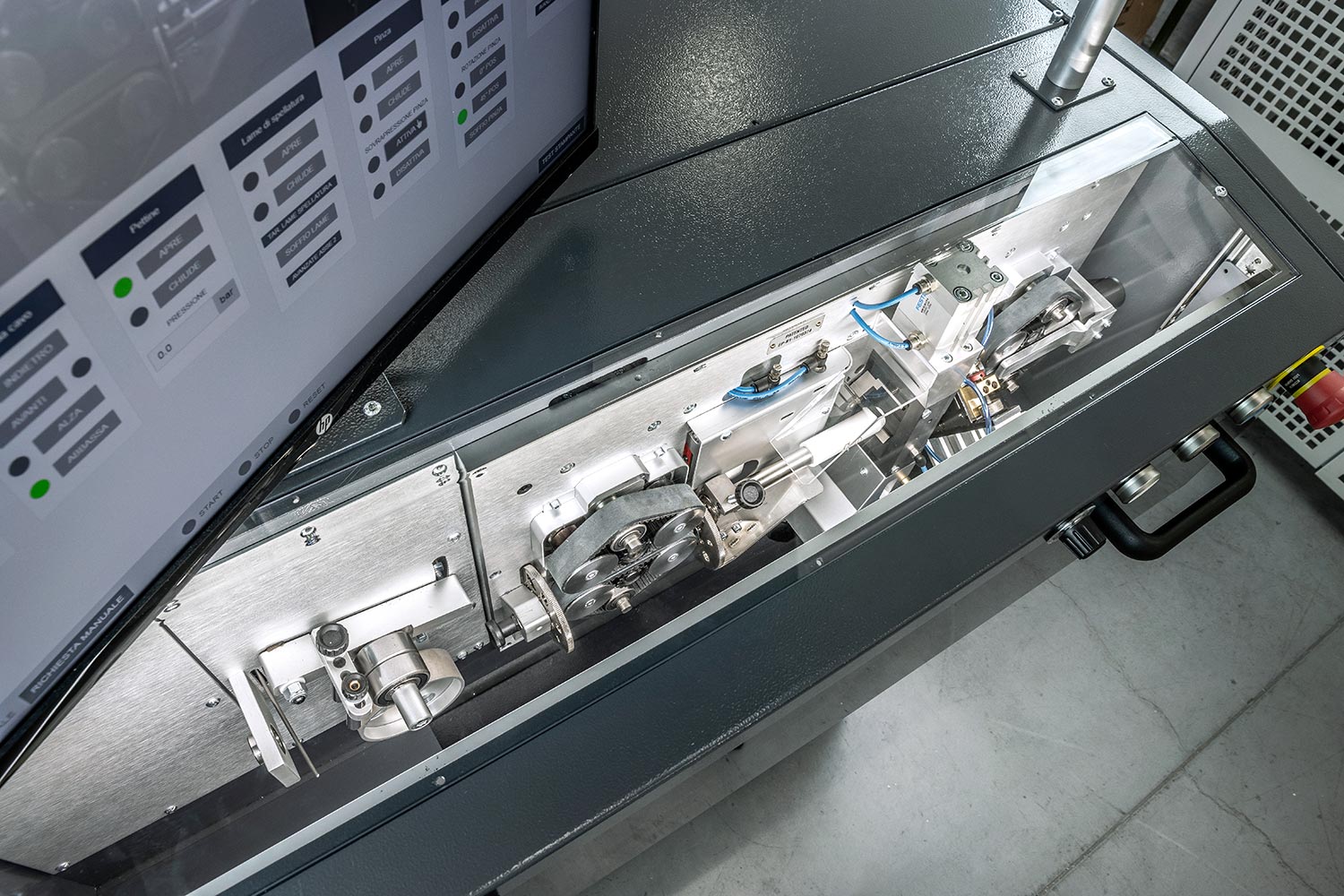

The machine counts the batch, measures the cutting length, strips and unjackets without needing to change blades.
The machine counts the batch, measures the cutting length, strips and unjackets without needing to change blades.
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: SAM_TSA12E
TSA12EVO
ELECTRONIC CUTTING STRIPPING UNSHEATING MACHINE.
TSA12EVO is designed for the processing of insulated anduninsulated single core, multicore and flat cables. The machine counts the batch, measures the cutting length, strips
and unjackets without needing to change blades.
TSA12EVO is equipped for inline processing with other
Samec machines, including motorized cable dereelers, prefeeders, wire markers and stackers ? the machines are connected through a cable to the various interfaces, allowing
signal exchange between machines and centralized management of emergencies.
