Metzner AM 5000

High power and versatility for large cross-sections

The Metzner AM 5000 range includes the flagship models for precise processing of thick cables up to 240 mm² section and 35 mm diameter. Even the basic specification models, with their high torque and powerful three-stage step motors offer the highest level of cutting and haul-off power. All models are equipped with as standard with the Metzner double-knife system that enables very varied and multi-stage processes to be performed. Moreover, with convincing operator-friendliness and long service life. Metzner AM 5000 models are also suited to processing thinner braided cables from 1.5 mm² The stripping full haul-off 1side/2nd side amount to 270-450 mm and 90-270 mm, for partial haul-off 450 mm and 270 mm. For interuption-free automatic production, a number of sensors monitor the material feeding If a material blockage occurs, the production stops automatically and the operator is informed about the cause of the fault.

Metzner AM 5850

This model is equipped with cut and haul-off power for cables up to 185 mm² section and 30 mm diameter as well as a circumferentially rotary cutting module -for processing hybrid cables and wires with thin cable covering and many other applications.

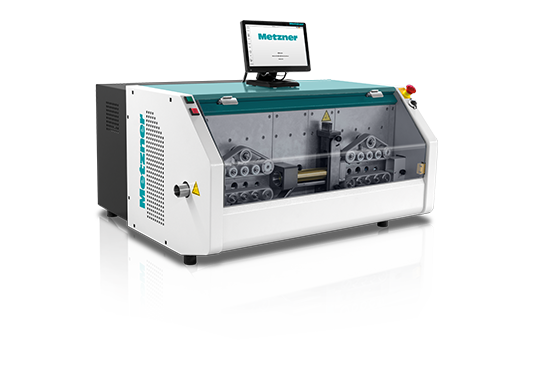

Metzner AM 5800 /AM 5800 HD

The AM 5800 has an outstanding level of cutting and haul-off power as well as many varied processing possibilities for cables up to 35 mm diameter.
