Description
Article no.: MET_AM1000

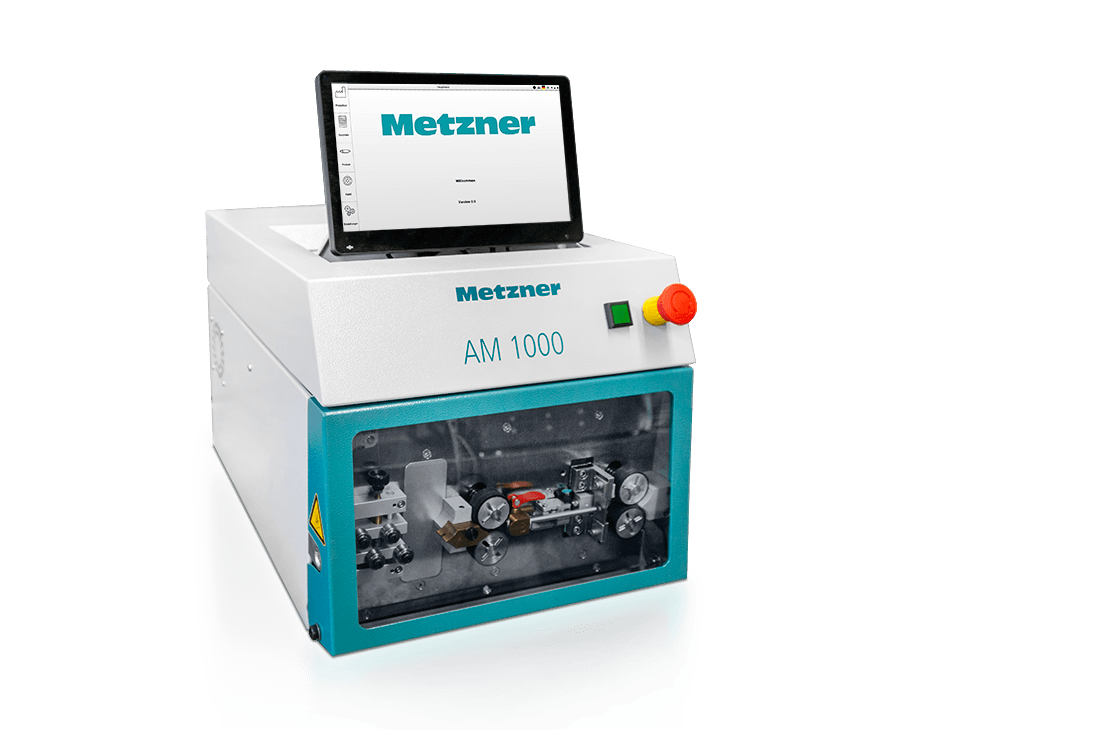

Metzner AM 1000
The Metzner AM 1000 is a sensation among the tabletop units. The automatic cutting and stripping machine processes cables, strands and wires up to 9 mm diameter and 6mm² cable cross-section with a special cutting and pull-off force (optional 10 mm², depending on material). The presettings are conveniently made via the modern 12" touch panel, where the operator can define all processes. Thanks to the sensors for diameter and material recognition, the AM 1000 works extremely precisely. Another special feature is the tool-free replacement of guides and rollers. This means that the AM 1000 can be changed over in just one minute. With the extensive interface preparation, the machine can be optimally expanded with peripheral devices and adapts to all customer requirements. The compact design with retractable touch-screen and the low weight of only 28 kg also offer special comfort. This makes the AM 1000 especially easy to transport.

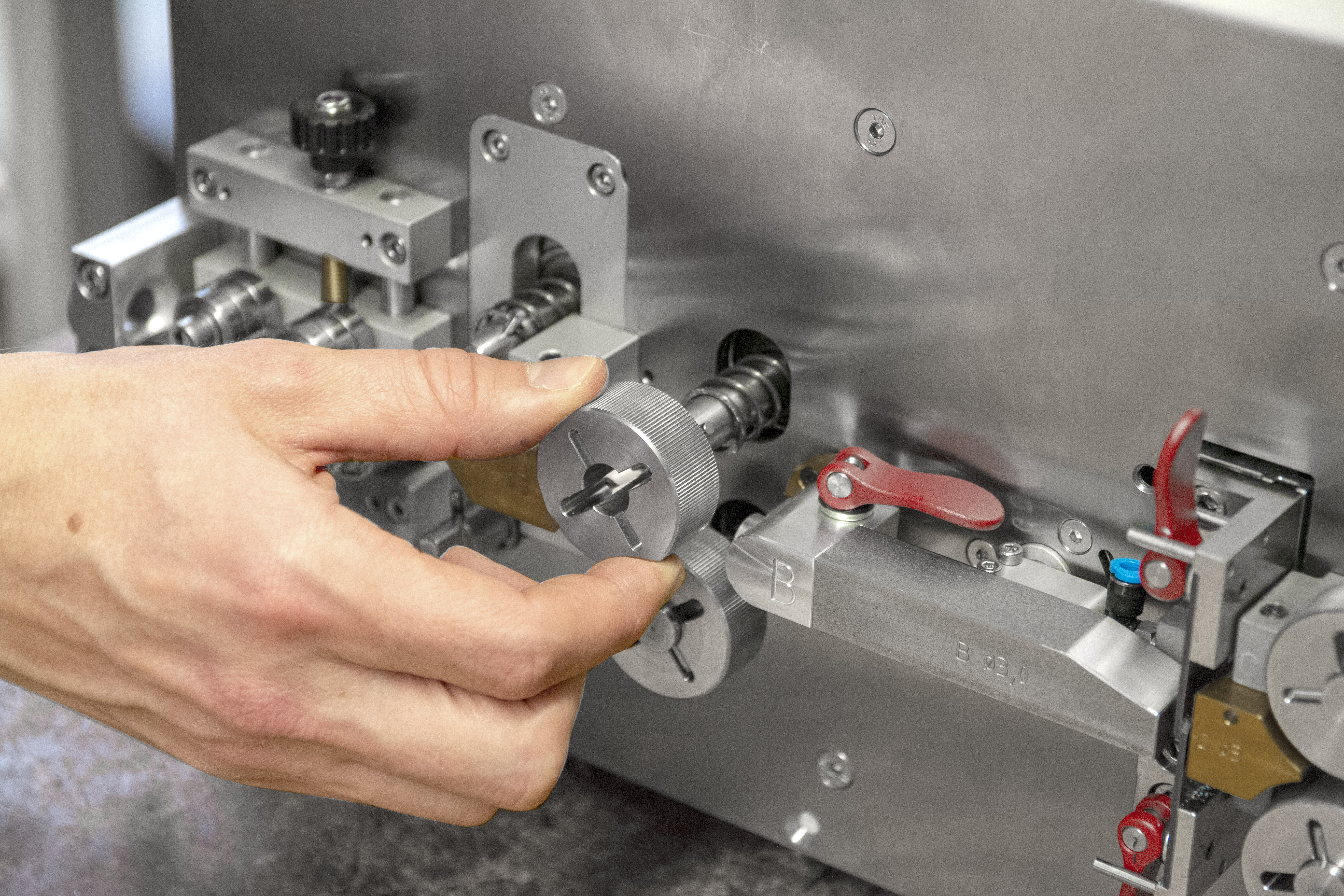

 | Remarkably short changeover times | Thanks to the tool-free change of transport rollers and guides the AM 1000 is ready to process another cable in less than 60 seconds. |

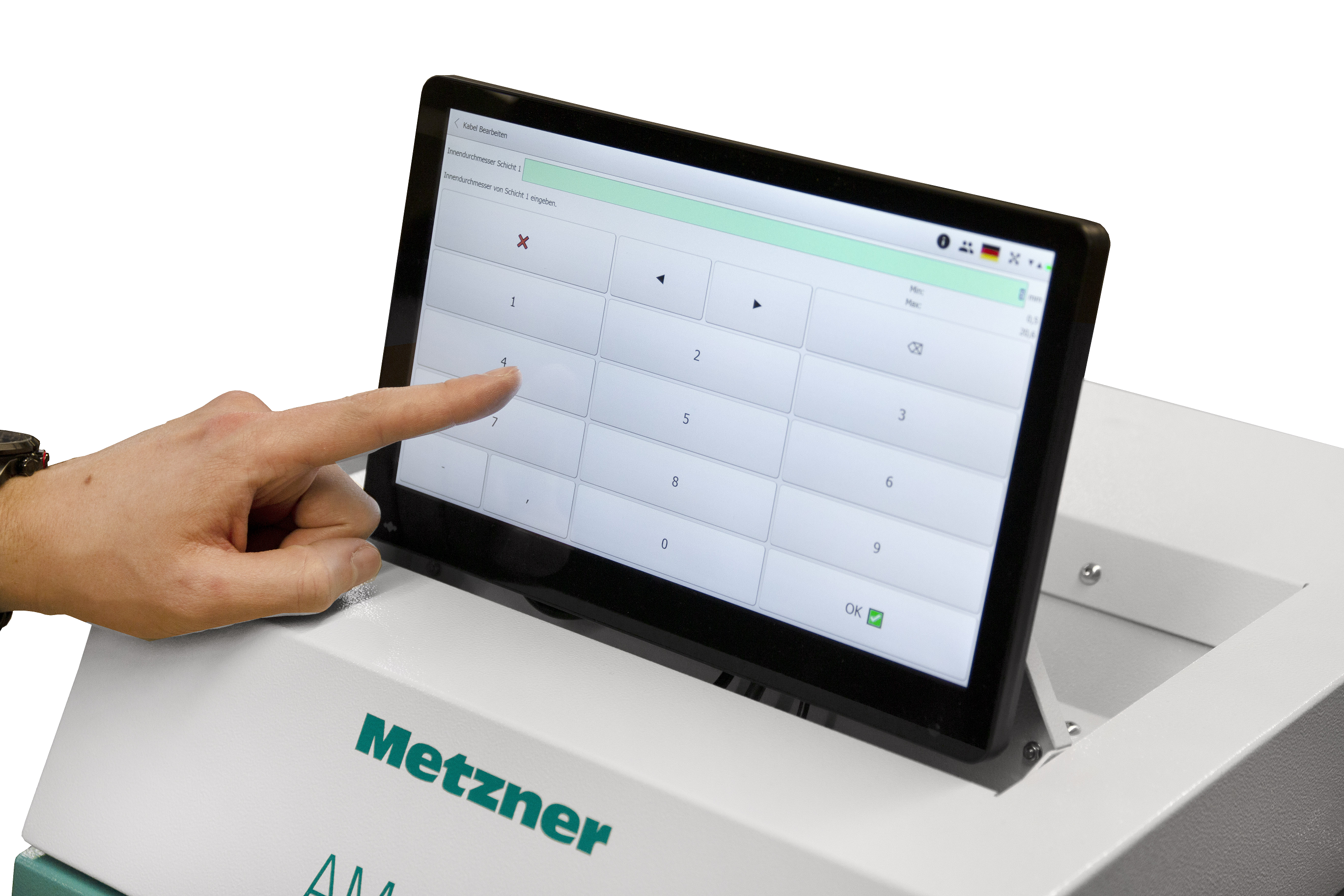

 | Operating convenience that sets standards | With an extra-large 12" touch screen, operating a compact cable dispenser has never been so pleasant and effortless. |
 | 66% more power than usual | With its extra power, the AM 1000 differs advantageously from other machines and you have the right machine today if you have bigger tasks to deal with tomorrow. |
 | Standard with automatic detection of cable diameter and cable end | With automatic detection of the cable diameter, the AM 1000 ensures the shortest possible set-up times for new cables and automatically interrupts your work when the cable ends. |
 | Equipped as standard for processing cable lists and controlling printers | The standard equipment with database software makes the AM 1000 the perfect all-rounder for complex and simple tasks. |
| Functions/Programs | AM 1000 |
| Cutting to length | Yes |
| Stripping with full pull-off | Yes |
| Stripping with partial pull-off | Yes |
| Stripping in multiple steps | Yes |
| Slitting | – |
| Multiple stripping | – |
| Flat cables | ≤ 10 mm width (option) |
| Material end detection | option |
| Cable length correction | Yes |
| Recipe data management | Yes |
| Length measurement system | option |
| Machine Parameters | |
| Transport unit | roll |
| Networking / MES interface (Industry 4.0) | selectable |
| Remote maintenance | (PC integrated) |
| Cable cross section stranded conductor | 0.14 mm² – 6 mm² | 26 AWG – 10 AWG |
| Max. outer diameter | 9 mm | 0.35″ |
| Cable length | 35 mm – 999 m | 1.38″ – 3,278′ |
| Max. Cable transport speed | 220 m/min. | 722 ft/min. |
| Max. Stripping length full stripping | 1st side: 40 mm – 120 mm | 1.57″ – 4.72″ 2nd side: 0 mm – 30 mm | 0″ – 1.18″ |
| USB/Ethernet | Yes |
| Electrical connection | 230V; 50 Hz or with transformer |
| Pneumatic connection | 6 bar |
| Dimensions (L x W x H) | 390 mm x 600 mm x 370 mm 390 mm x 600 mm x 540 mm (with PC on top) |
| Weight | 28 kg |
| Rotary cutting unit | – |
| Screen | 12″ touchscreen; tiltable |
