Efficient processing of wire end sleeves of 4, 6 and 10 mm²

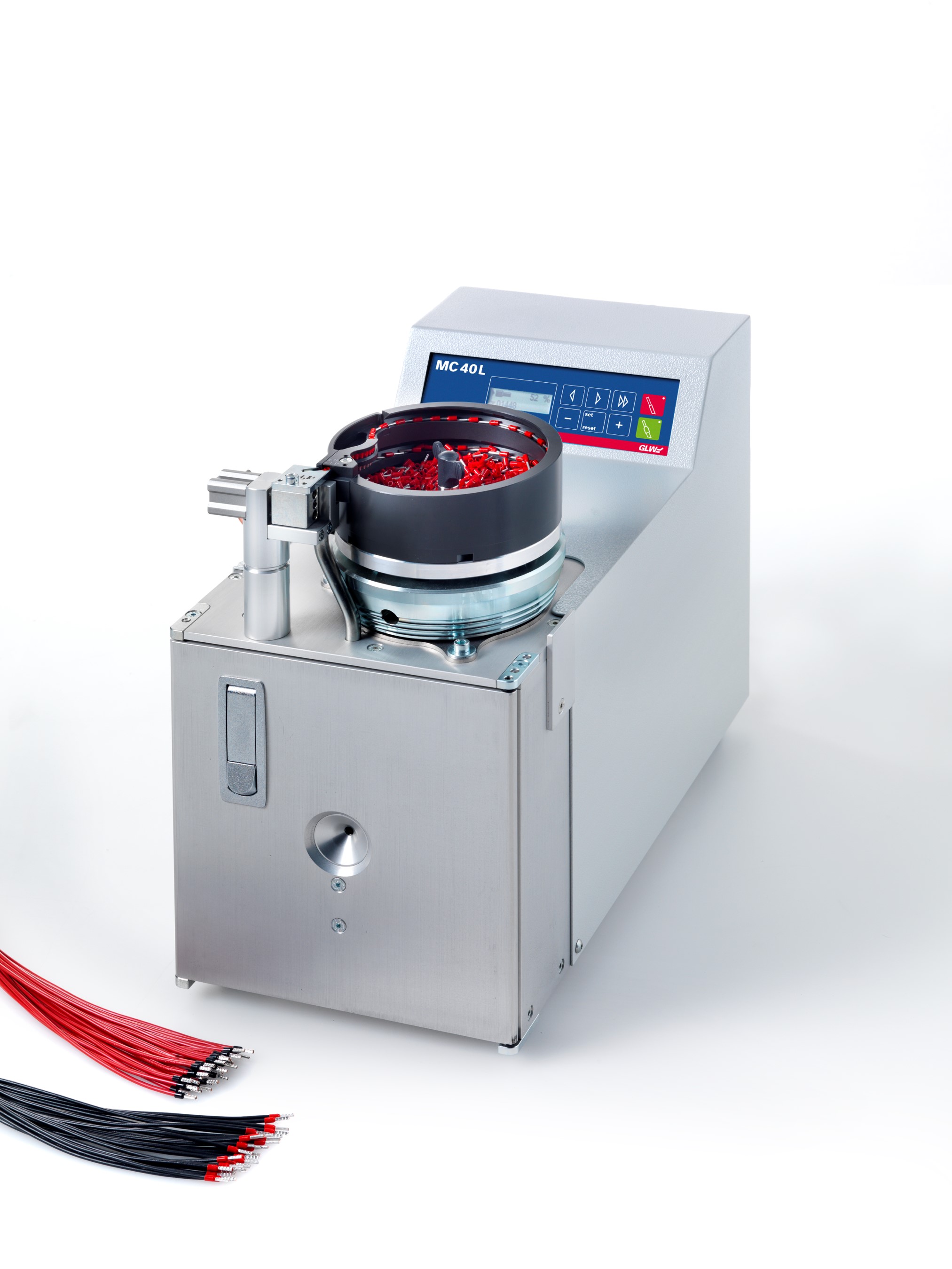

The MC 40 processes loose wire end sleeves with plastic collars (cross-section 4, 6 and 10 mm²).
It features a high level of reliability and flexibility. The use of premium components in combination with a robust construction ensures reliable operation.

Cross-sections can be changed with simple hand movements. One tool set is available for each cross-section.

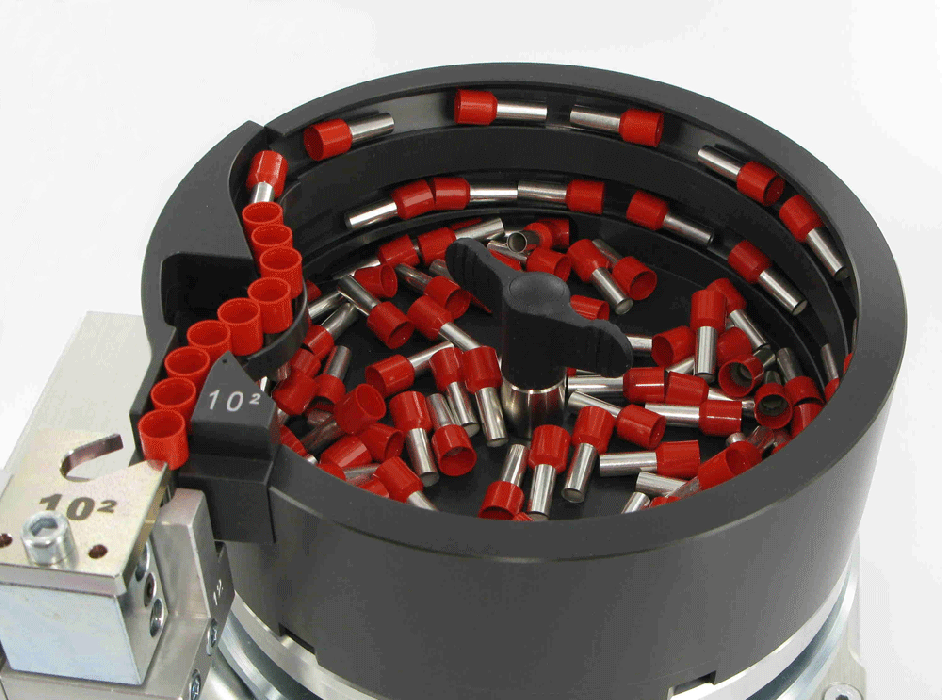

The appropriate conveyor bowl is put in place, the cross-section-specific receptacle is snapped in.

• High level of reliability
• Stripping and crimping in one work step
• Quick change of cross-sections with few hand movements
• Components are maintenance and wear-free

Areas of use

Cable assembly
Switch cabinet construction
Accessories

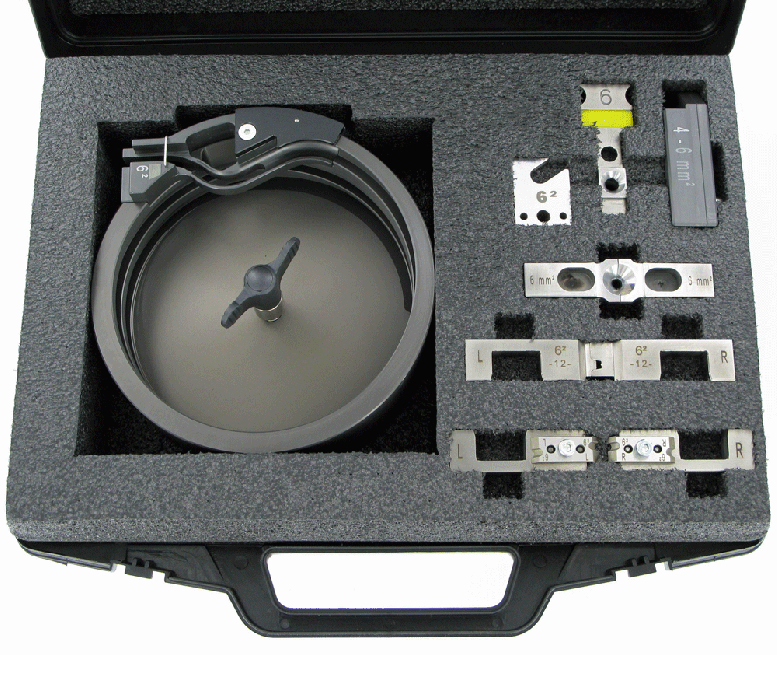

Not included in machine, Tool set with case for a cross-section of

Pn 006630 4mm² - 10mm and 4mm² - 12mm
Pn 006813 6mm² - 12mm
Pn 006814 10 mm² - 12mm

For smaller cross sections ( 0.25 - 2.5 mm² / AWG 24 - 14 )
we suggest the Stripper and Crimper MC 40-1 .
