| Wire cross section | 0 - 4mm² |
| Strip lenght | 2 - 11mm (1-11 optional) |
| Wire lenght min | 20mm (<20 (optional) |
| Cable outer diameter max | 4.5mm |
| Installing applicator | End feed - Side feed left to right |
| Cycle time | <0.8s |
| N° recepts saving | 200 |
| Weight | 65Kg |

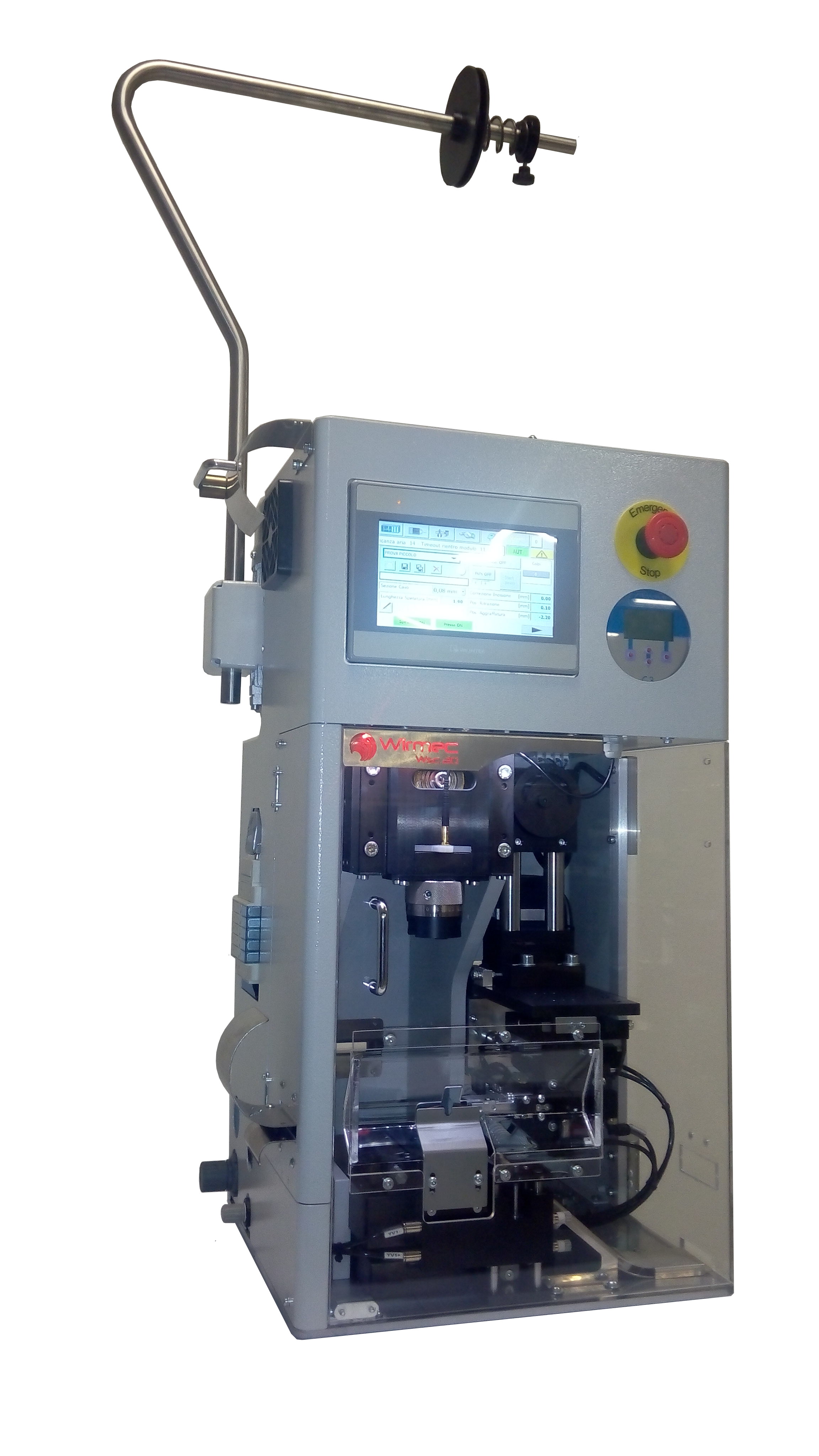

WSC21 Electronic stripper crimper 90°, 20kN
Semi-automatic programable strip & crimp machine with touch panel
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: WIR_WSC21
WSC21
Stripping crimping machine with electronic control to run on any type of miniapplicator.

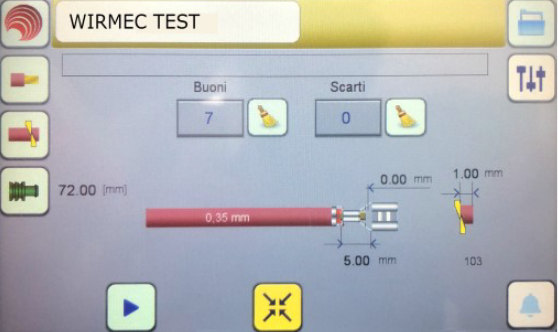

The setting of stripper crimper is fast and easy with the touch-screen operator panel that allows you to set parameters and save
them with custom code.
The WSC 21 allows rapid changes in processing with the ability to store many different codes.
Key features
• CE norms compliance
• Programmable wire cross section and stripping lenght
• Settings processing on recipe
• Vacuum system for scraps
• Integrated and programmable terminal ejector
• Way back system
• Double zero cut
• Stripping speed adjustable
• Fast replacement of strip blade
• Working area lighted
• Stripper module height adjustable
• Fast replacement of strip blade
• Wire funnel Ø1,8 and Ø4mm
• Monitor touch wide screen 7
• Vision interface in local language
• Wi-Fi, Ethernet and USB connection
• Use and maintenance manual

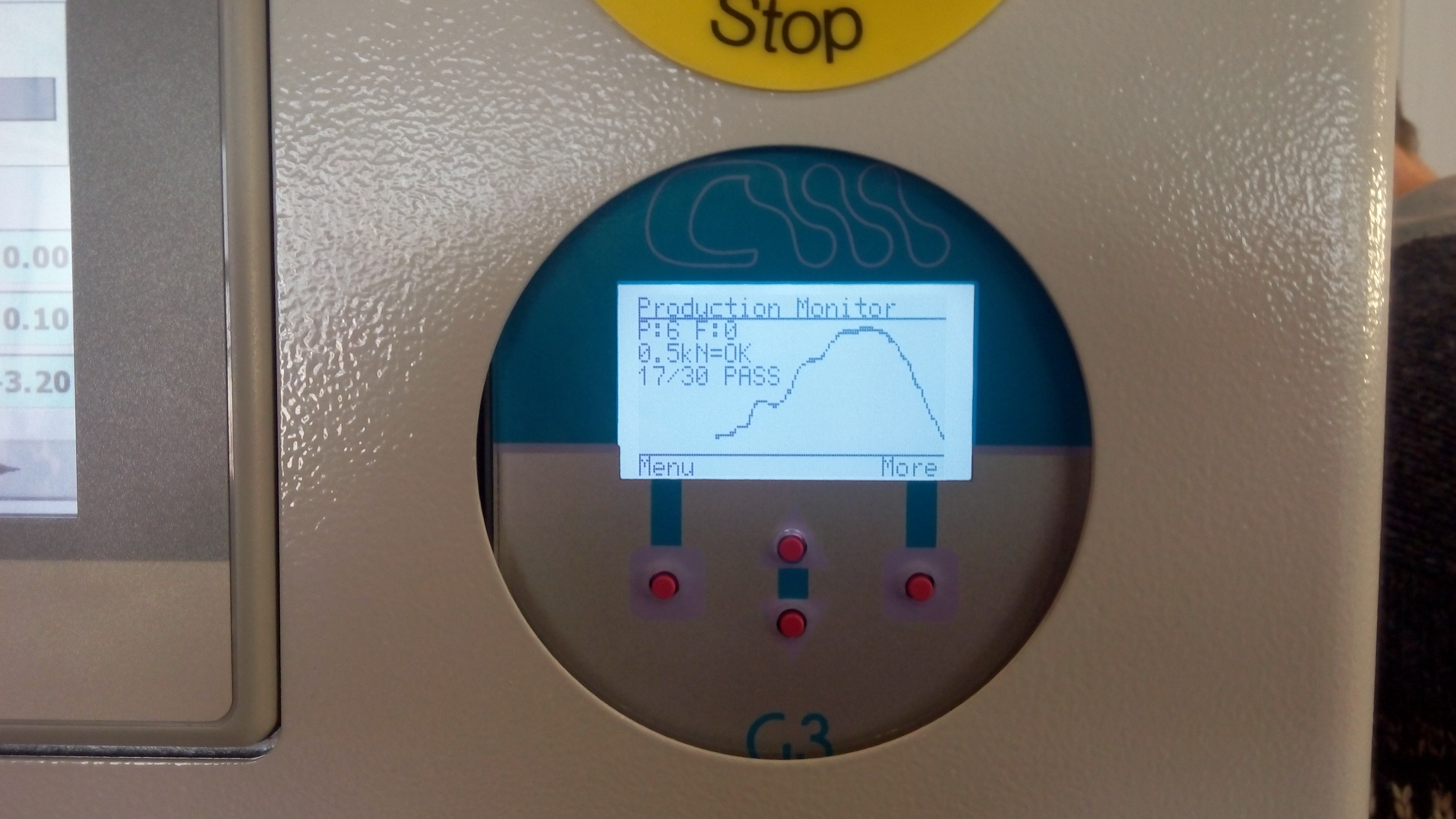

Crimp force monitoring (CFM)
Electronic crimp height adjustment
Cut bad crimp
Paper wind device
Currier strip chopper
Wire crimp sequence
Wire detection color
