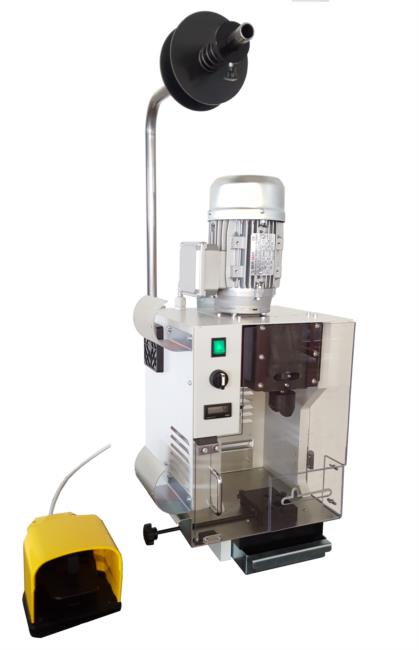

W15 Wirmec

W15 Wirmec

Electronic Benchpress 90°, 20kN
Bench top press for terminals up to 6mm2, 90 degree model
Read more...
(Optional)

In stock: 1

  • E-mail us, we reply swiftly!
  • Invoice
  • Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri

Description

Article no.: WIR_W15

W15 Electronic Benchpress 90°, 20kN

Stable electronic press for you with a sense for accuracy.
Large side-mounted plexiglass provides full insight into the tools.
Standard equipped with counter and with LED-light to facilitate the correct cable control.(option)
Equipped with joystick too move press in slowmotion both forward and backward.

Key features:

  • Inverter controlled;
  • Resettable digital counter;
  • Jog lever for ram slow motion;
  • Scraps box;
  • Swivel terminals reel arm;
  • CE compliance;
  • CFM crimp force monitoring with calibration certificate (optional);
  • Programmable cycle time air kit (optional)
  • Led lighting (optional);
  • Double terminals reel arm (optional);

Crimp force 20 kN
Powersupply 230 V Single phase
Stroke 40 mm
Shrink hight adjustment 0.025 mm
Wire cross section max 6 mm²
Shrinkingpower 15 kN
Terminal thickness  max 0,6mm(at 6mm²)
Dimensions H1020 x L390 x D350 mm
Weight 35kg
