| Wire cross section | 0,22 - 16mm² |
| Wire length crimp both side | 60mm (55mm optional) |
| Lenght accuracy | ±(0.2% +1mm) |
| Speed feeder | 8,5 m/s |
| Power supply | 400V 50/60Hz 10kVA |
| Air supply | 6-7bar |
| Weight | 1300kg |
| Noise level | 75dB |
| Dimensions: | W3800xD1600xH2000mm |

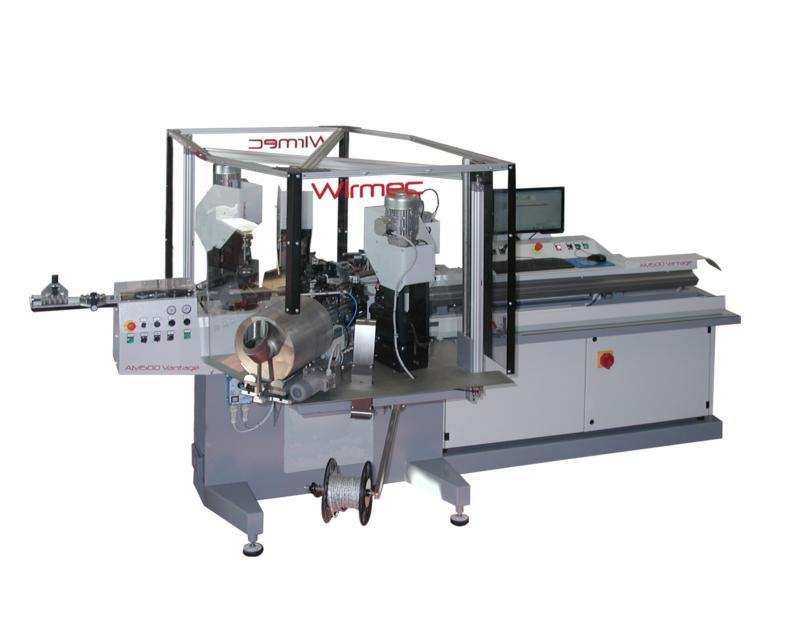

Wirmec - AM500 HF
AM500hf 0,22 - 16mm²
Strip, cut & crimp up to 4 stations
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: WIR_AM500HF
Cut strip and crimping machine AM500hf
- CE norms compliance
- Belt drive wire feeder
- Programmable cutting head
- Adjustable straighten unit
- Wire guides Ø1,7, Ø2, Ø2,5, Ø3, Ø4-Ø5,5-Ø7;
- Maintenance kit
- Safety guard
- Scraps box
- Operator shelf with storage and clipboard
- PC with monitor 21”
- Standard Vision interface in english
- Wi-Fi, Ethernet and USB connection
- Steel frame in Italian style
- Instruction and operator manuals in english
The cut strip and crimping machine AM500hf, can be equipped up to four processing stations.
It is robust, reliable and ergonomic .
The Wirmec Vision operator interface facilitates the machine setup and allows easy and fast programming machine also from remote.
