| Cross section | 013 - 6mm² |
| Wire length only on one side | 42mm crimping one side - 55mm crimping both side - 30mm option |
| Wire speed feeding | 8.5m\s |
| Power supply | 400V 50/60Hz 10kVA |
| Air supply | 6-7bar |
| Weight | 1300Kg |
| Dimensions WxDxH | 3400x1400x2000mm |
| Noise level | 77dB |
Wirmec - AM460 Sintesi
Strip, cut & crimp.
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: WIR_AM460S
Wirmec AM460 Cut, strip and terminate machine
Fully automatic machine for high productivity and various
cable types. It is the recommended machine for customers
processing traditional cable harnesses. It is supplied in
standard version rollers wire feeder and by an additional kit
can be converted to belts.
Key features
- Highly ergonomic and easy to maintain;

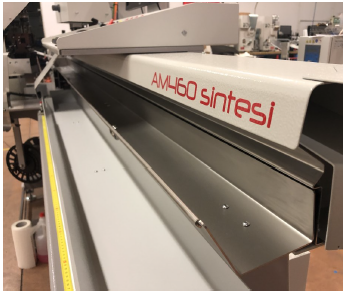

- Deposit wire with conveyor belot of 2m;

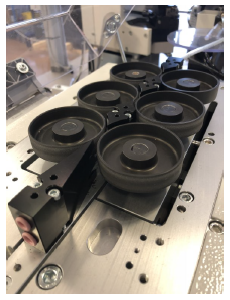

- Four speeding rollers with belts drive kit of conversion;
- Simple user interface Vision and ample opportunity to save parameters;
- Remote control panel for settings parameters on side 1;
Cut strip and terminate machine at five stations up to three presses.
Sintesi rappresentes the technologies conteined and derived from higher
range machines, keeping the ergonomics characteristics.
