| Cross section | AWG34 - 16 |
| Wire lenght | 10mm strip both sides |
| Wire lenght | 15mm crimp one side crimp one side |
| Speed feeder | 3m/s |
| Power supply | 400V 50/60Hz 10kVA |
| Air supply | 6 - 7bar |
| Weight | 700Kg |
| Noise level | 77dB |
| Dimensions | L1900 x W900 x H1500mm |
Wirmec - AM210 Futura
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: WIR_AM210

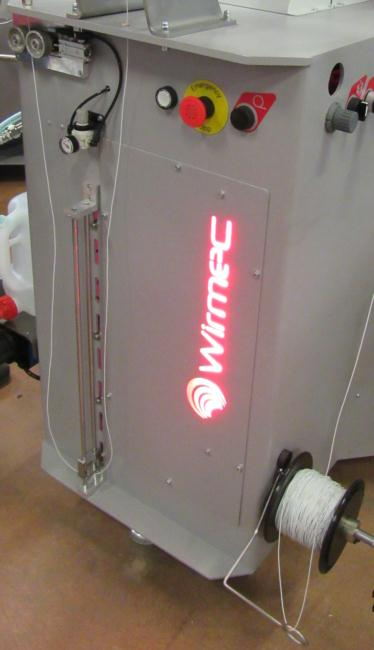

Wirmec - AM210 Futura

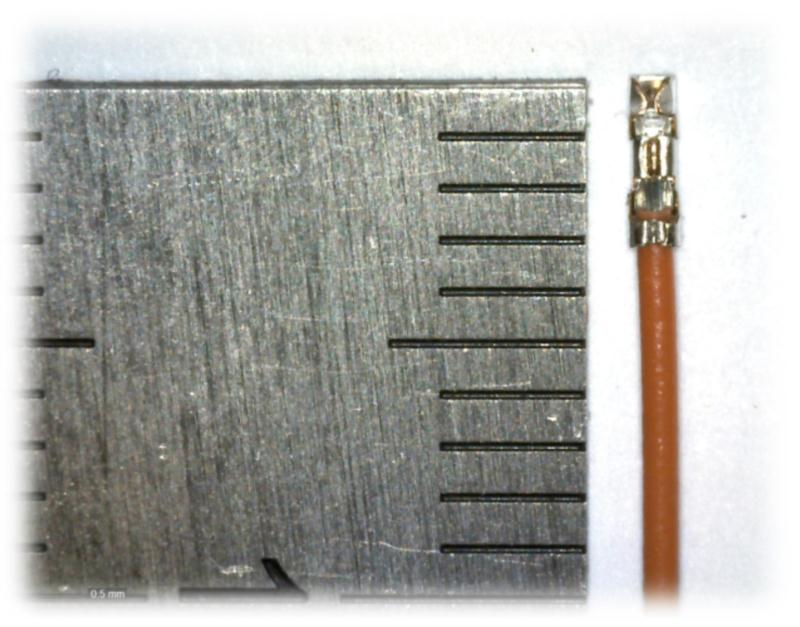

Crimp to crimp machine, can be equipped up to 3 stations. It is suitable for processing very thin cables.
The AM210 futura, is the latest expression of techno logy of automatic machine, combined with Italian design. It has been designed for processing very thin and short wires. It is equipped with integrated motorized prefeeder with motorized shaft and traction rollers.
It complies with CE norms.
