| Cable outer dia when cutting-to-length | max. 15 mm | 0.6″ |
| Cable cross section when crimping | max. 2.5 mm (Option: max. 4 mm) | max. 14 AWG (Option: max. 12 AWG) |
| cable cross section (depending on material) | 0.5 mm² to 35 mm² | 21 AWG to 2 AWG |
| Cable length min. | 250 mm | 9.8″ |
| Cable length max. | 999 mm | 3’3″ |
| Feeding speed max. | 120 m/min. | 394 ft./min. |
| Stripping length max. 1st side / 2nd side | 220 mm | 8.7″ / 170 mm | 6.7″ |
| Electrical connection | 230 V; 50/60 Hz; 3.1 A or with transformator |
| Compressed air connection | 6 bar | 87 PSI |
| Dimensions (L x W x H) | 1,750 mm x 1,100 mm x 1,520 mm | 68″ x 43″ x 59″ |
Metzner Triathlon
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: MET_TRIATHLON
Metzner TRIATHLON
Electrical cabinets contain the electrical and electronic components of a process engineering system, a machine tool, or production equipment that is not directly located in the machine. They are manufactured by special switch cabinet builders or by the machine manufacturers themselves. To save costs, there are automation solutions that are not only worthwhile for large production series but are also suitable for the more efficient and economical production of individual and small series. Metzner offers a unique and comprehensive system solution to reduce your expenses in switchgear construction. Depending on your requirements, different stripping and crimping machines are available, which differ in terms of design, performance and degree of automation.
Metzner Triathlon Series
- For precise cutting to length and one- or two-sided stripping at the exact position
- For crimping the ferrules (single- and double-sided)
- For individual labelling of strands with different printing methods
- for sorting the strands according to assembly groups

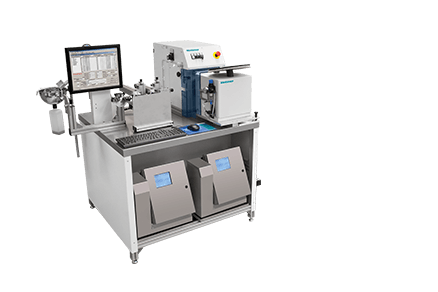

Metzner Triathlon 2000
Inexpensive entry-level model for cutting to length and stripping strands with a cross section from 0.14 to 6 mm² and crimping ferrules of up to
4 mm² as well as for automatic individual wire marking.

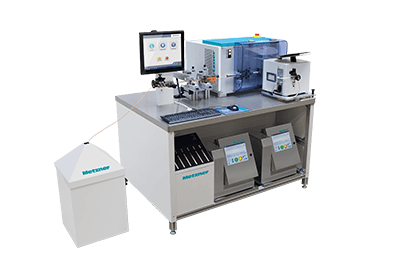

Metzner Triathlon 3000
Enables crimping of ferrules of up to 4 mm² cross-section, cable processing of up
to 35 mm² and 15 mm diameter as well as automatic labelling of all cable wires with inkjet or thermal transfer printing.

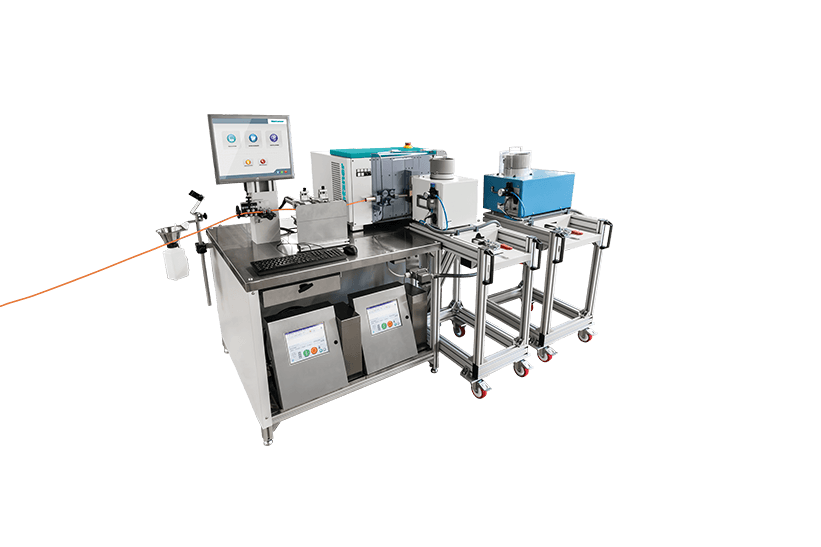

Metzner Triathlon 3000+
The most flexible model with modular crimping unit, which allows automatic crimping of up to
6 mm² wire cross section? for quick expansion of processing possibilities.
Metzner Triathlon Soft®
Software compatible with all Triathlon models for creating digital switch cabinet layouts with automatic length calculation for all strands, cable ducts and top-hat rails.
