EC 65 Die set for Wire end sleeves EC E0560SQ
0,14 - 6 mm² TWIN 2 x 0,5 - 2 x 2,5 mm²
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: GLW_ECE0560SQ

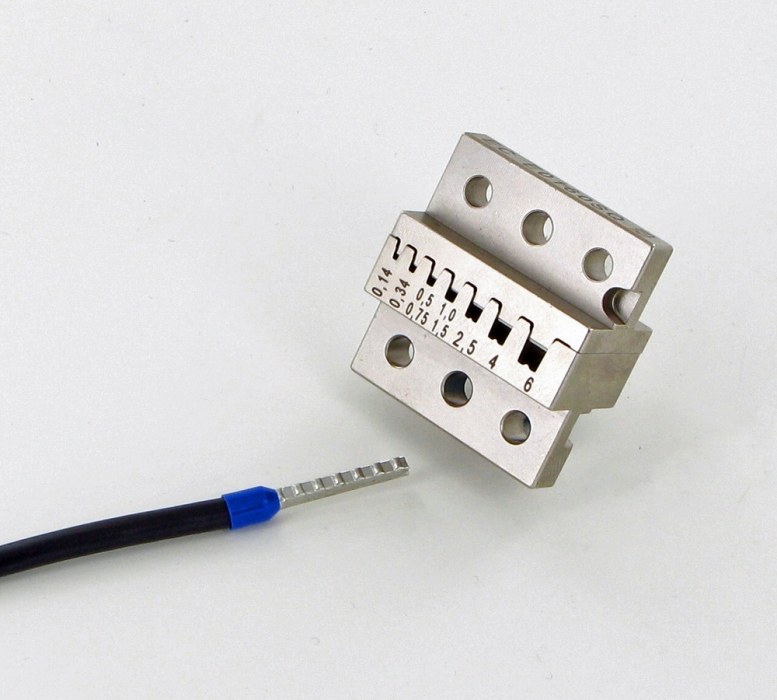

EC 65 die-sets for Wire end sleeves EC E0560SQ
For high quality crimping of terminals the choice of the die-set is essential. All die-sets are made of high quality materials combined with a very accurate production.
Square crimp
Die for insulated wire end sleeves 0.14 - 6 mm² and TWIN end sleeves 0.5 - 4 mm².
Maximum length of wire end sleeve: 18 mm

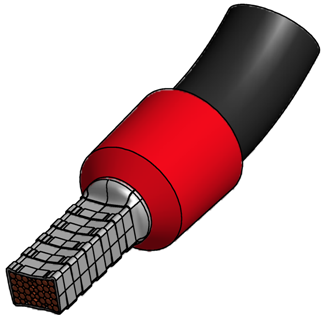

The wire end sleeves will be crimped is a square shape. For a trapeziod shape we recommend
die-set EC E0160
.
Accessories
Suitable protection cover: EC PC05
