EC 65 Die set for Turned contacts EC D0140
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: GLW_006754

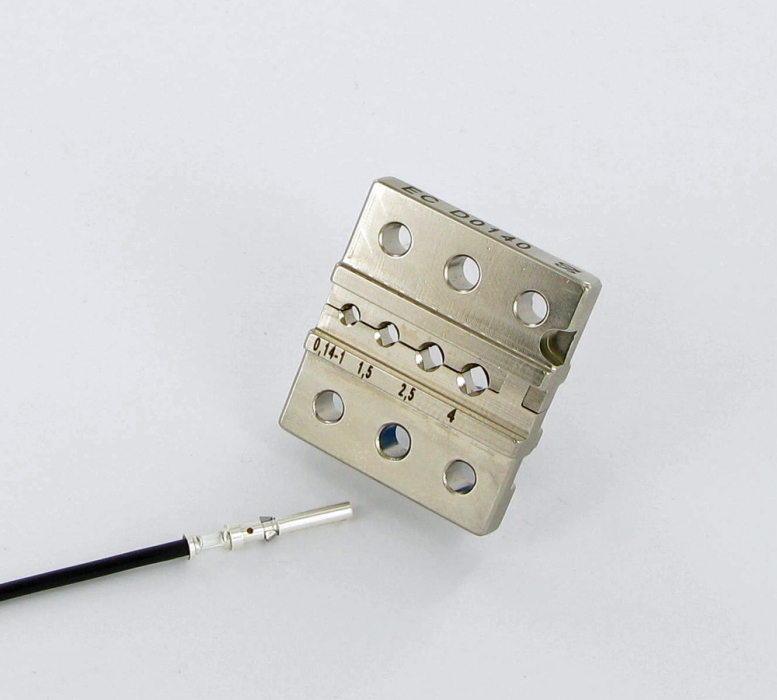

EC 65 die-sets for Turned contacts EC D0140
For high quality crimping of terminals the choice of the die-set is essential. All die-sets are made of high quality materials combined with a very accurate production.

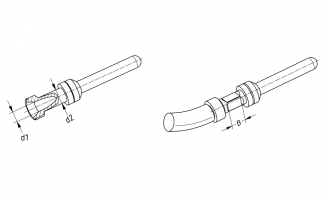

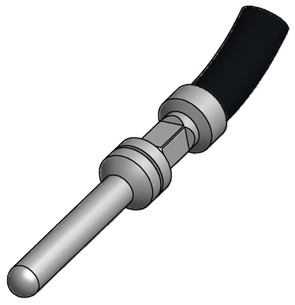

This die-set could be used for turnerd terminals with following dimensions:
Cross section (mm²) | Cavity | Outer diameter d2 (mm) | Inner diameter d1 (mm) |
0,34 | 1 | 2,6 | 0,9 |
0,5 | 1,05 | ||
0,75 | 1,3 | ||
1 | 1,4 | ||
1,5 | 2 | 3 | 1,7 |
2,5 | 3 | 3,5 | 2,1 |
4 | 4 | 4 | 2,8 |
The die-set is 4 mm wide (B).
Accessories
Suitable protection cover: EC PC06
