Description
Article no.: NIC_CD40-M3

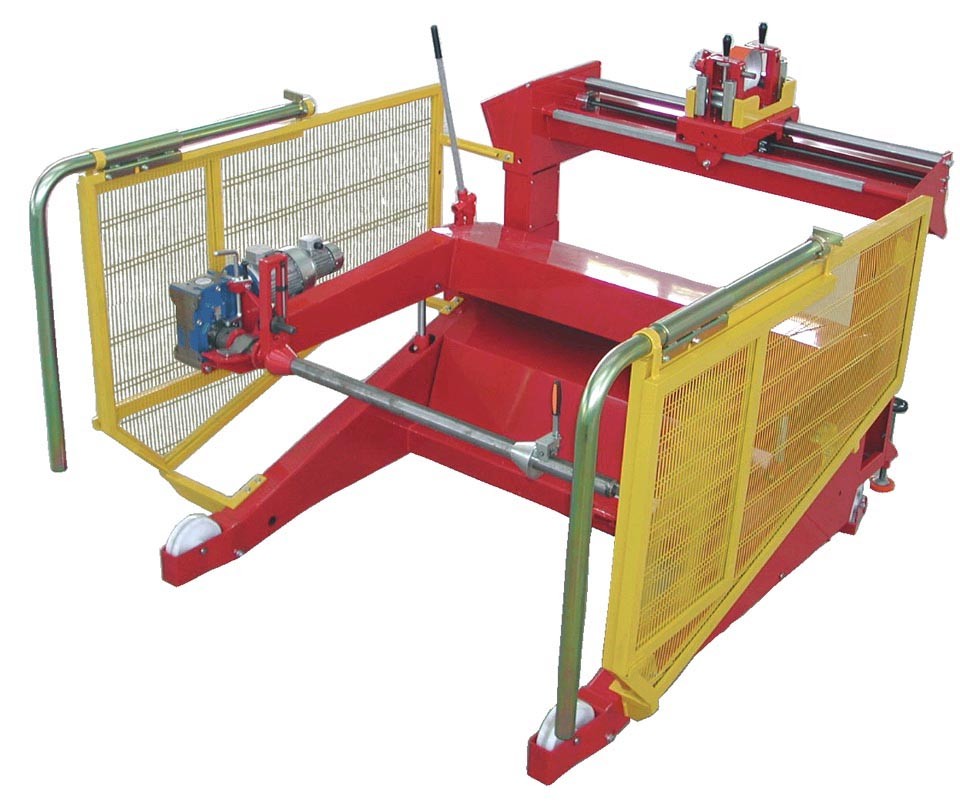

Shaft loading winder for low workloads, Max 6000 kg
- CE-approved safety guards fitted for protection.
- Machine with electro-hydraulic lifting.
- VULKOLLAN wheels (two wheels and two castors).
- Electro-hydraulic parking jacks. (LOW PERFORMANCE)
- Electro-hydraulic jacks and shears. (HIGH PERFORMANCE)
- Rack-operated drum locking shaft.
- AC variable-speed winding unit, continuous speed adjustment 0-50 rpm.
- Supply voltage 380 V three phase (to be confirmed at order stage)
| LOW PERFORMANCE | HIGH PERFORMANCE | |
|---|---|---|
| Machine height (mm) | 1800 mm | |
| Machine width (mm) | 2600 mm | |
| Machine length (mm) | 3323 mm | |
| Length with guards on (mm) | 4163 mm | |
| Empty weight (kg) | 750 kg | |
| Drums - maximum diameter (mm) | 2600 mm | |
| Drums - minimum diameter (mm) | 800 mm | |
| Drums - Maximum width (mm) | 1350 mm | |
| Drums - Minimum width (mm) | 300 mm | |
| Drums- Max. weight capacity (kg) | 6000 kg | |
| Total power (kW) | 6 KW | |
| Torque | 1470 nm | |
| Machine movement speed | 4 km/h | |
| Min-Max rpm at drum (min) | 0-50 | |
