| User Interface | 10.4” (264 mm) Color LCD, Touch Screen, Icon based - Graphical User Interface (GUI) |
| Printing | Printhead Orientation - Omnidirectional |
| Lines of Print | 1-2 Lines, 16 pixel |
| Print Fonts | 5, 7, 9, 12, 16 |
| Adjustable Print Height | .06" (1.5 mm) - .75" (19 mm) |
| Print Speed | Up to 600 Feet/Minute (190 M/minute) |
| Ink Throw Distance | .5" (12 mm) - 2" (50 mm) |
| Machine Interface | RS232 |
| Inputs | 1 Photocell, 1 Shaft Encoder |
| Outputs | 4 Alarm Outputs |
| SmartFilter™ Life | 2,000 hours |
| Operating Environment | Temperature: 32° - 122° F (0° - 50° C), % Relative Humidity: 10 - 90% (non condensing) |
| Electrical Requirements | Auto Ranging: 100 - 240 VAC (3 Amp), Frequency: 50 - 60 Hz, Power Consumption: 50 W |
| Compliance | CE Certified, RoHS Compliant |
82 CIJ
DESIGNED FOR ADVANCED
BASIC APPLICATIONS
BASIC APPLICATIONS
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: 82 CIJ
82 CIJ
Designed for basic applications printing 1 or 2 lines of text, barcodes and graphics. Typical applications mark and code 1 or 2 shifts per day,
5 days per week – 2,000 to 4,000 hour annual operation.

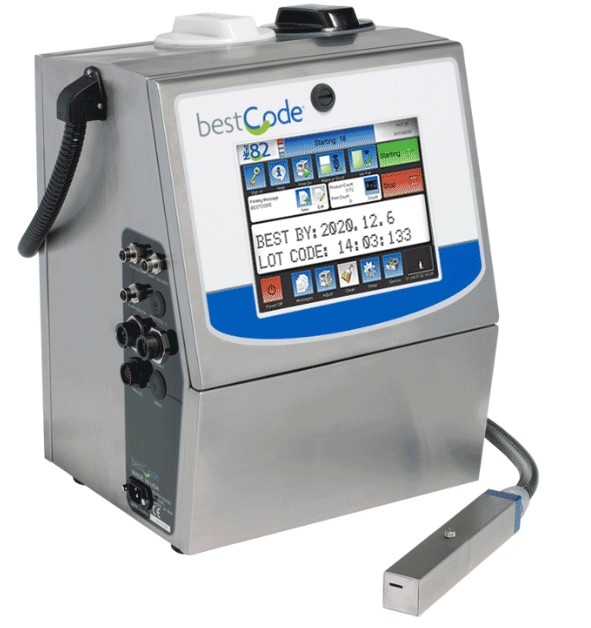

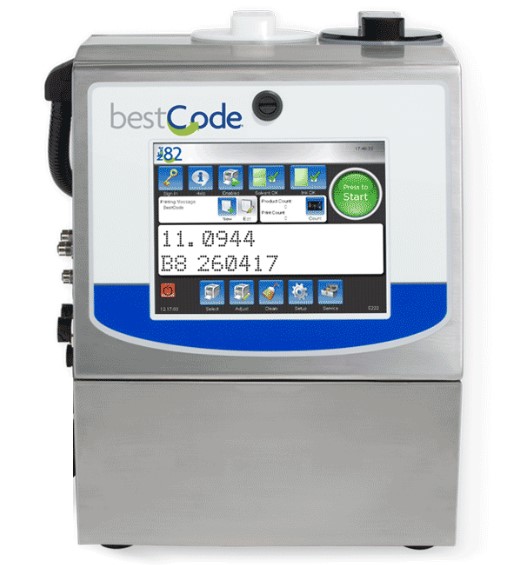

The BestCode Model 82 is targeted at basic entry level applications, printing 1 or 2 lines of text, barcodes or graphics. A complete range of dye and soft pigmented inks available for a wide range of applications.
Typical applications mark and code one to two shifts per day, five days per week, averaging 2,000 — 4,000 hour annual operation. Utilize integrated RS232 and programmable inputs\outputs for remote control and communications
Systems are simplified to allow anyone to operate, minimizing operator touches.
