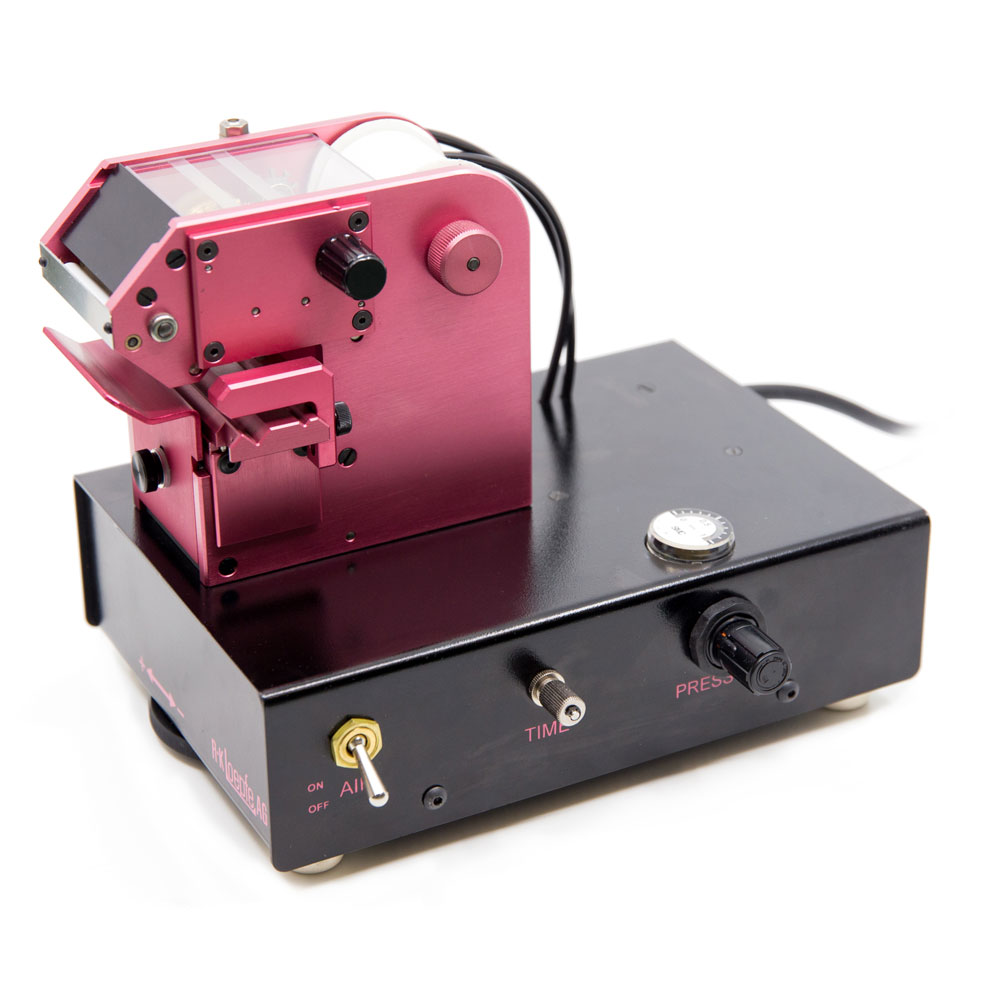

Hot marking unit TP15 - TP10
Hot marking unit TP15 - TP10
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: LOE_TP15-TP10
| Power supply | 230 VAC, 50-60Hz, max. 33VA |
| Compressed air supply | 0,7 MPa |
| Working range outer-Ø | 1 mm cable Ø minimum |
| Working range outer-Ø | 12 mm cable Ø maximum |
| Signs per character wheel | as desired |
| Letter height 1.2mm – 2.0mm | max. 15 signs |
| Letter height 2.5mm – 4.0mm | max. 10 signs |
| Typeface dimensions (mm) Concave, horizontal | 1.2, 1.5, 1.6, 1.8, 1.7, 2.0, 2.1, 2.3, 2.5, 3.0, 4.0 mm |
| Typeface dimensions (mm) Concave, vertical | 1.2 and 1.6mm |
| Typeface dimensions (mm) Flat, horizontal | 2.0 and 3.0mm |
| Standard typefaces | A – Z 0 – 9 |
| Marking foil | several types and colors |
| Foil consumption | min. 12 000 max. 20 000 Marks per roll of foil |
| Dimensions | 246 x 183 x 184 mm |
| Weight Printing Unit | 3400 kg |
| Weight Transformer | 1900 kg |
| Noise level | < 70 dB (A) |
