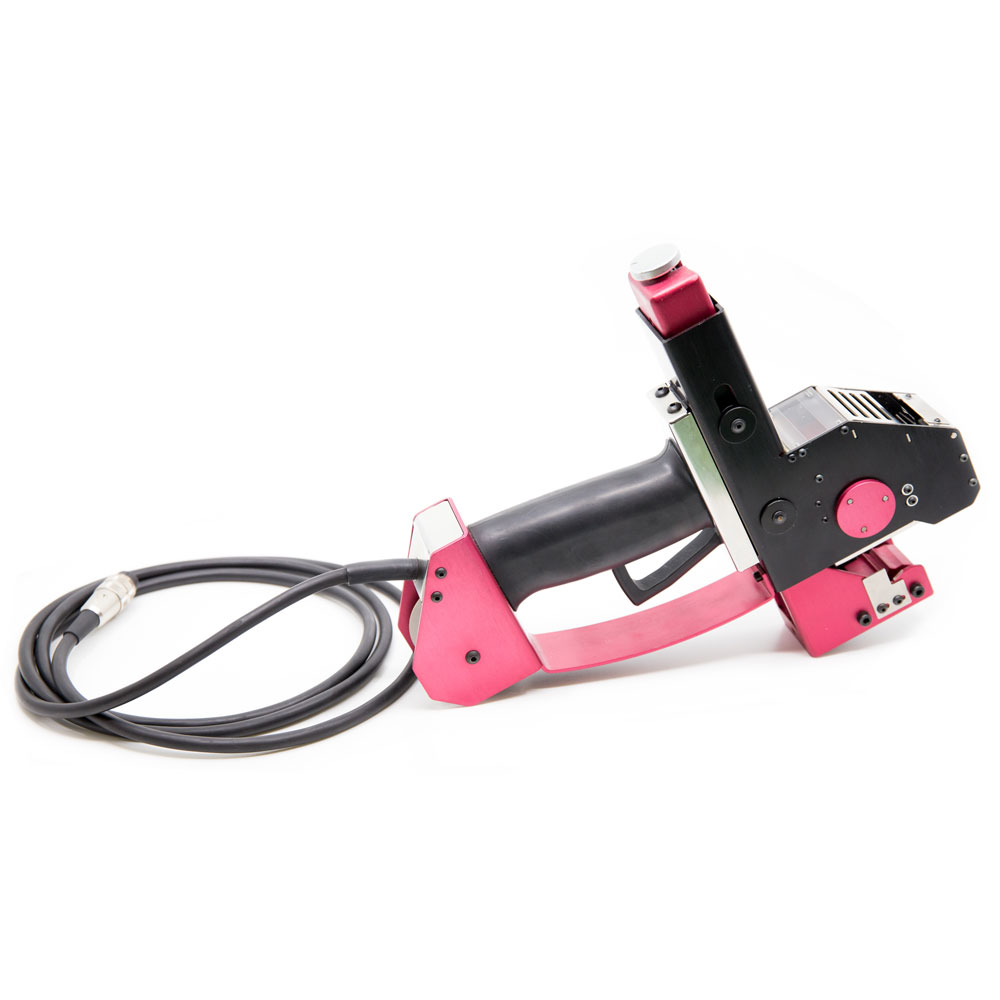

Hot marking unit HZ2, Handheld
Hot marking unit HZ2, Handheld
- E-mail us, we reply swiftly!
- Invoice
- Questions? Call us +46 708-14 76 00 kl 07.30-16:30 (UTC +1) Mon-Fri
Description
Article no.: LOE_HZ2
| Power supply | 230 VAC, 50-60 Hz, max. 33 VA or 120 VAC, 50-60 Hz, max. 33 VA |
| Working range of cable outer-Ø | 1,5 mm cable Ø minimum |
| Working range of cable outer-Ø | 25 mm cable Ø maximum |
| Number of character wheels Letter height 1.5 – 2.3 mm | max. 10 character wheels<< td> |
| Number of character wheels Letter height 2.5 – 4.0 mm | max. 7 character wheels |
| Signs per character wheel, Standard - wheels | Character height 1.6 up to 2.3 mm = max. 28 signs |
| Signs per character, Custom made - wheels | Character height 2.5 up to 4.0 mm = max. 20 signs |
| Typeface dimensions (mm) - Standard - wheels | 1.5, 1.6v, 1.6, 1.8, 1.7, 2.0, 2.1, 2.3 |
| Typeface dimensions (mm) - Custom made - wheels | 2.5, 3.0, 4.0 |
| Characters per wheel: | Type 1: A - Z . space Type 2: 0 - 9 . / - + A-M Type 3: 0 - 9 . / - + N-Z Type 4: 0 - 9 . / - + |
| Foil types | Several types and colors |
| Foil width | 25 mm |
| Foil consumption | 2.5 - 4.0 mm |
| Dimensions | 230 x 70 x 290 mm |
| Weight Pliers | 1400 kg |
| Weight Transformer | 1900 kg |
