Beskrivning

Art.nr: DYN_NXPro+

NX Pro+

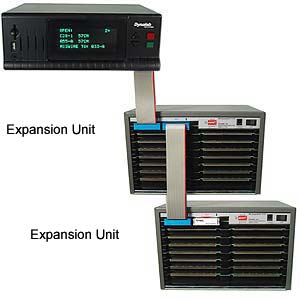

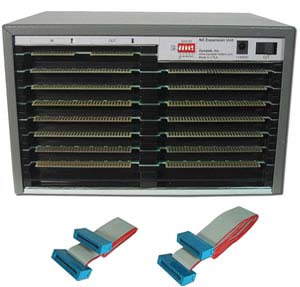

The Dynalab NX Pro+ Tester is modular and designed for applications requiring up to 32,768 test points. It shares the same front-end as the NX Pro Tester, but uses Expansion Units to house test point cards. Each unit includes a 2' and 6' ribbon cable for flexible setup, and one NX Terminator. Each Expansion Unit supports up to 8 test point cards (1024 points), and up to 32 units can be connected for a total of 32,768 test points.

The NX System allows each program to run multiple tests, display custom messages or sounds, and analyze results to determine next actions. The NX Pro+ has 1.3MB memory for program storage and is compatible with printers, scanners, and all Dynalab NX accessories.

Key Features

  • 80 character, 4 line vacuum fluorescent display
  • Simple 4-button user interface
  • Testing for continuity, shorts, diodes, resistors, capacitors
  • High speed shorts testing
  • Precision resistance measurements
  • Real-time scanning for harness assembly progress
  • Keyed security access and control
  • Built for rough industrial environments
  • 2 serial ports for printers and scanners
  • Standalone operation
  • Uses high capacity memory card
  • Expandable architecture – up to 32,768 test points

 Connections
 Continuity:
 .1 Ω - 10 Ω (±0.1Ω)
 10 Ω - 500KΩ (±1%)
 00KΩ - 2MΩ (±5%)
 Shorts:1KΩ - 2MΩ (±20%)
 Components
 Resistors:
 0.1 Ω - 10 Ω (±0.1Ω)
 10 Ω - 500KΩ (±1%)
 500KΩ - 2MΩ (±5%)
 Diodes: Checks for proper orientation
 Capacitors: 100pF - 100,000uF (±2% to ±20%, ±10pF based on type)

 Advanced Modes
 4-Wire (Kelvin) Mode: 0.005 Ω - 100 Ω (±1%, ±0.005 Ω)
 Relay Testing: Capable of active relay testing

 Test Parameters
 Method: Proprietary switching via NX Editor data
 Voltage: Max 14VDC (auto-defined)
 Current: Max 5mA DC (auto-defined)
 Speed: 1 sec/1024 points (continuity), 3 sec/1024 points (continuity + shorts)

  Display & Feedback: 4-line x 20-character with connector, wire name, and color
  Audible Tones: Programmable for errors and events
 Program Storage: 150–250 programs under 256 points, 3.3MB internal memory
 Test Point Capacity: 128 – 32,768 points (128-point increments)
 Control Port: Optional module (2 outputs, 1 input)
 Serial Ports: 2 RS-232 standard, +2 optional
 Network Port: Optional 100 Mbps via Communication Board
 Test Point Interface: 64-pin card edge connector

  Power & Environment
 Input Power: 100–240VAC, 50–60Hz, 30W max → 15VDC output
 Operating Temp: 32–122°F (0–50°C)
 Humidity: Up to 90% non-condensing

 Dimensions & Weight
 NX Pro: 10.7” x 7.5” x 4” (27.2cm x 19cm x 9.7cm), 6.6 lbs (3 Kg)
 Expansion Unit: 9.5” x 6.4” x 6.3” (24.2cm x 16.3cm x 16cm), 8.0 lbs (3.6 Kg)
