TWISTER

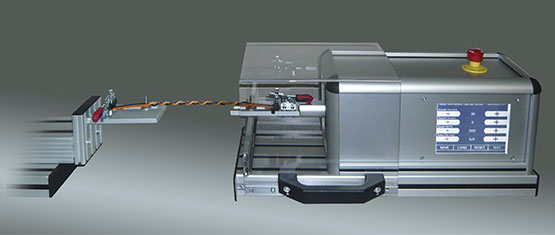

The tool consists of the drive unit with the twisting head and a compensation element. The activation of the LEAD TWIST is done via a button

The LEAD TWIST Cover triggers the process of twisting by moving the cover. As an option, all device versions can be activated by means of a foot switch.

All twisters LEAD TWIST have a generous memory. Up to 999 different production targets can be programed and stored.

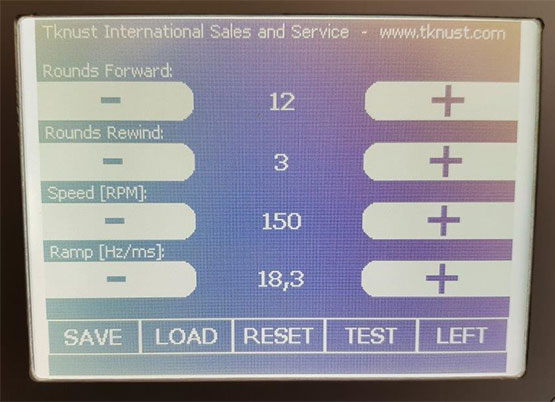

The integrated touch screen allows easy communication with the system:

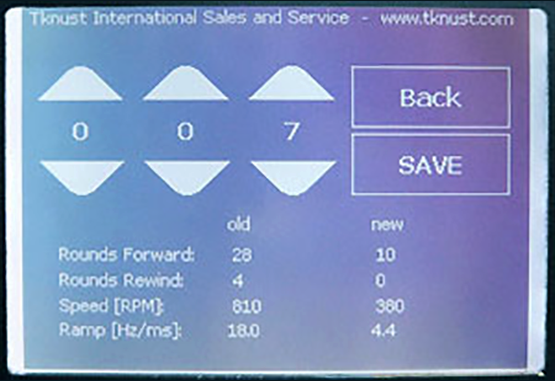

Rounds Forward / Rewind

The number of turns, forward as well as rewind, is freely to choose. To relax the material, it is necessary to use the rewind movement. Choose a value to ?0? means the motor unit is turning only left or right. This may be necessary for "untwisting" of cable ends.

Speed / RPM
The speed of the motor unit is freely to define.

Ramp
The start- and stop-ramp can be changed. This variable is used in combination with he speed setting for optimum torque interpretation. That is a big advantage for best quality of the twisted wire harnesses.

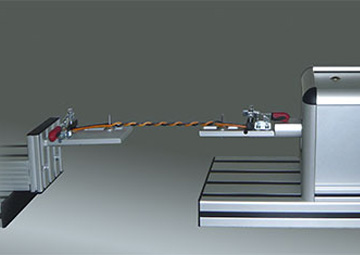

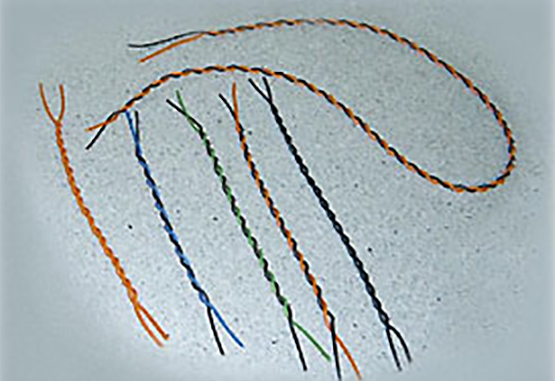

The Length Compensating Element Double LCE2 have a double spring system. This innovation realize a precise pitch length without pitch failures. The uniform counter pressure supports the twisting very evenly. A good dynamic twist of more than two wires is possible. The single wire cross-section can be between 0,25 - 2,50 mm². Harnesses up to 15 m can be processed.
