| Admission height centre | ø 30 mm |
| Admission height overall width | 17 mm |
| Admission width | 150 mm |
| Max. cable cross section | 70 mm² Cu stranded / 10 mm² Cu solid |
| Drive | Servo |
| Resolution length input | 0.1 mm |
| Max. length input | 99,999.9 mm |
| Max. feed | 1.0 m/s |
| Control | PLC |
| Operation | Keypad |
| Language | DE, EN, FR, IT, SP, PORT, NL, CZ, POL, TY |
| Upper belt lift | pneumatic |
| Cut | pneumatic |
| Operating hours, total piece counter | included |
| Stop material end | included |
| Air consumption cut | 3.35 l |
| Electricity supply | 230 V / 50-60 Hz (optional 110 V) |
| Compressed air supply | 6 bar / 87 psi |
| Dimensions WxHxD | 730 x 560 x 430 mm |
| Weight | 50 kg |
Kapmaskin SM15 2 PE
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: ULM_SM15-2PE

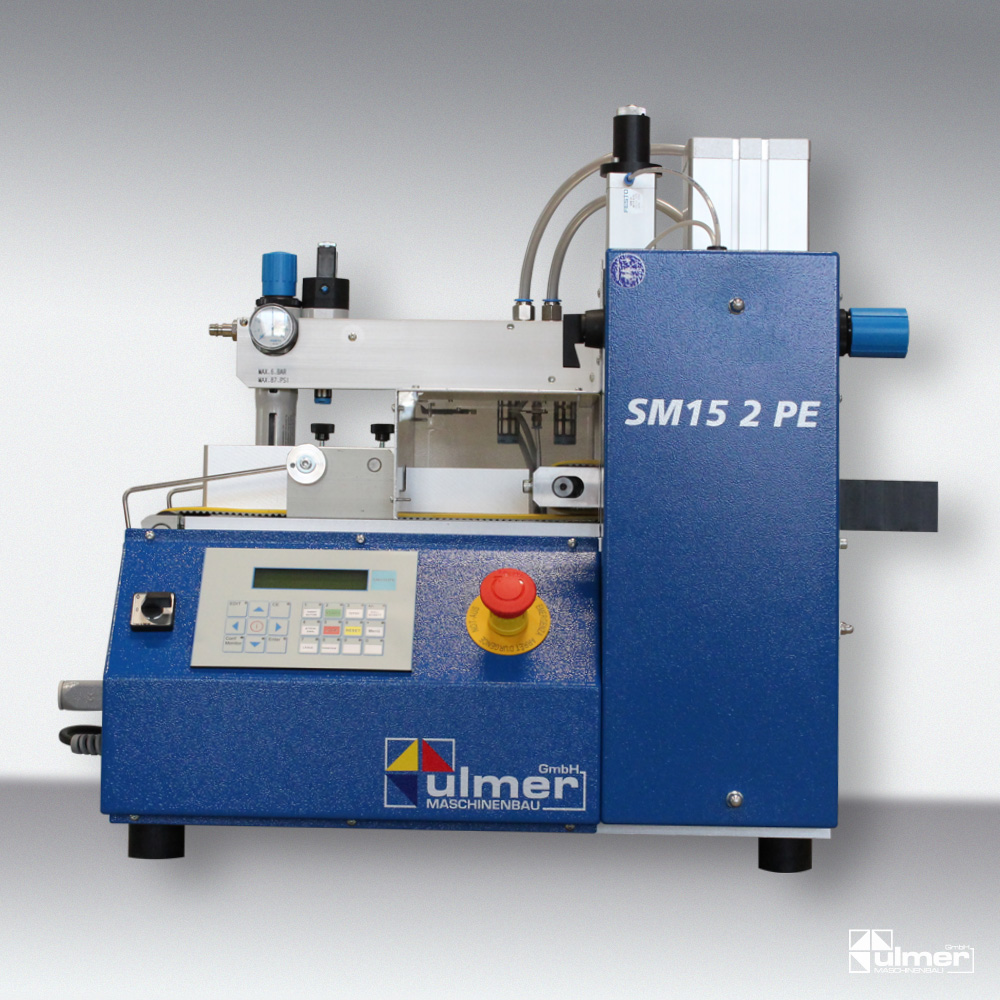

Ulmer SM15 2 PE
The extremely reliable and solid universal cutting machines of the SM15-series has been designed to process a wide range of different materials. By use of the appropriate accessories, materials such as PVC hoses, textile tubes, rubber, cable, ribbon cables, wire, strands, ropes, felt materials, foils, textiles, leather, materials of the medical field and diverse other material can be processed. There are three types of cutting tools available, as there are:

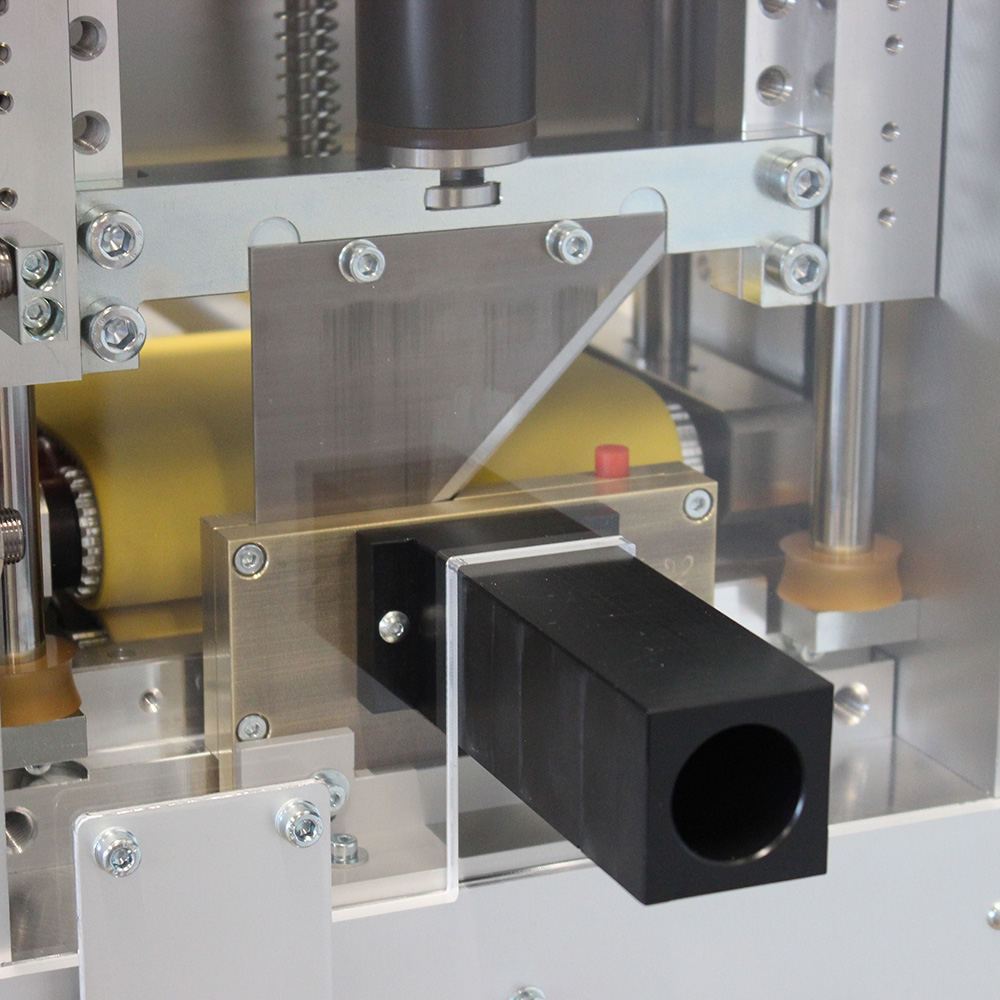

- Punching cut - for hoses, foamed rubber cords and sealing profiles
- Shearing cut - for cables, ribbon cables, strands, shrinkable tubes etc.
- Tube cut for - diverse tube materials
Optionally, there’s a cutting head for the SM15 2PE for mitre cutting available.
In order to process extremely wide materials or for multi-lane-cutting, the SM30– and SM40–series has been designed. With a max. admission width up to 400 mm, the SM30 or SM40 offers an excellent cutting machine technology in the field of foils and multi-lane-cutting.

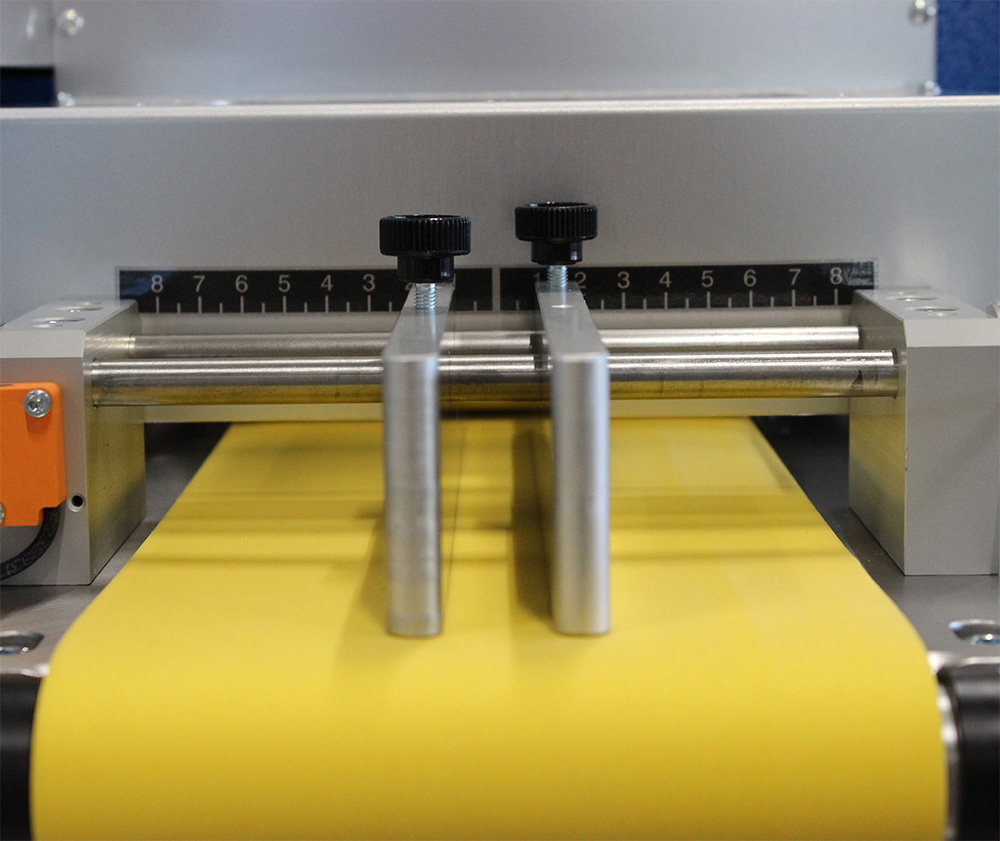

The infeed side guides can be adjusted to the material width. The guides are available in different designs.
