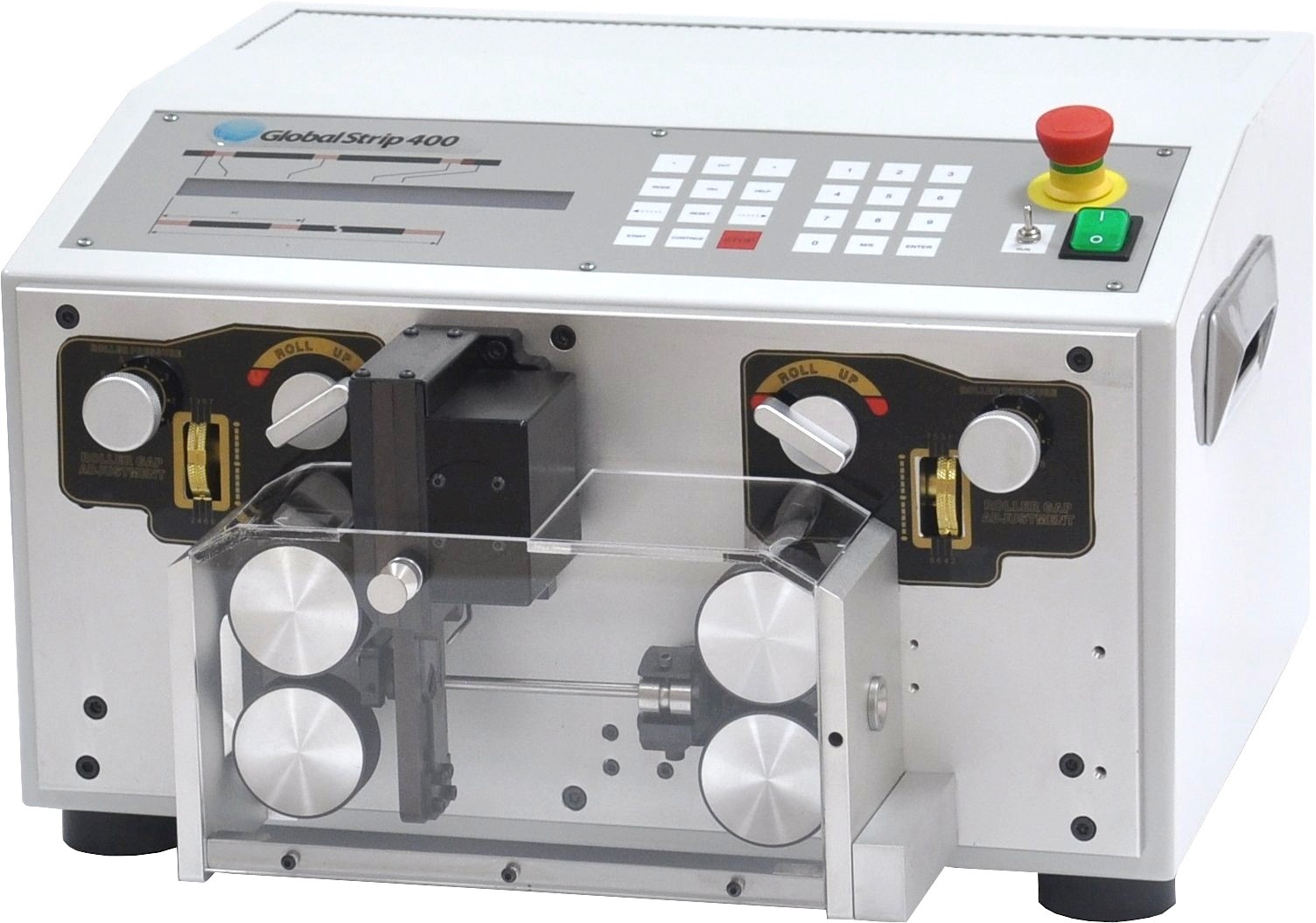

SCC-400 Klipp- & SkalMaskin
Den senaste generationen av Klipp- och skalmaskiner.
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: WIT_SCC-400
The latest microcontroller technology combined with high-quality mechanics guarantees reliable work with maximum productivity.
This compact machine in particular is ideal for cell production and control cabinet construction.
A simple, easy-to-understand user interface that is limited to the most necessary settings facilitates familiarization and reduces training costs for staff to a minimum.
This compact machine in particular is ideal for cell production and control cabinet construction.
A simple, easy-to-understand user interface that is limited to the most necessary settings facilitates familiarization and reduces training costs for staff to a minimum.
- Wide working range from 0.09 mm² to 10mm².
- Integrated memory.
- Integrated cleaning function for stripping residues.
- Noise optimized.
- Optional printer control.
- Option: Knife and guide parts for flat cables.
- Option: Plastic rollers for sensitive cables
| Cable types | Stranded, sheathed cable Flat cable | Max. Diameter 7 mm Max. Width 7 mm |
| Cutting length | 5 mm - 99999 mm | |
| Cross section | 28 - 10 AWG / 0,09 mm² - 10 mm² | |
| Stripping length | 1 - 99 mm (both sides) | |
| Output | 100 pieces / min (at L = 100, both sides 3 mm stripped) | |
| Speed | 9 steps | 2000 mm / s (depending on the cable type) |
| Transport castors | Standard | Steel |
| Knife type | Standard Optional | Carbide - V Radius knife and knife for flat cables |
| Memory | 248 intern | |
| Voltage / power | 230V - 50 Hz / 300W | |
| Dimensions | 430 x 270 x 430 mm | |
| Weight | 37 kg | |
| CE - The SCC-400 complies with the Machinery Directive 2006/42 EG. | ||
- The highest quality, for cutting and stripping wires.
- Highly efficient and easy to operate.
- A wide range of applications.
- Quick and easy to program with the keyboard and LCD display.
- Transports the cables with four wear-resistant pressure rollers.
- A wide range of standard accessories that make it possible to process a large number of different cables.
- Complies with all regulations of current machinery directives.
- Comes with manufacturer's guarantee of 24 months.

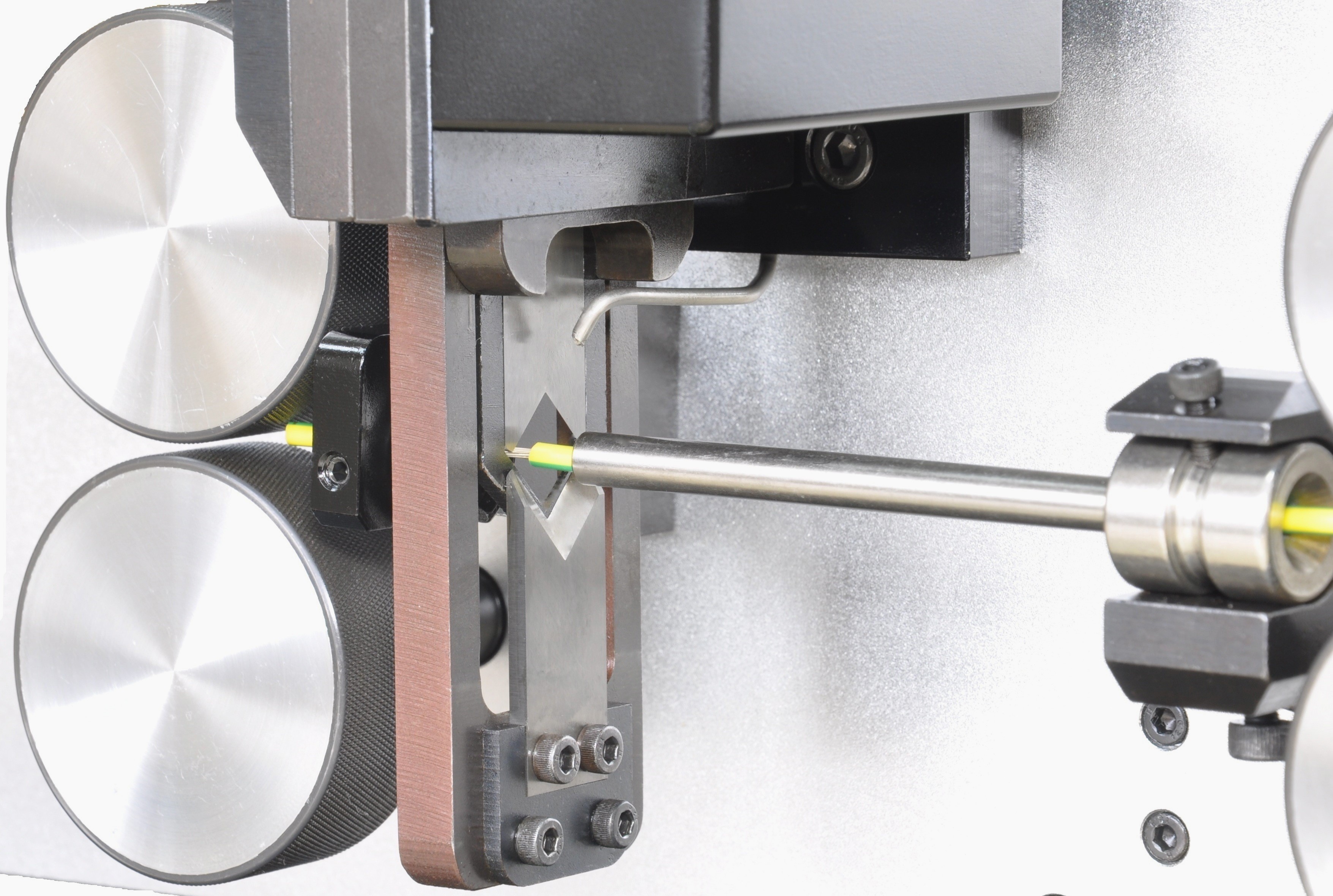

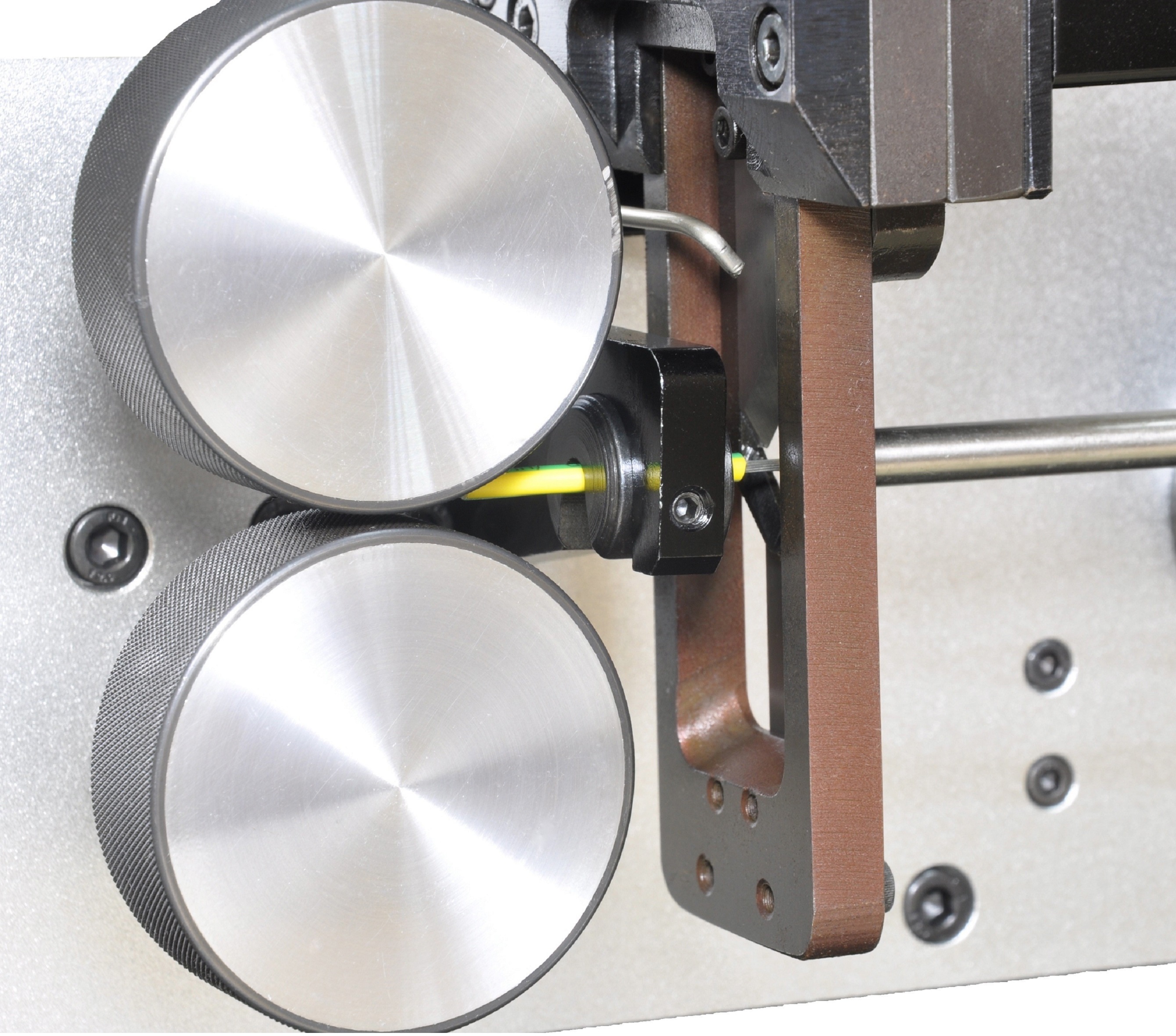

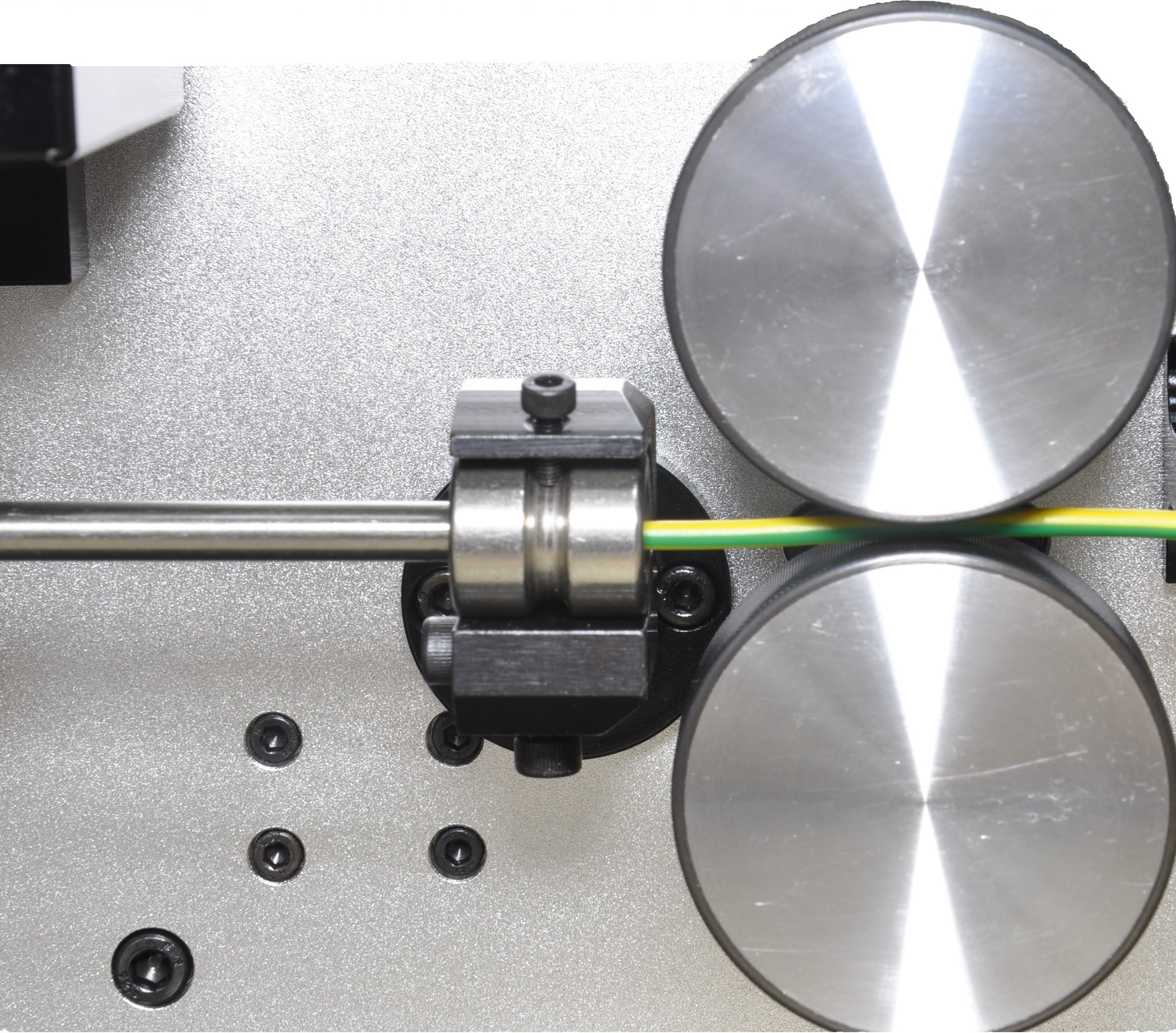

| Pressure rollers | Precision | Knife |
|---|---|---|

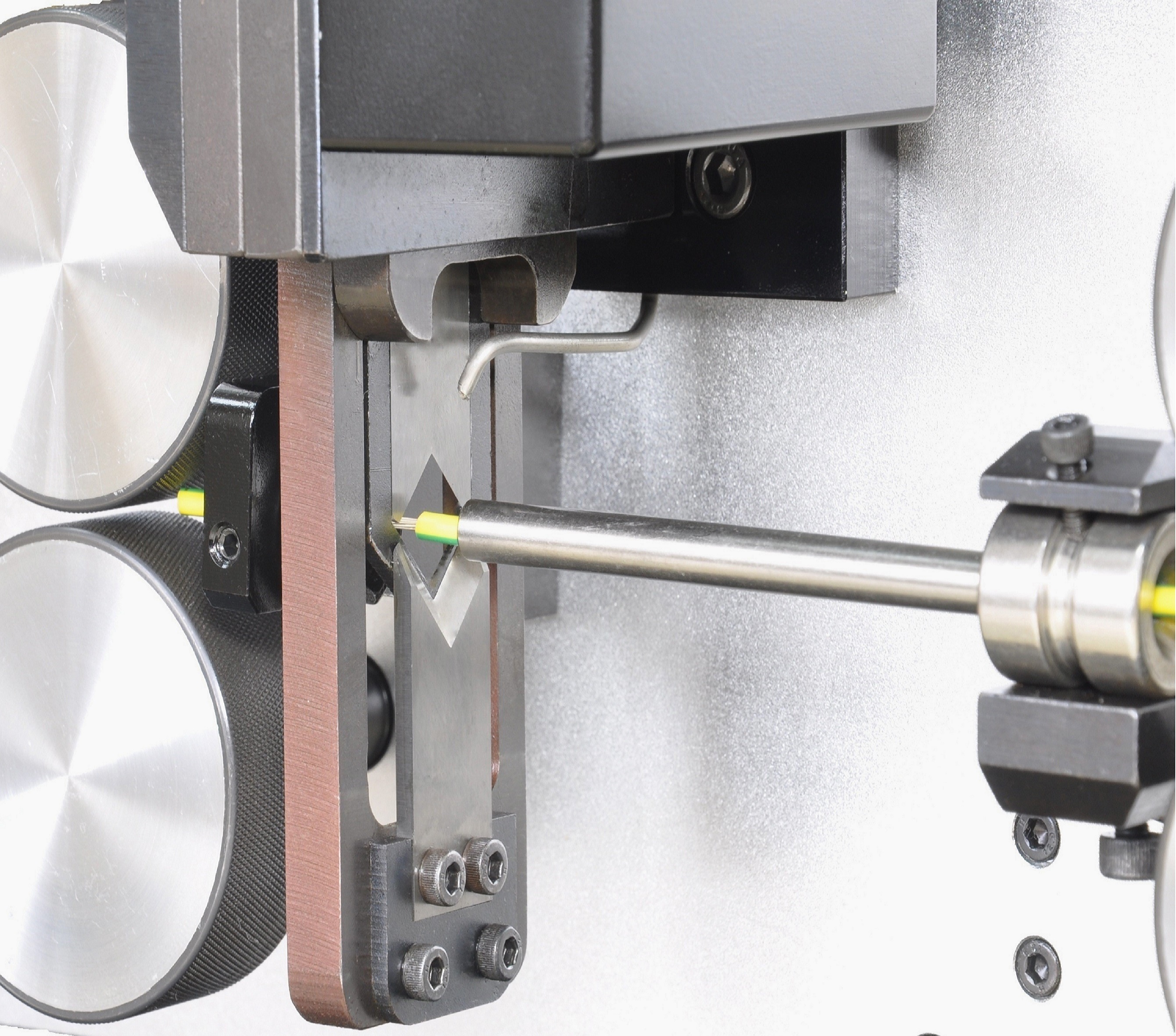

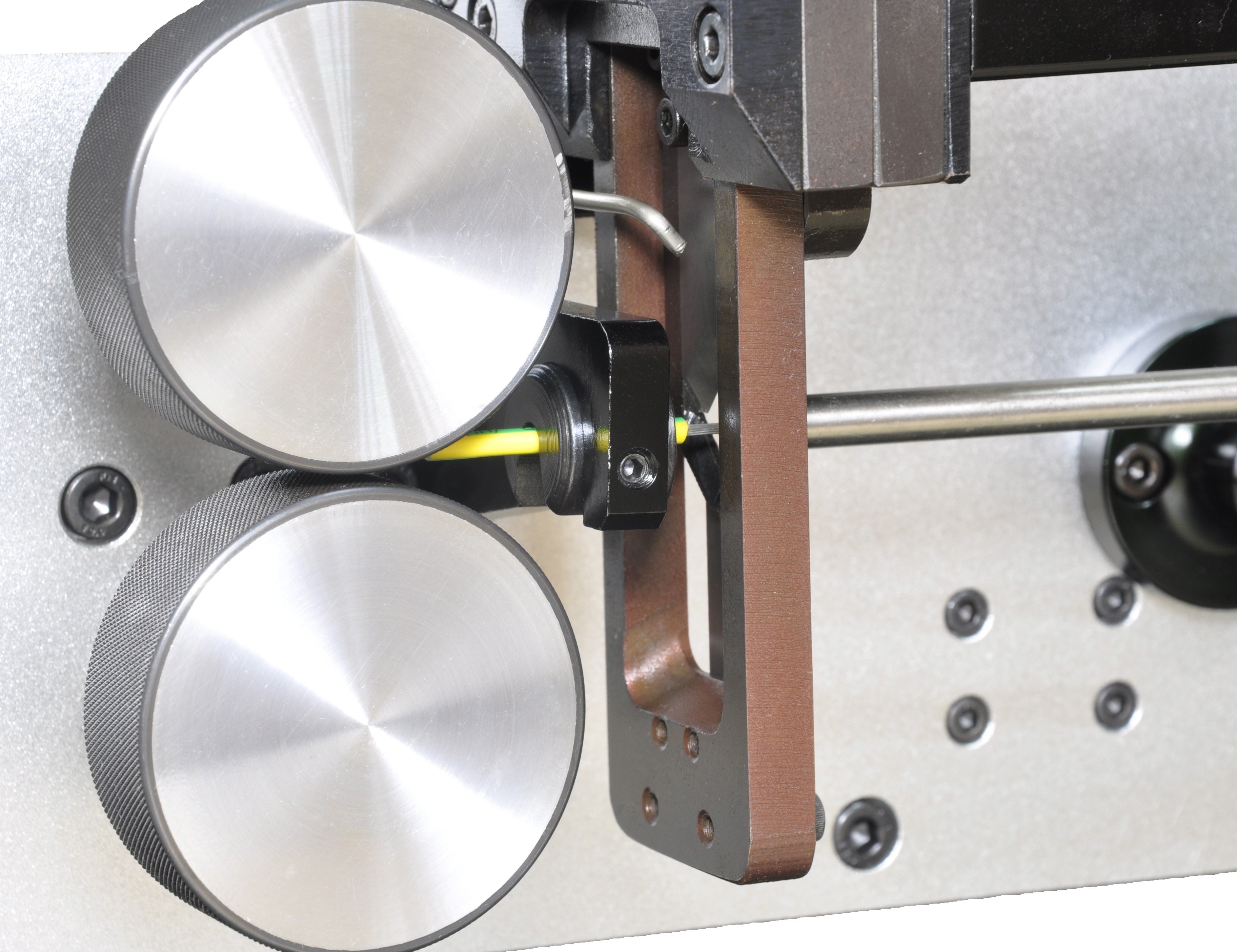

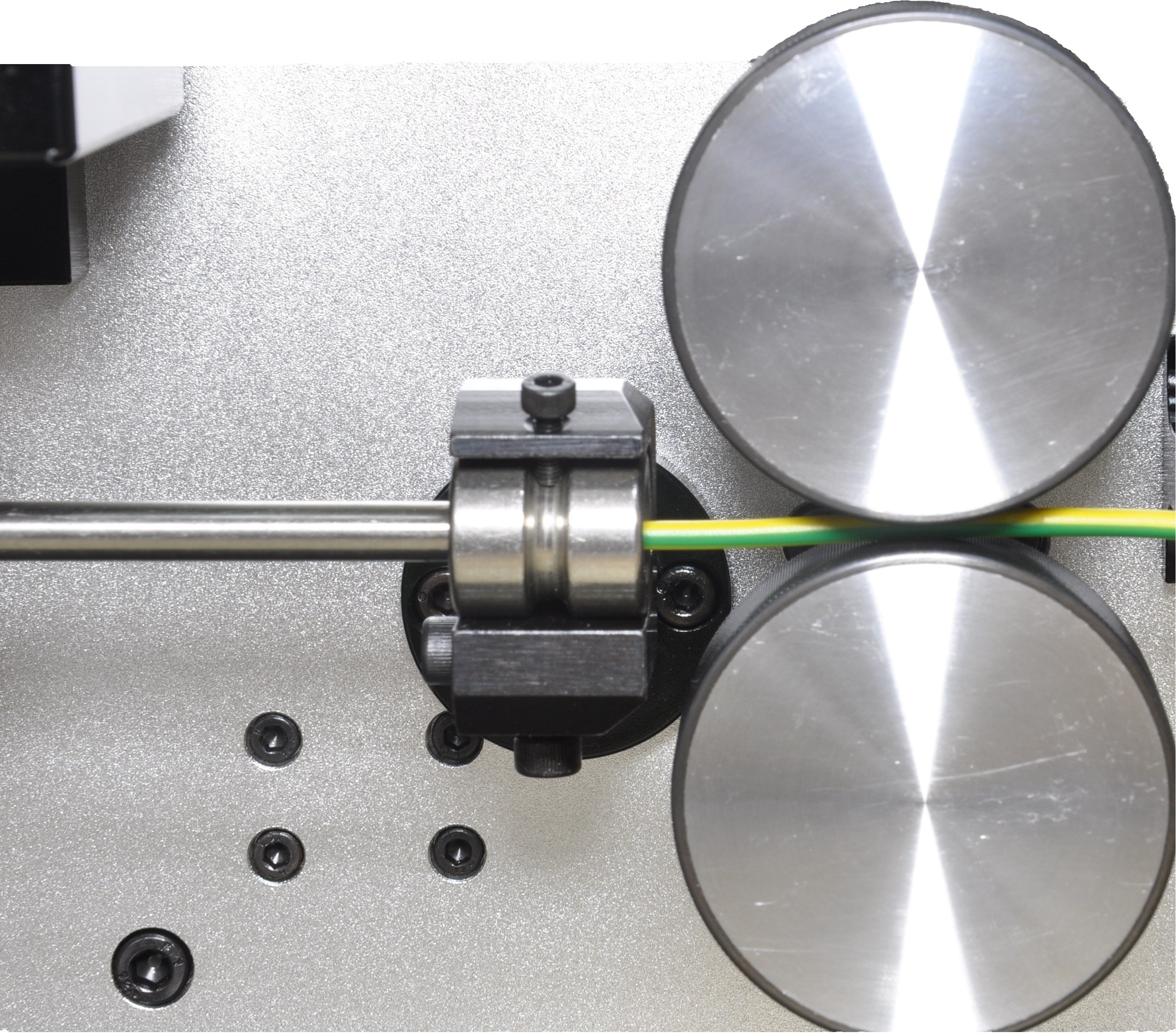

| The adjustable pressure of the rollers enables precise transport even at high working speeds. | The easily exchangeable guide parts guarantee high accuracy. | The standard hard metal V-blades are the ideal solution for most use cases. Radius knives are also available on request |
 |  |  |

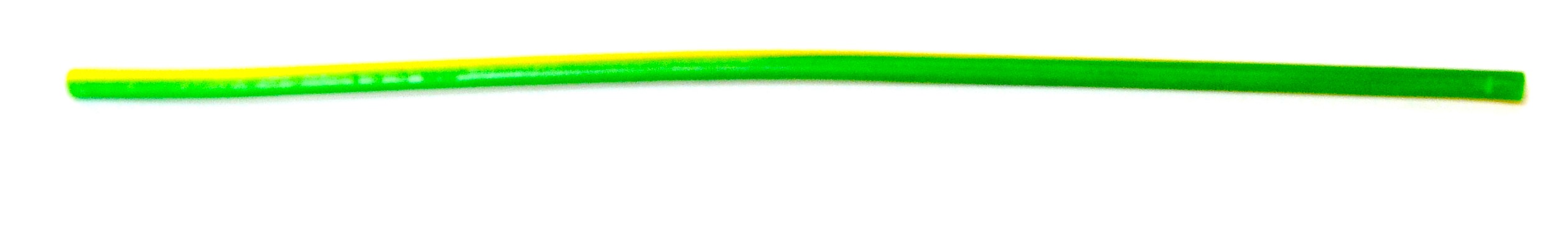

 | Cutting wire |

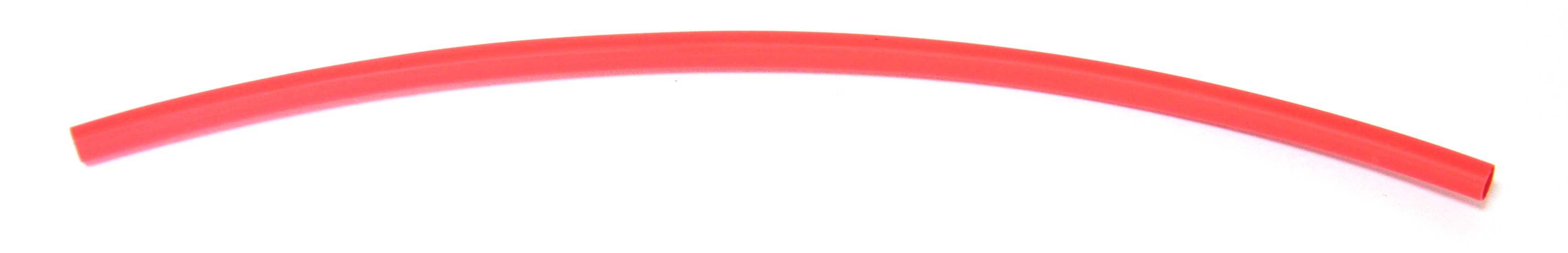

 | Cutting heat shrink tubing |

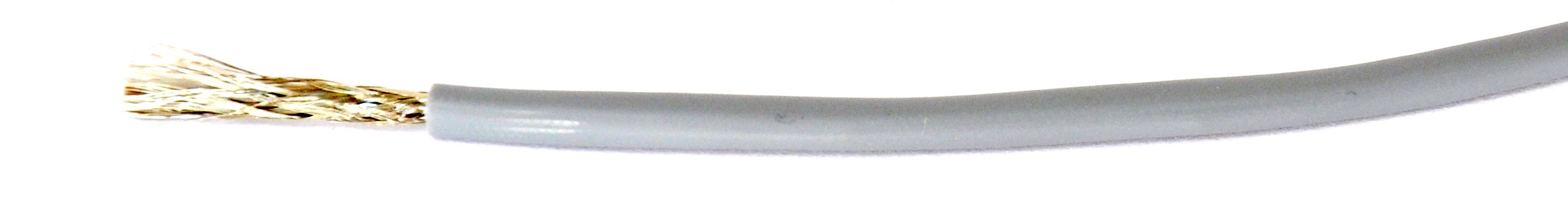

 | Cutting and stripping of sheathed cables |

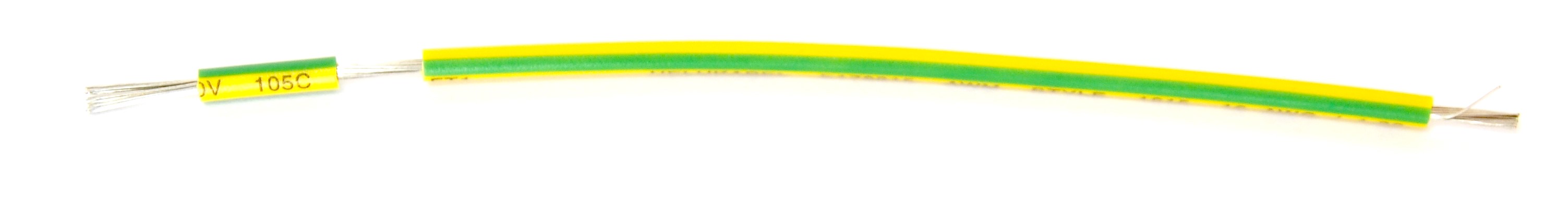

 | Partial or full deduction on one or both sides for cables |

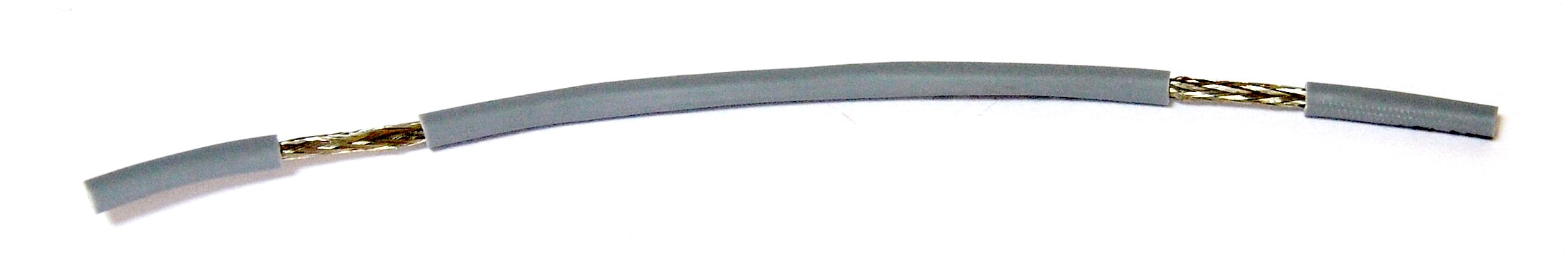

 | Window stripping and simultaneous full deduction |
