Beskrivning
Art.nr: ERR_SVO1
Avlindare för lättare spolar

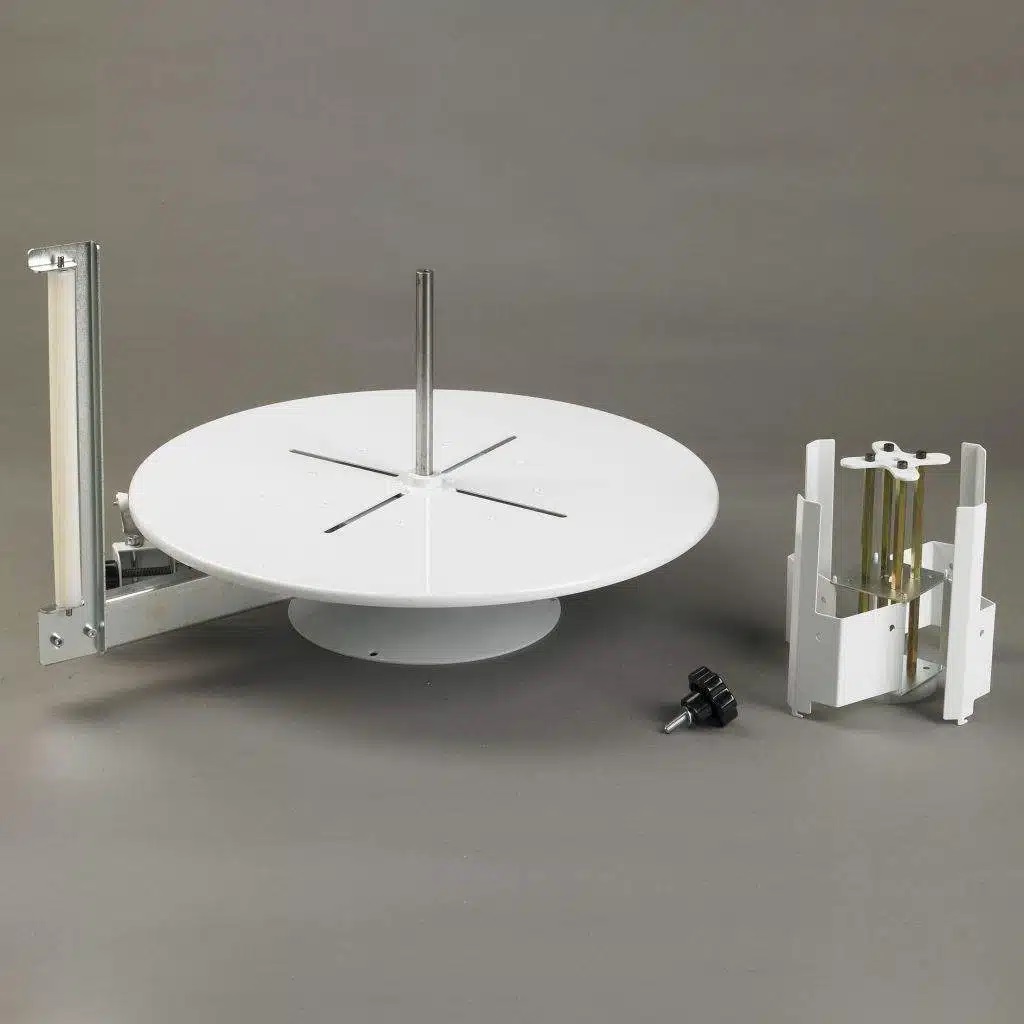

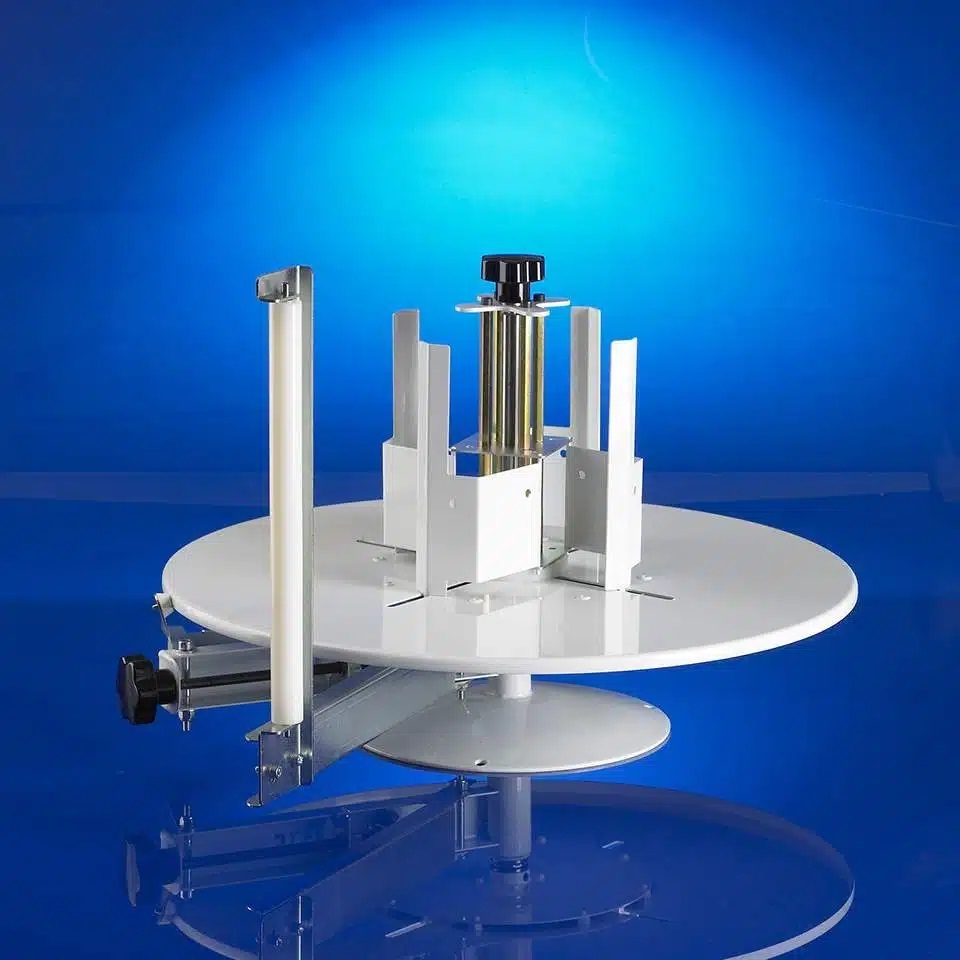

The SVO-1 HORIZONTAL DE-REELER has been designed as a support tool for the cutting machine. In addition to preventing excessive strain on the machine, it also serves to hold the material in constant tension and ensure a more precise cut.
This is made possible by an adjustable force tension arm, which is connected to the braking device of the reel, thus maintaining the material in constant traction

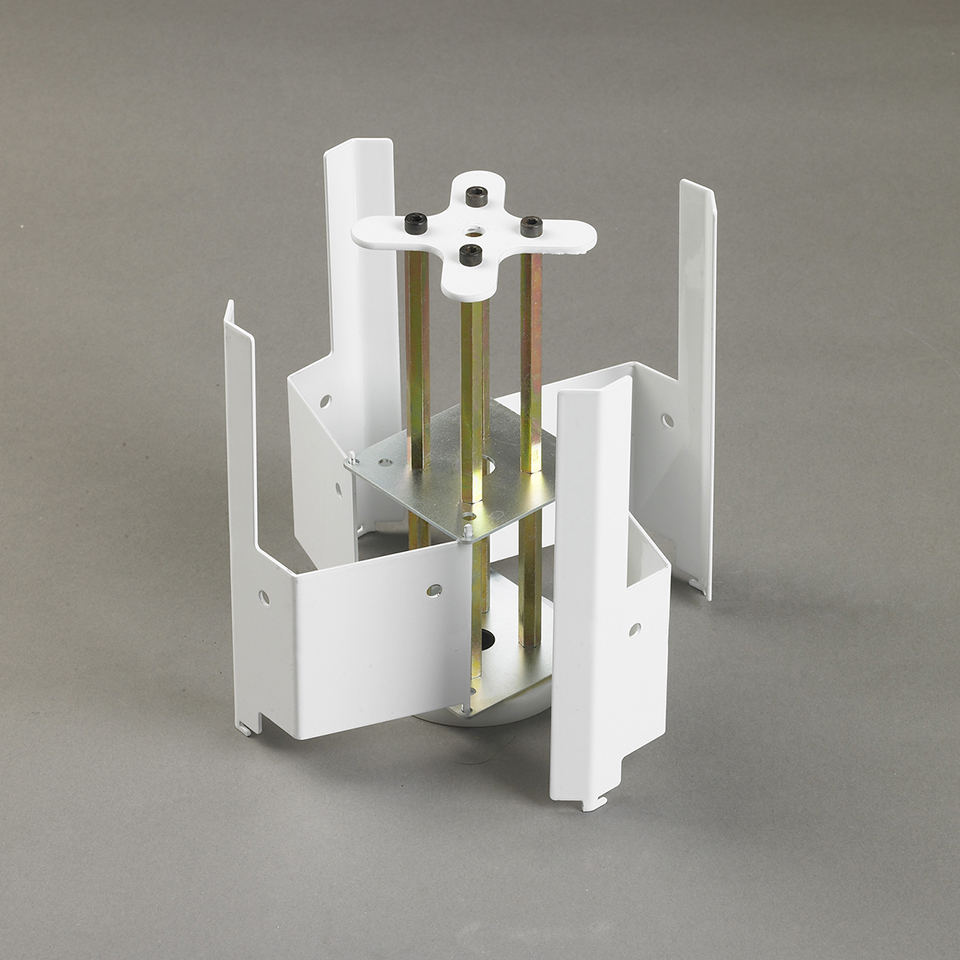

CENTRING DEVICE 160
- Centring device 160 adjustable from 70 to 160 mm
- Rapid central coil locking device
- Turret height 18 cm
CENTRING DEVICE 250
- Centring device 250 adjustable from 100 to 250 mm
- Rapid central coil locking device
- Turret height 18 cm
- Support disc mounted on a thrust ball bearing
- Material support disc Ø 500 mm
- Maximum tolerable weight from support surface 28 kg
- Central pin without centring device Ø 15 mm
- Weight 7 kg
- Overall dimensions (WxHxD) 60x38x50cm
| Height | 380 mm |
| Width | 500 mm |
| Length | 600 mm |
| Weight | 7 kg |
