Beskrivning
Art.nr: NIC_CD22-M3

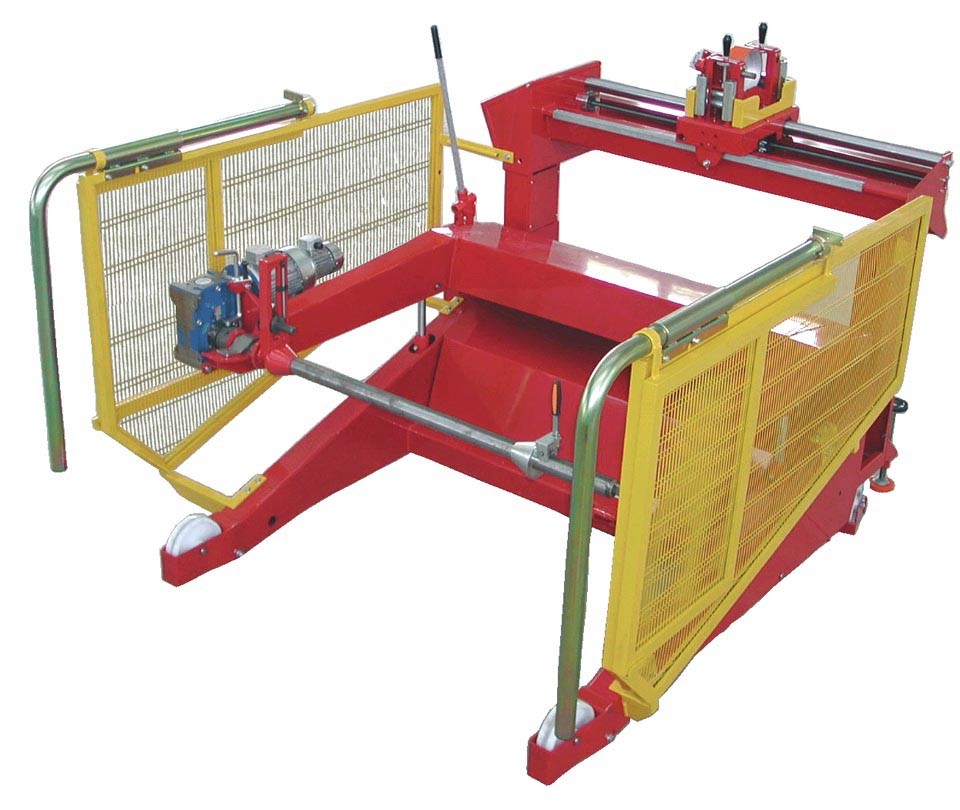

Shaft loading winder for low workloads, Max 4000 kg
- CE-approved safety guards fitted for protection.
- Electro-hydraulic lifting.
- VULKOLLAN wheels (two wheels and two castors).
- Electro-hydraulic front parking jacks.
- Rack-operated drum locking shaft.
- AC variable-speed winding unit, continuous speed adjustment 0-70 rpm.
- Supply voltage 380 V three phase (to be confirmed at order stage)
| LOW PERFORMANCE | HIGH PERFORMANCE | |
|---|---|---|
| Machine height (mm) | 1700 mm | |
| Machine width (mm) | 2600 mm | |
| Length with guards on (mm) | 4100 mm | |
| Empty weight (kg) | 650 kg | |
| Drums - maximum diameter (mm) | 2200 mm | |
| Drums - minimum diameter (mm) | 800 mm | |
| Drums - Maximum width (mm) | 1350 mm | |
| Drums - Minimum width (mm) | 300 mm | |
| Drums- Max. weight capacity (kg) | 4000 kg | |
| Total power (kW) | 3.0 KW | 6.0 KW |
| Torque | 843 nm | |
| Machine movement speed | 4 km/h | |
| Min-Max rpm at drum (min) | 0-70/min | |
