Beskrivning
Art.nr: NIC_CD15-M3

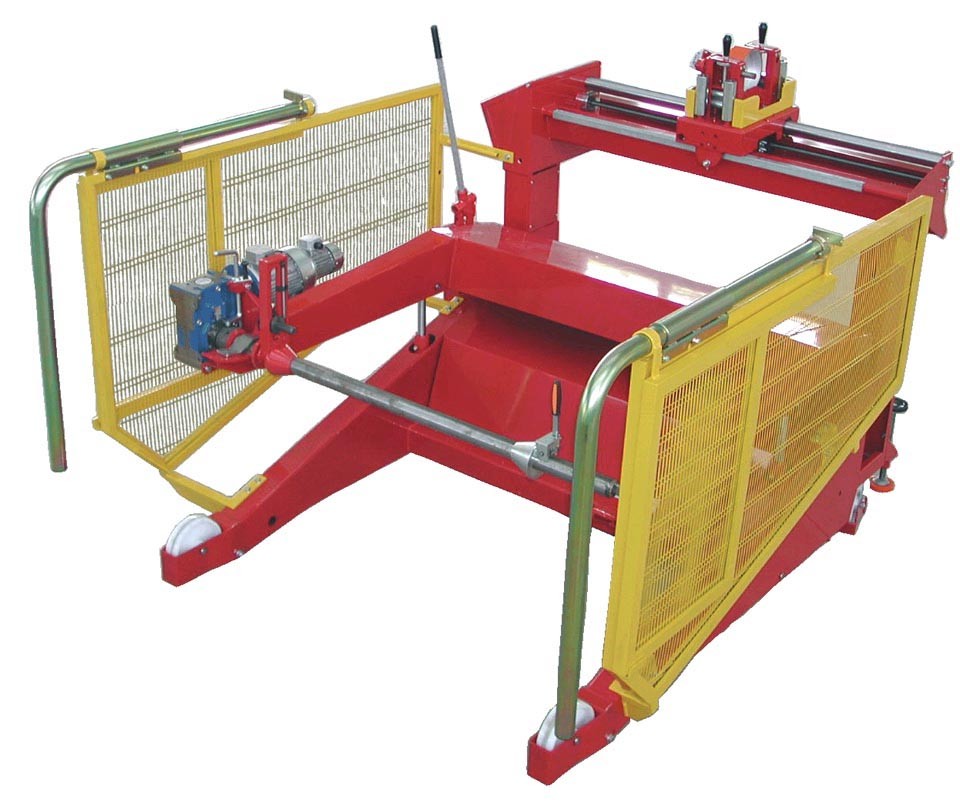

Shaft loading winder for low workloads, Max 3000 kg
- CE-approved safety guards fitted for protection.
- Manual pump hydraulic lifting. (LOW PERFORMANCE)
- Electro-hydraulic lifting. (HIGH PERFORMANCE)
- NYLON wheels (two wheels and two castors).
- Manual front parking jacks.
- Electro-hydraulic jacks and shears. (LOW PERFORMANCE)
- Rack-operated drum locking shaft. (HIGH PERFORMANCE)
- AC variable speed winding unit, continuous speed adjustment 0-70 rpm.
- Supply voltage 380 V three phase (to be confirmed at order stage)
| LOW PERFORMANCE | HIGH PERFORMANCE | |
|---|---|---|
| Machine height (mm) | 1700 mm | |
| Machine width (mm) | 2200 mm | |
| Machine length (mm) | 2300 mm | |
| Length with guards on (mm) | 2850 mm | |
| Empty weight (kg) | 540 kg | 555 kg |
| Drums - maximum diameter (mm) | 1600 mm | |
| Drums - minimum diameter (mm) | 600 mm | |
| Drums - Maximum width (mm) | 1150 mm | |
| Drums - Minimum width (mm) | 300 mm | |
| Drums- Max. weight capacity (kg) | 3000 kg</td | |
| Total power (kW) | 2.2 KW | 3.3 KW |
| Torque | 421 Nm | |
| Machine movement speed | 4 km/h | |
| Min-Max rpm at drum (min) | 0 - 70 | |
