Beskrivning
Art.nr: NIC_02-03-OD

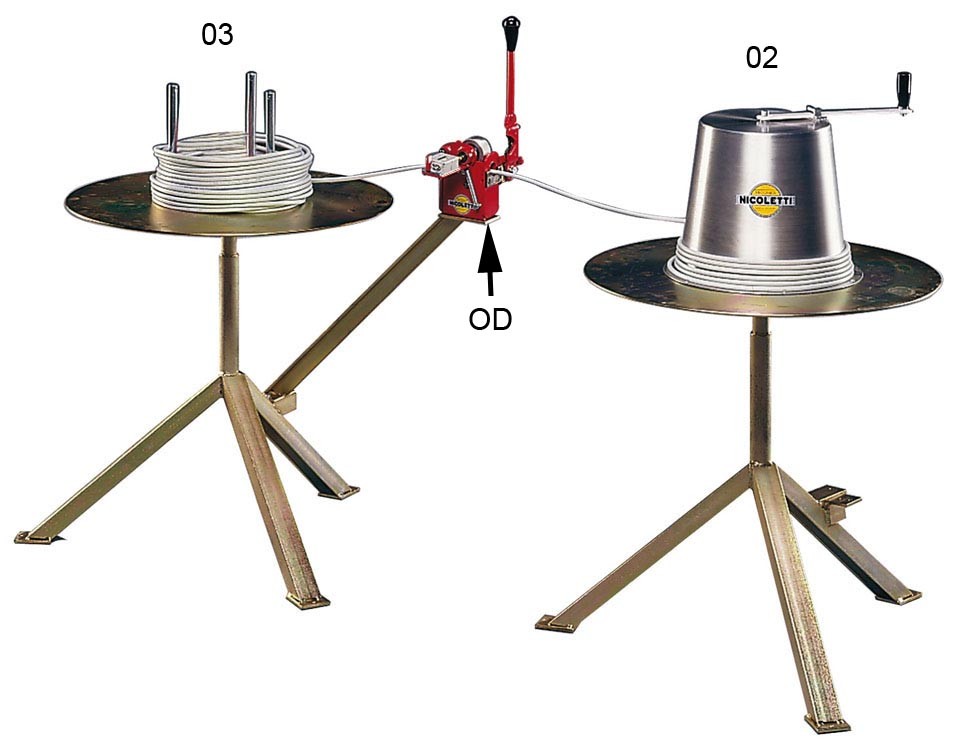

Manuell Av- & På-lindare, Max 70 kg
- Sheet steel construction.
- Surface treatment: stove-enamelled counter, hot-dip galvanized uncoiler and coiler.
- Measures cables up to Ø 20mm
- Cuts cables max. Ø 15mm.
- Measuring tolerance ± 1.5%
| Height | 970 mm |
| Width | 700 mm |
| Length | 700 mm |
| Weight | 63 kg |
| Load capacity | 70 kg |

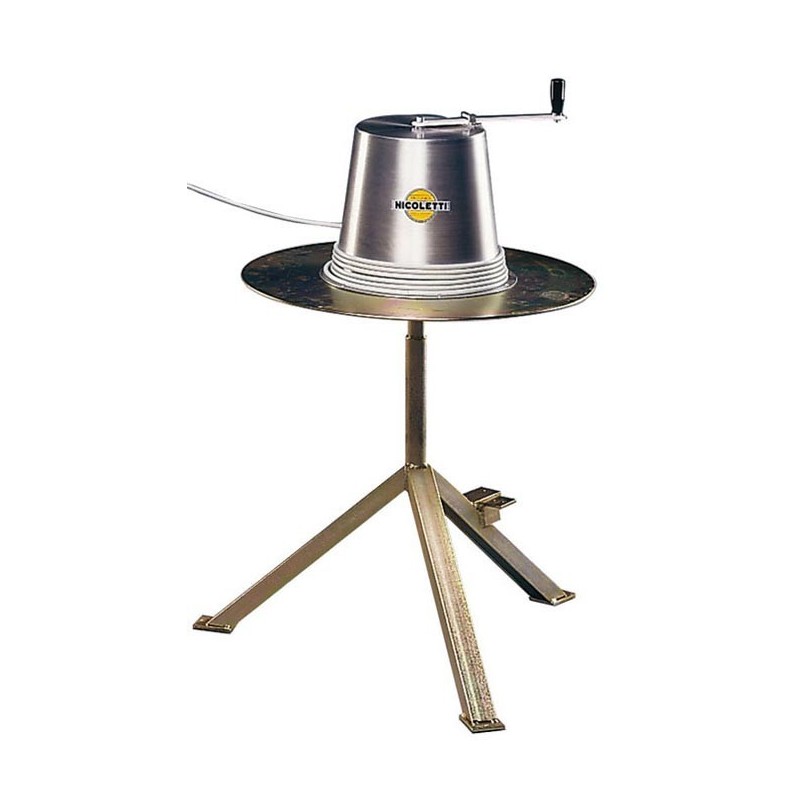

| Coiler | |
|---|---|
| Plate diameter | 700 mm |
| Plate height | 310 mm |
| Coil core diameter | 270 - 350 mm |

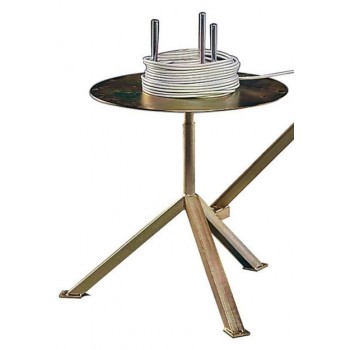

| Uncoiler | |
|---|---|
| Plate diameter | 700 mm |
| Plate height | 250 mm |
| Coil core diameter | 80 - 320 mm |

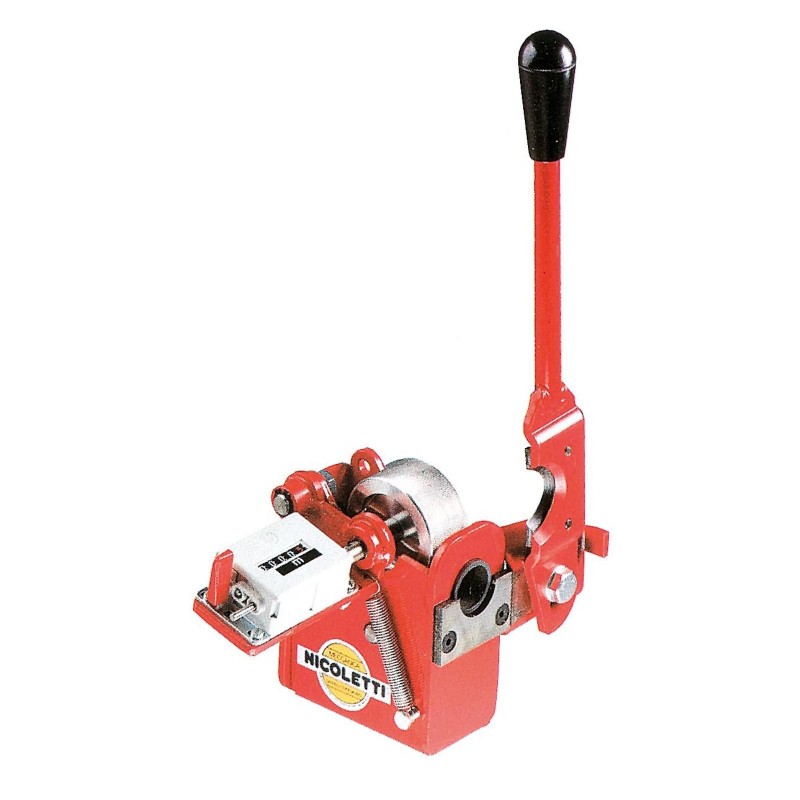

| Shears unit with counter | |
|---|---|
| Height | 180 mm |
| Width | 360 mm |
| Length | 135 mm |
| Weight | 3 kg |
| Cable diameter | 2 - 10 mm |
| Size tolerance | ± 1,5 % |
