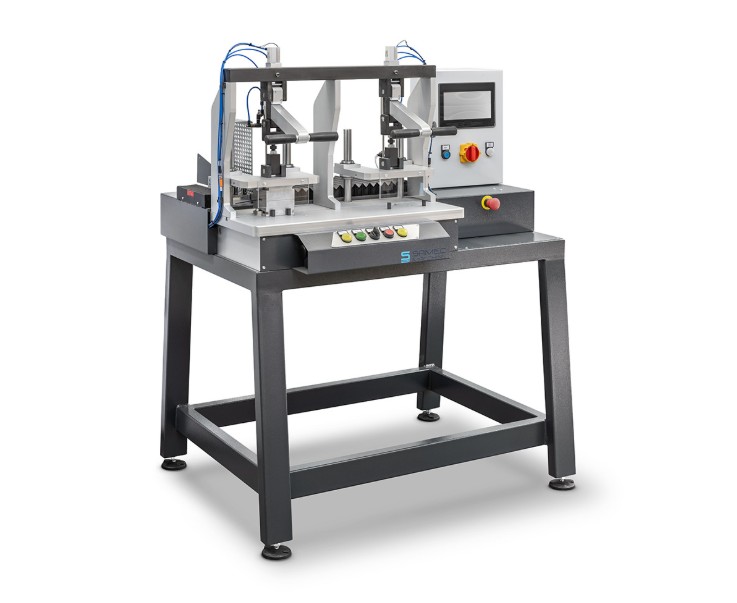

SAMEC- 1001/P
Moulding system for connectors, cables and printed circuits
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: SAM_1001/P
Model 1001-P
connectors, cables, printed circuits

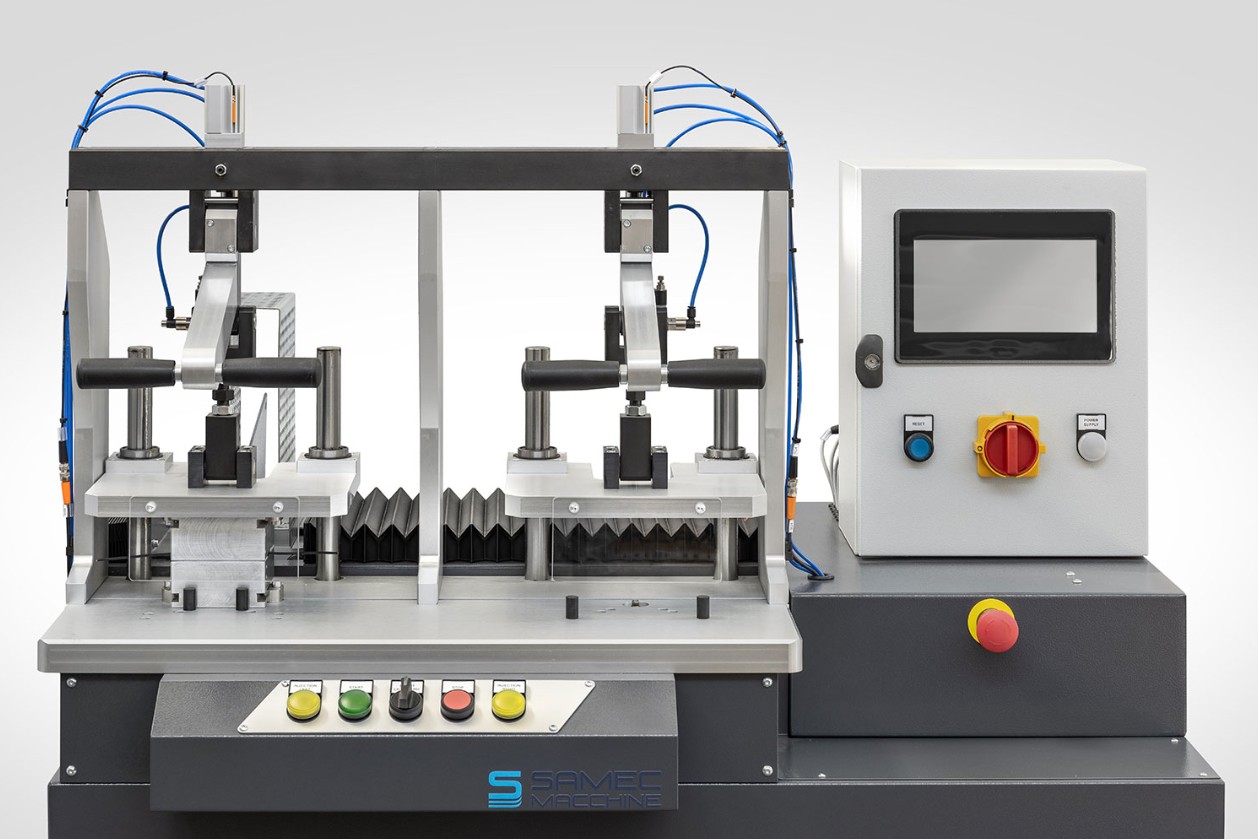

Two-station and heads-holder carriage with automatic translator.
Model 1002-F With melting unit and injection head for small and medium moulding.
Model 1002-P With gun and injection head for small moulding.
In accordance with CE standards
Mould holder plate: n.2
Mould-holder opening and closing: manual
Melting unit capacity: Kg. 5
Data setup: by keyboard and back lighted display
Programmable quantity of pieces: programmable
Storable code numbers: max.100 on each station
Melting temperature: Adjustable max 240 C
Injection system: Gears pump
Injection pressure: Adjustable
Pump injection speed: Adjustable max 180cc/min.
Electric power - absorption: 230 V 50Hz. - 3A
Air supply: 6 bar uninterrupted
Melting unit power: 400V 50 Hz. - 4Kw
Overall dimensions: 1500x900xH 1500 mm
Weight: Kg.160
Melting unit overall dimensions: 900x500xH 900mm
Melting unit weight: Kg.70
