| Wire cross section | 0,13 - 6mm² (AWG26-10) |
| Strip lenght | 2 - 11mm (1-11 optional) |
| Wire lenght min | >= 25 mm |
| Installing applicator | End feed - Side feed left to right |
| Cycle time | 1,5 s |
| Zero cut | Yes in two modality |
| Wayback | Yes |

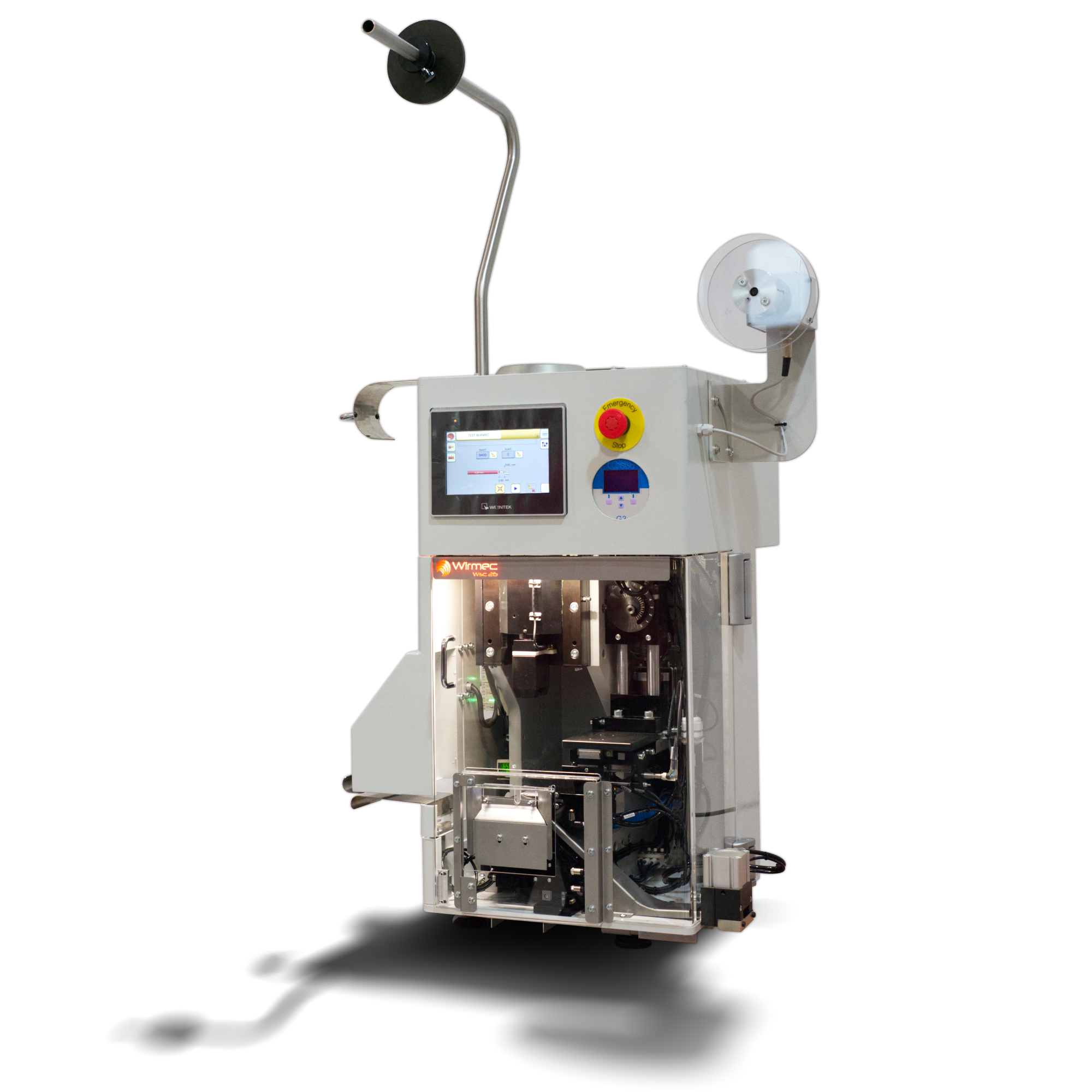

WSC26 Elektronisk programmerbar Strip & krimpmaskin 90°, 20kN
Programmerbar halvautomatisk strip & krimpmaskin med touchpanel för stängda terminaler
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: WIR_WSC26
WSC26
Stripping crimping machine with electronic control to run on any type of miniapplicator.

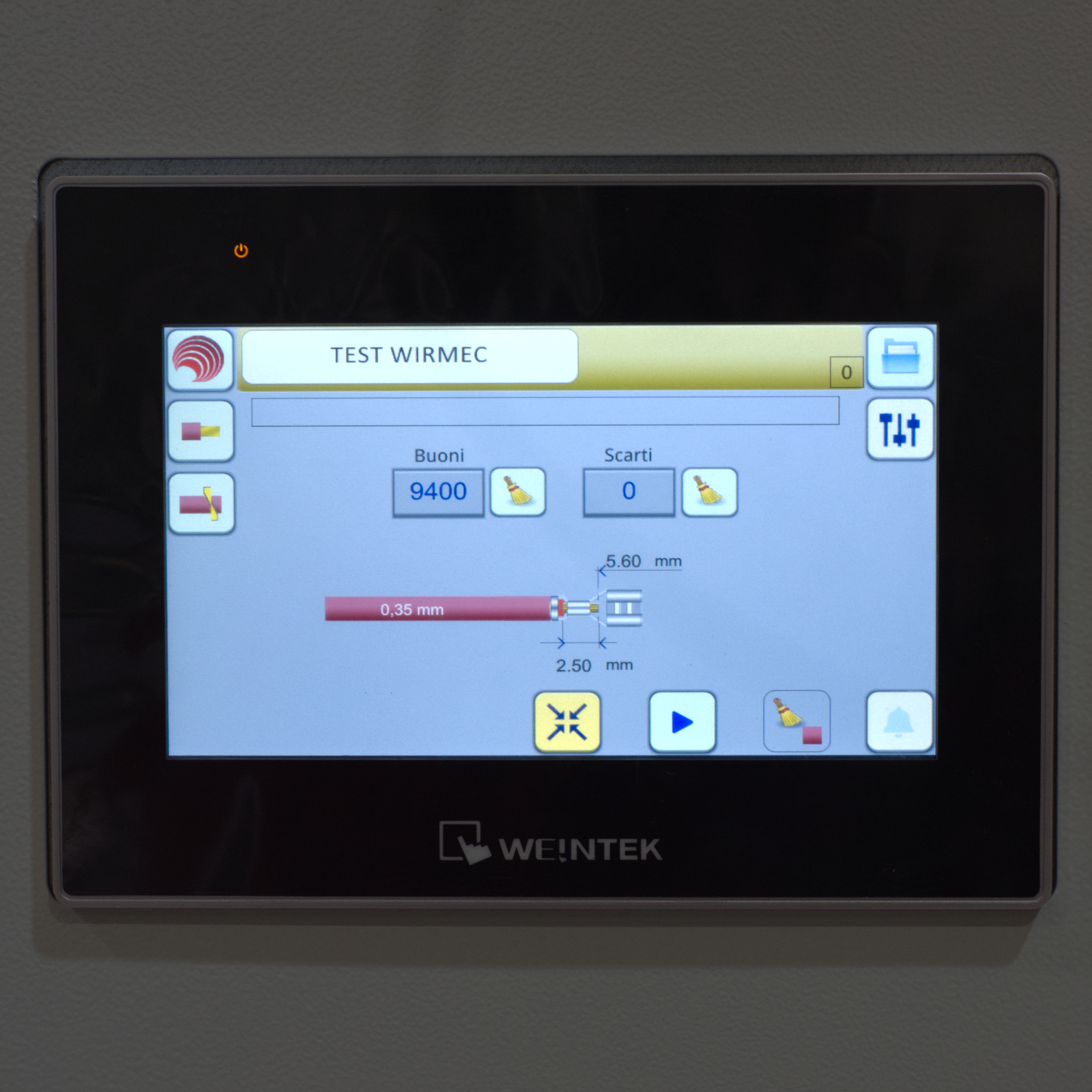

The setting of stripper crimper is fast and easy with the touch-screen operator panel that allows you to set parameters and save them with custom code.
The WSC26 allows rapid changes in processing with the ability to store many different codes. Key features
- Special for closed terminals( insulated terminals, end ferrules)
- CE norms compliance
- Programmable wire cross section and strip-ping length
- Settings processing on recipe

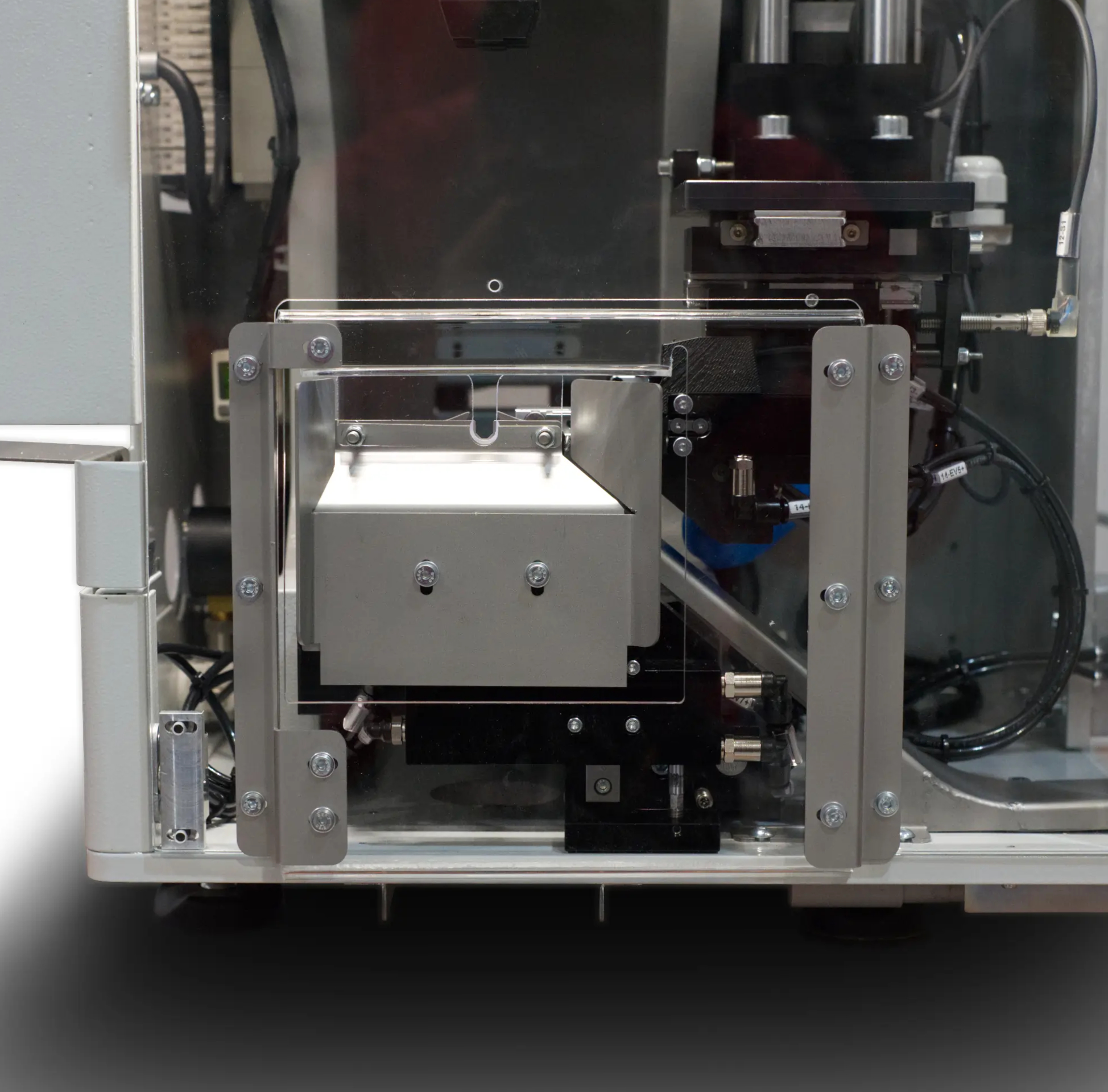

- Vacuum system for scraps
- Integrated and programmable terminal ejector
- Way back system
- Double zero cut
- Stripping speed adjustable
- Fast replacement of strip blade
- Working area lighted
- Stripper module height adjustable
- Fast replacement of strip blade
- Wire funnel Ø1,8 and Ø4mm
- Scraps box
- Monitor touch wide screen 7
- Vision interface in local language
- Wi-Fi, Ethernet and USB connection
- Italian Style frame
- Use and maintenance manual
Options

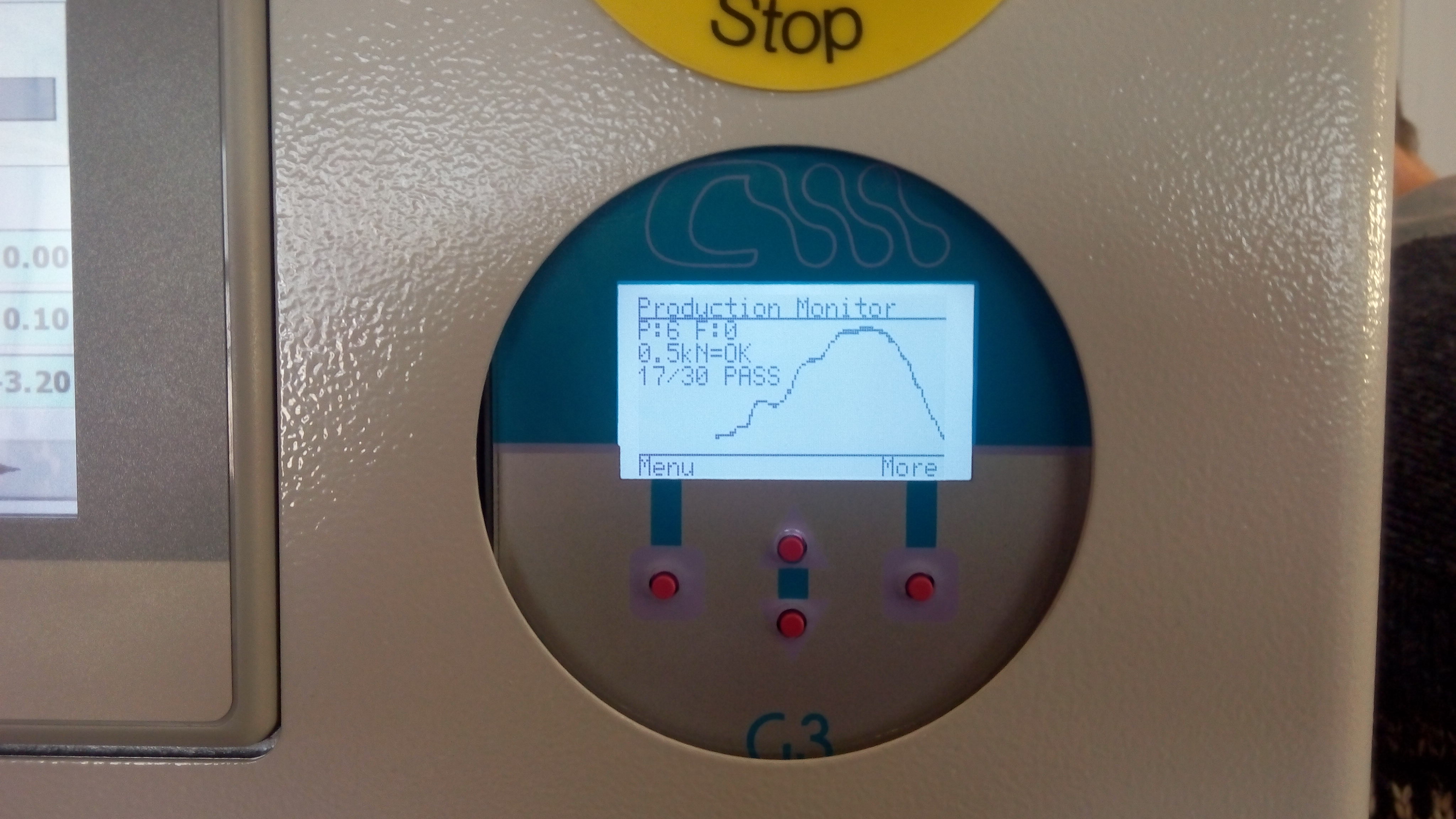

- Crimp force monitoring (CFM)
- Electronic crimp height adjustment
- Cut bad crimp
- Paper wind device
- Currier strip chopper
- Wire crimp sequence
- Wire detection color
