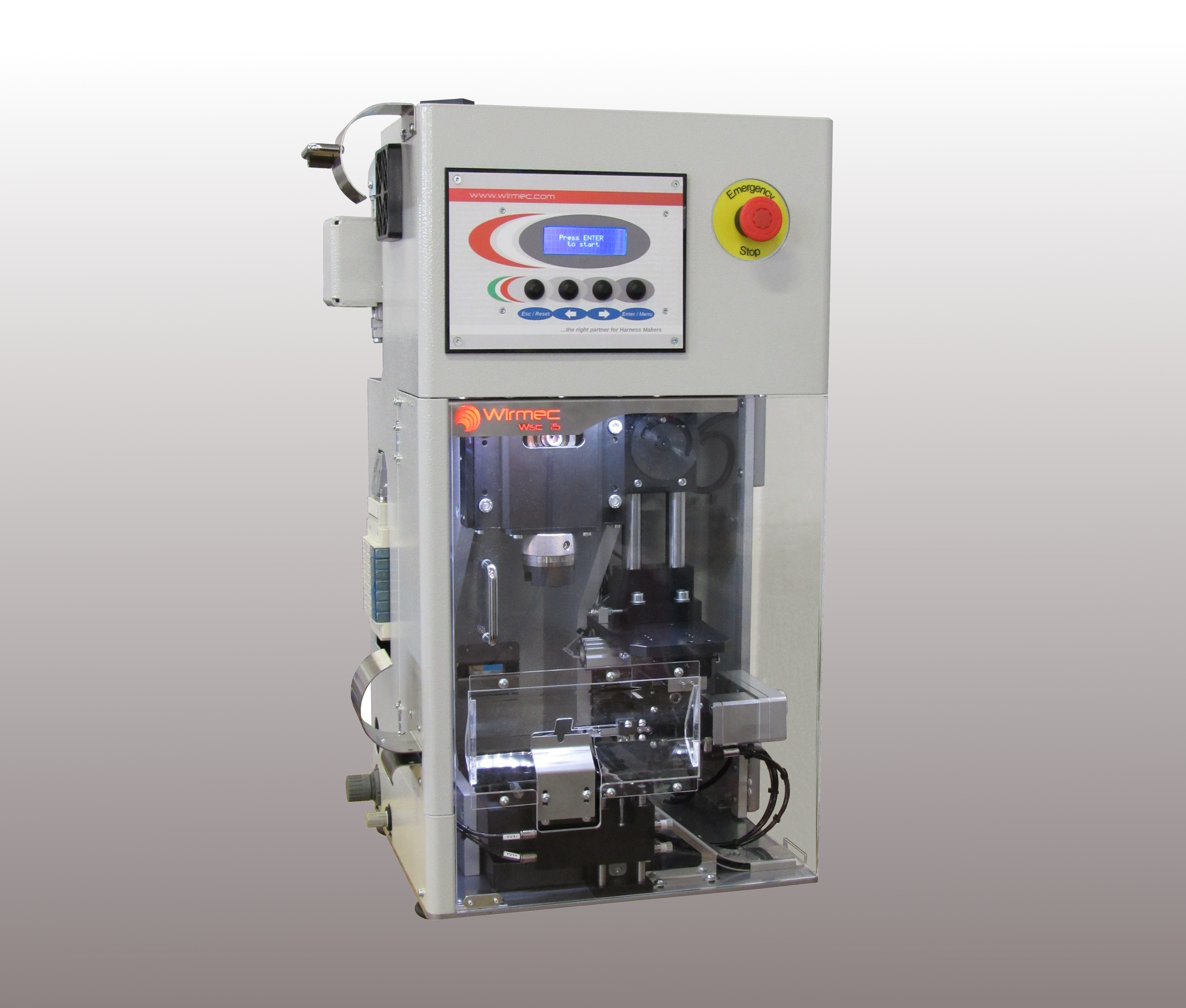

WSC15 Elektropneumatisk Strip och krimpmaskin 90°, 20kN

WSC15
Stripping & crimping machine, electro-pneumatic,
to run on any type of miniapplicator. The setting of stripping crimping machine is quick and easy
thanks to the display that shows the parameters.

WSC15 stripper crimper by WIRMEC performs operations of stripping and
crimping of terminals on electric cables. Does not require any additional
kit to perform special processing, short stripping or very small sections very small and very short cables.

This machine can use almost all types of applicators, without to change
anything meccanically. The grippers and the cutting blades are closing in
lateral movement keeping the wire always in axis with the applicator.

The strip head is derived from the big brother WSC20, and it guarantees high performance with very small terminals and
cross sections of wire with absolute precision.

The patent system of safety guard of gripper, allows to crimp single and
multicore cable with very short length up to 20mm.

The vertical movement of gripper is electronic and programmable.

The settings of wire cross section and strip length are visualized in a
HMI-display.

The stripper module is provided of integrated pneumatic extractor for
applicator without this option.

 WSC15 machine is provided with currier strip/ guide for
applicators without cut currier strip.

• The stripper module is adjustable in height position.
   Fast replacement of strip blade.
   Work area lighted.
