| Wire cross section | 0,05- 4mm² (AWG30-12) |
| Strip lenght | 2 - 11mm (1-11 optional) |
| juket strip length | >= 18 mm |
| inertion cycle | Seal insetion cycle before and after wire strip |
| Cycle time | 1.75 s |
| Cut carrier | Option |
| Zero cut | Yes in two modality |
| Way Back | Yes |
| Terminal ejector | Yes |
| paper winder | Option |
| Wire sequence | Option |
| wire shortening | Option |

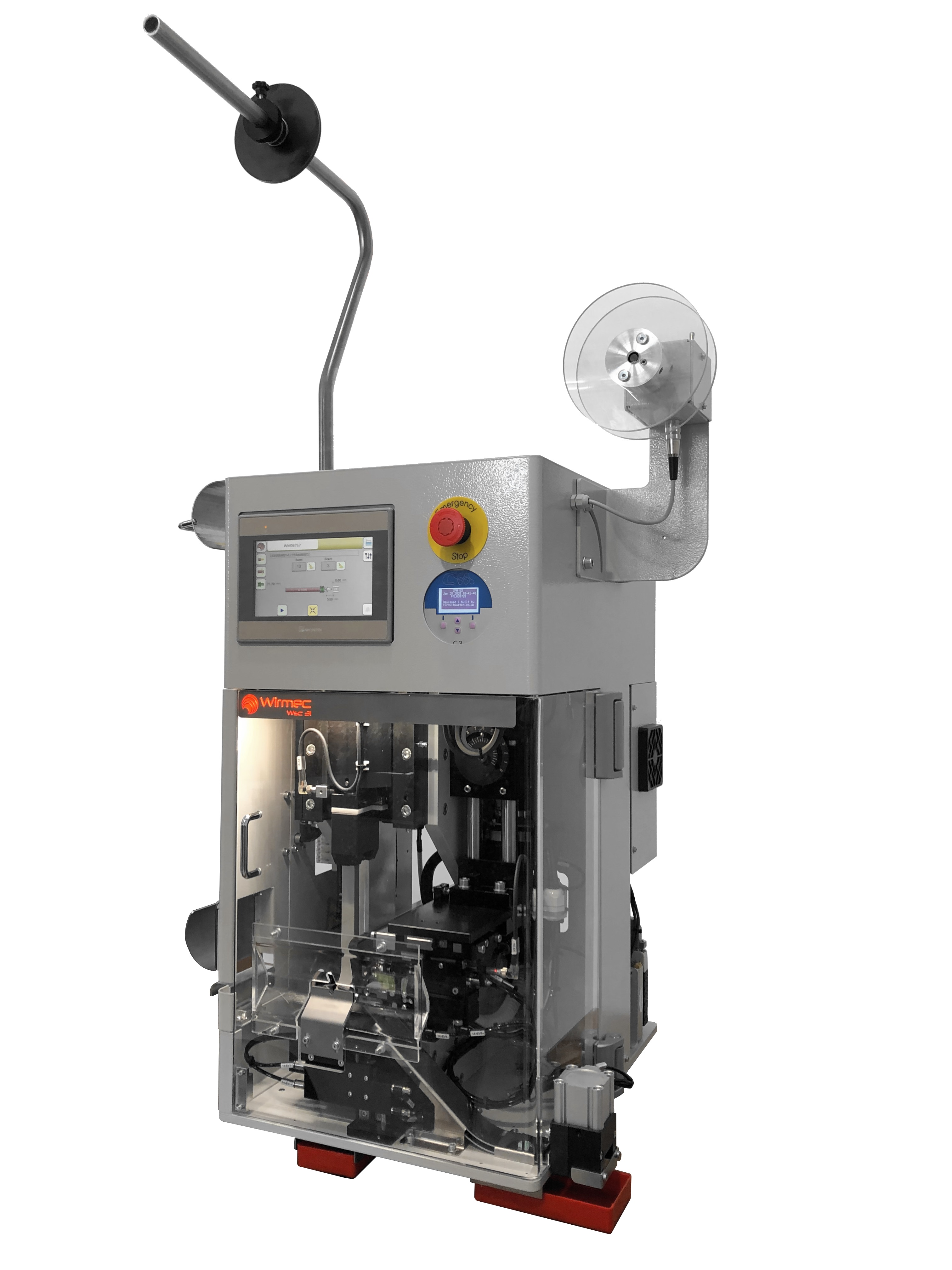

WSC31 Elektronisk Strip och krimp med skattätning (Seal) 90°, 20kN
Stripper krimper för scattätning (Seal)
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: WIR_WSC31
WSC31
Stripping crimping machine with electronic control to run on any type of miniapplicator and with seal-insertion.

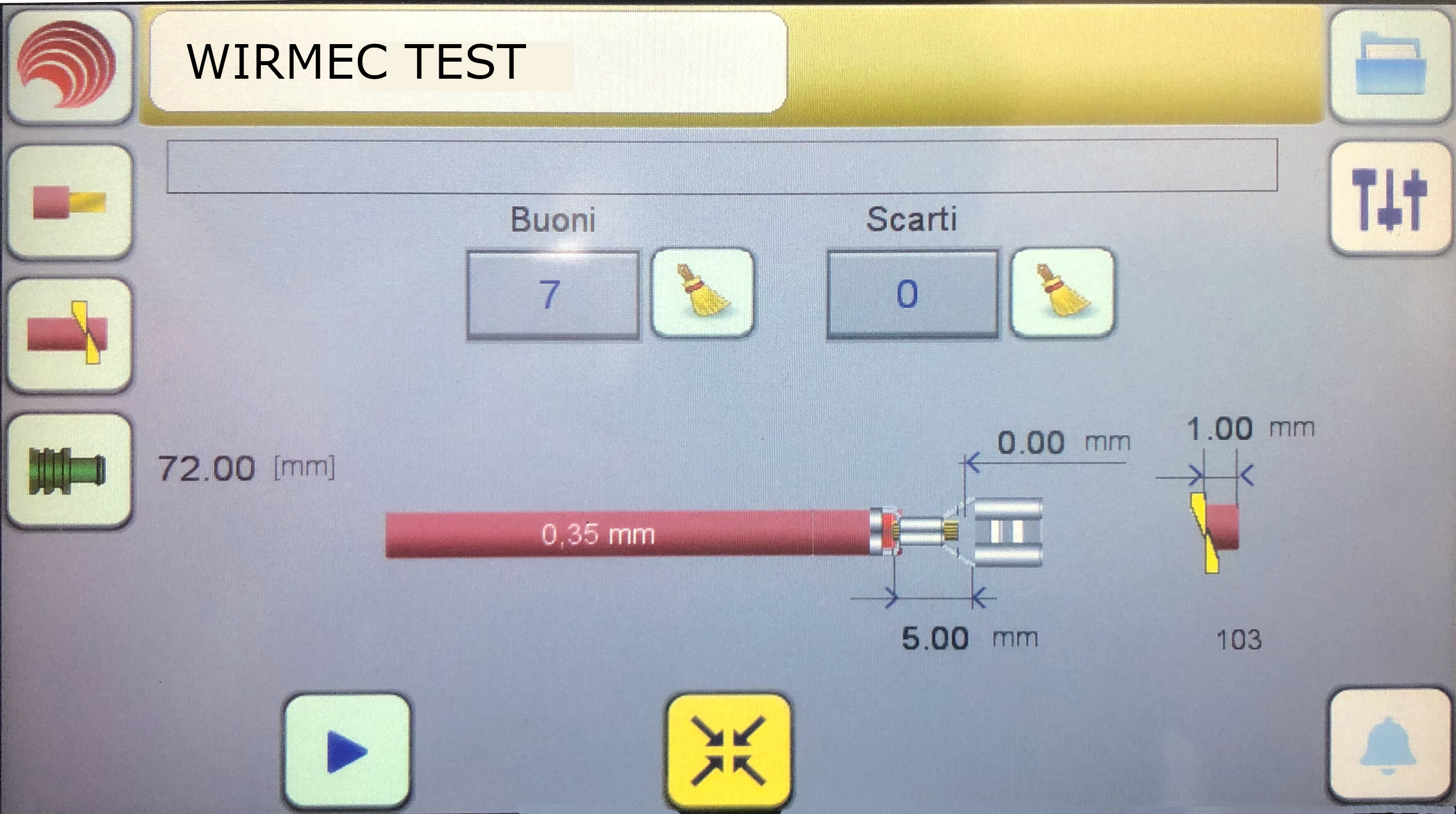

The setting of stripper crimper is fast and easy with the touch-screen operator panel that allows you to
set parameters and save them with custom code.

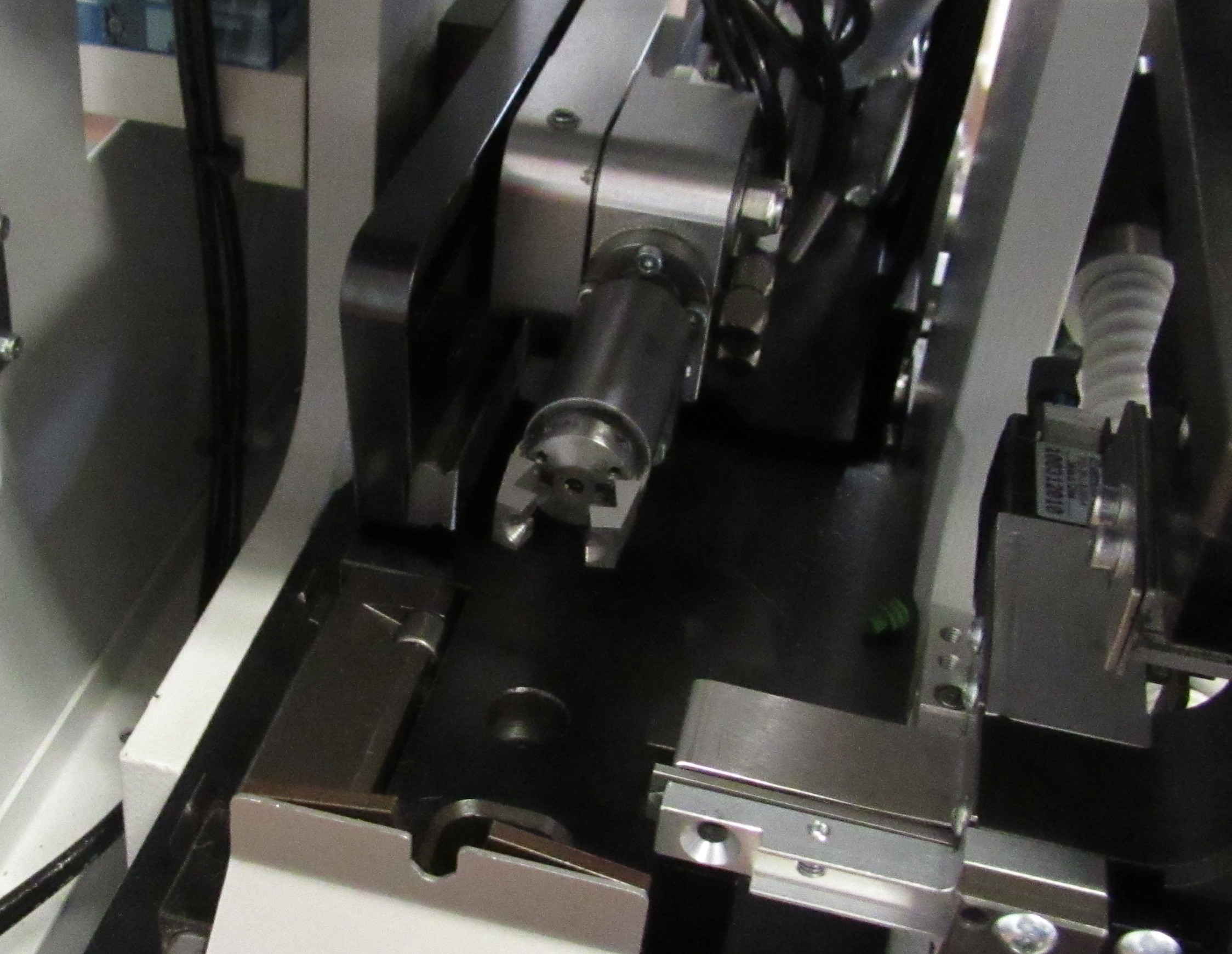

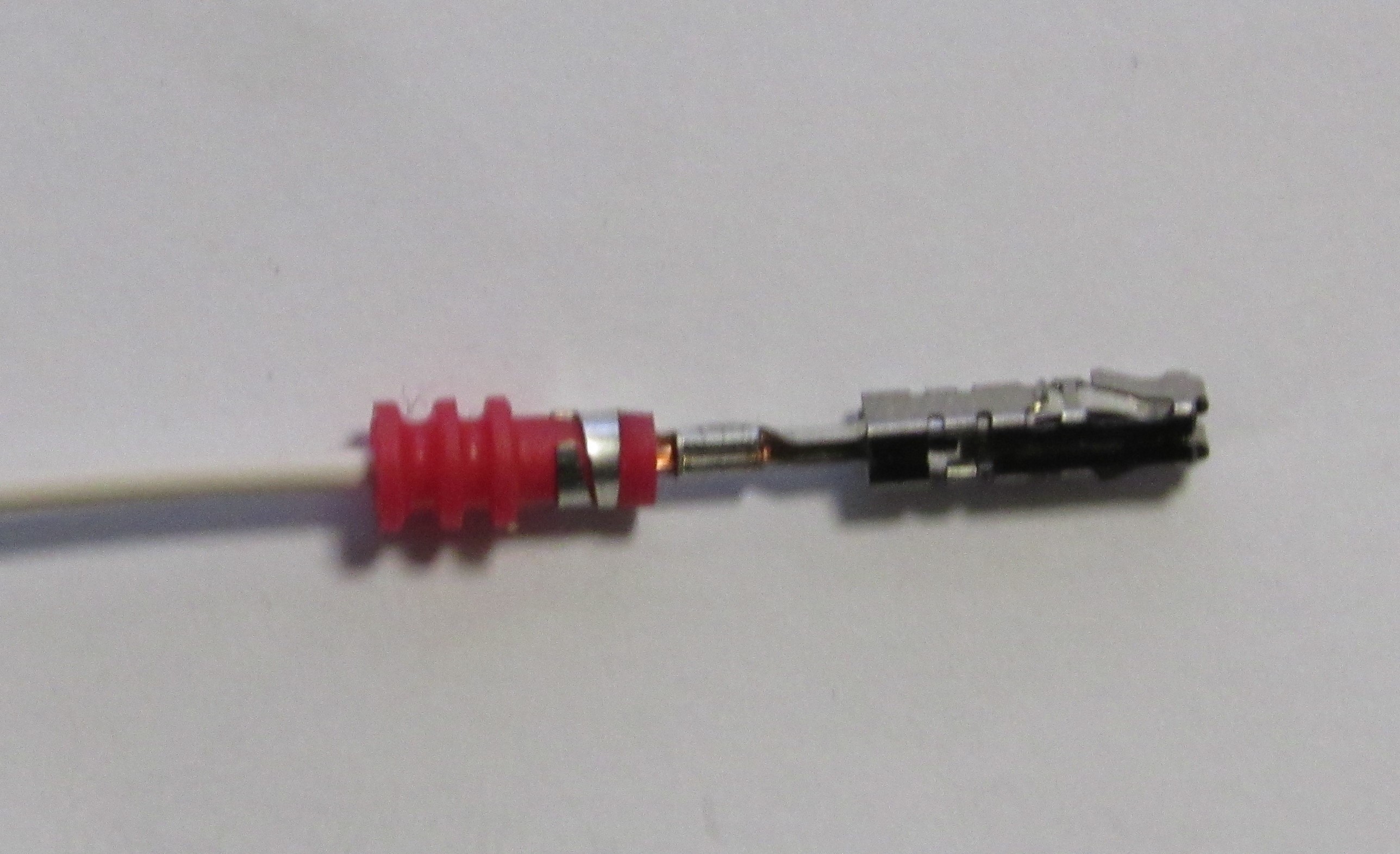

The WSC31 stripper crimper by WIRMEC performs operations of stripping seals insertion and crimping of

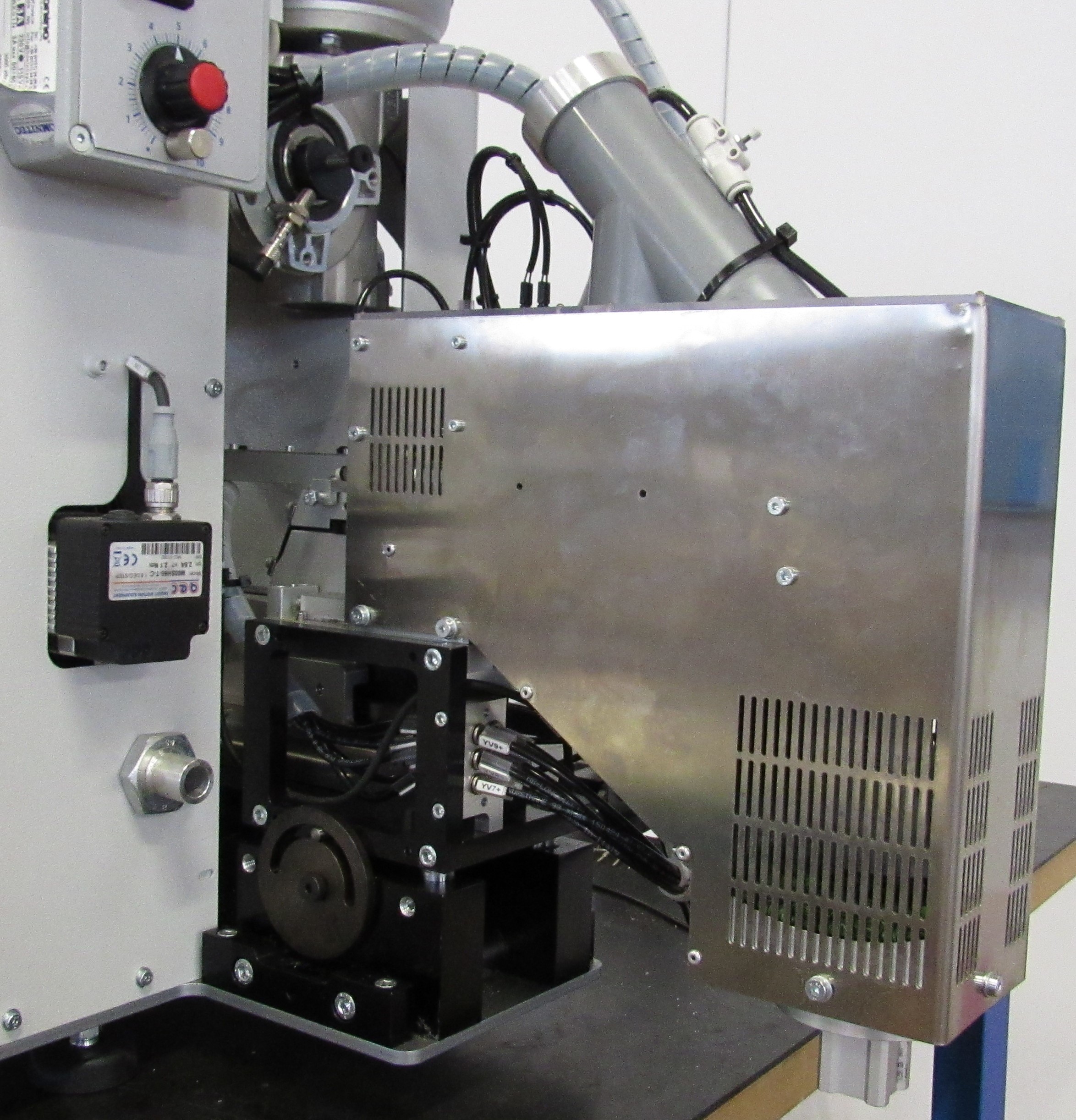

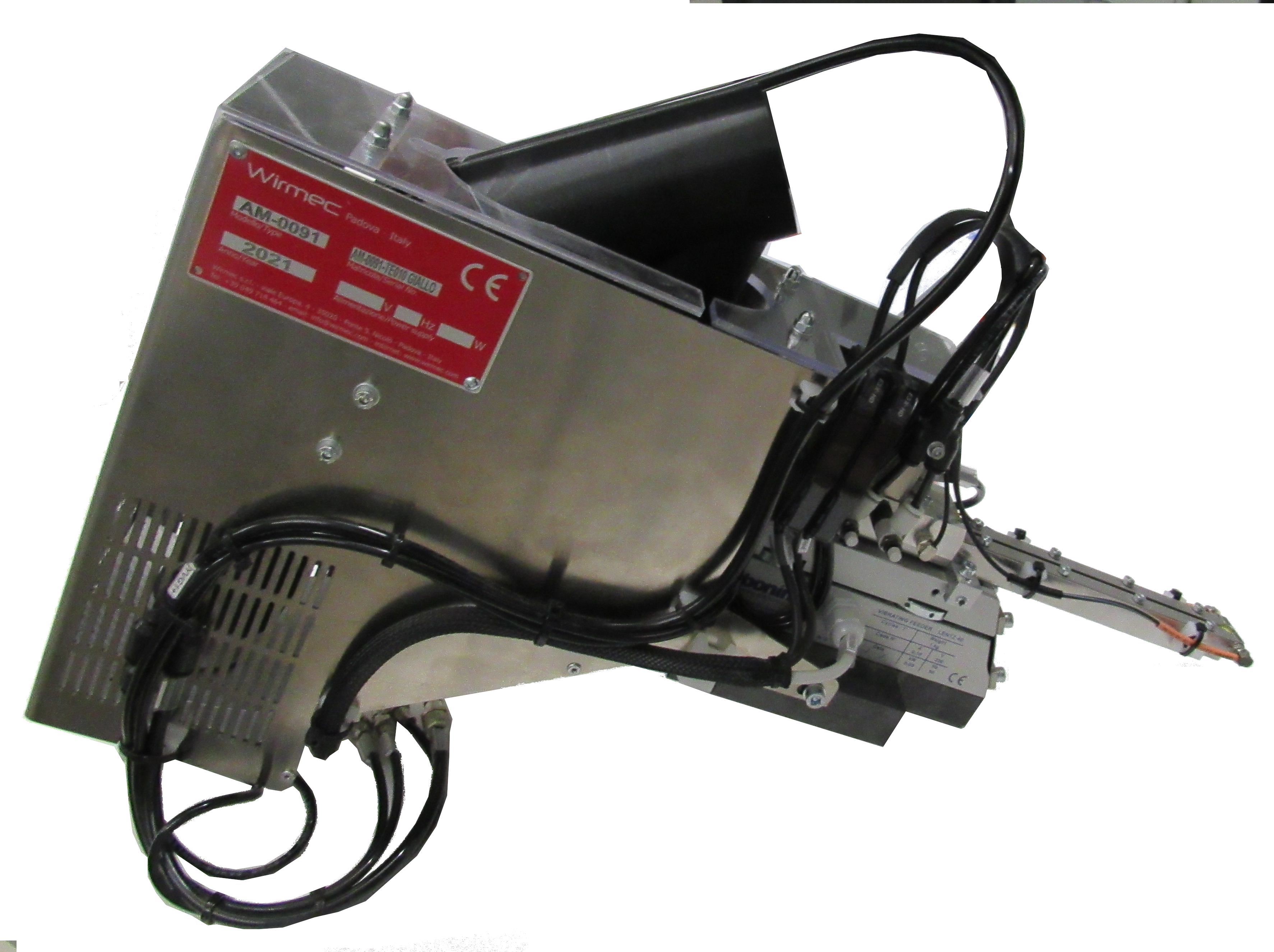

terminals on electric cables. It´s been developed on the WSC20 with the seal unit with patented motorized system
This machine increases the WirPress range
and it is very compact and has been developed for
customers that require high standard quality.
Very intuitive Integrated software, newest update for easy understanding.
Key features
• CE norms compliance• Programmable wire cross section and stripping lenght
• Double seal insertion cycle
• Settings processing on recipe
• Vacuum scraps system
• Programmable terminal ejector
• Terminal ejector position adjustable by videocamera
• Way back system
• Zero cut
• Quick change stripping blades
• Working area lighted
• Stripper module height adjustable
• Wire funnel Ø1,8 and Ø4mm
• Scraps box
• Monitor touch wide screen 7
• Vision interface in local language
