| Cross section | 0,13-2,5mm² (4mm² on request) |
| Wire lenght | 15mm crimp on side 1 |
| Wire lenght | 25mm crimp both side |
| Strip length | 1 - 40mm |
| Speed feeder | 8m/s |
| Power supply | 400V 50/60Hz 10kVA |
| Air supply | 6-7bar |
| Weight | 1100Kg |
| Dimensions | L3000 x L1400 x H2000 mm |
Wirmec - AM310 Quattro
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: WIR_AM310Q
Wirmec AM310Q

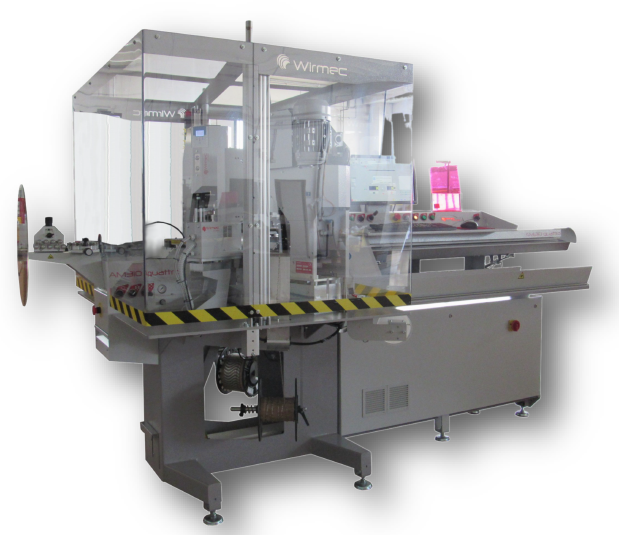

The cut, strip & crimp machine AM310 quattro is the ultimate expression of technology combined with Italian design. It can be equipped with many combinations of process stations to produce high quality wire harnesses.
It's projected for processing small wire cross sections and very short wire lenght. Presents itself as machine as very simply and easy to use.
- CE norms compliance

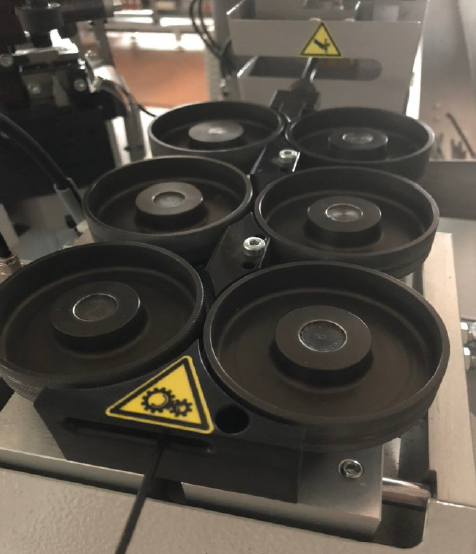

- Rollers wire feeder with a special coating
- Programmable cutting head
- Adjustable straighten unit
- Wire guides set
- Maintenance kit
- Safety guard
- Scraps box
- Operator shelf with storage and clipboard
- PC with monitor 21”
- Standard Vision interface in english
- Wi-Fi, Ethernet and USB connection
- Steel frame in Italian style
- Instruction and operator manuals in english
Our machines cut stripping crimping adopt the best technologies and innovative systems that make them competitive in both quality and price.
