| Cross section | 013-6mmq |
| Wire lenght | 42mm crimp only on one side, 55mm om both side. 30mm (optional) |
| Striping lenght | 0,1-15mm side 1&2 0,1-30mm side 1&2 (optional) |
| Speed feeder | 12m/s |
| Power supply | 400V 50/60Hz 10kVA |
| Air supply | 6 - 7bar |
| Weight | 1300Kg |
| Noise level | 75dB |
| Dimensions | 4000x1800x2000mm |
Wirmec - AM600 Vantage
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: WIR_AM600

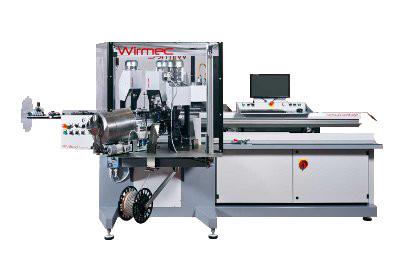

Wirmec - AM600 Vantage
Crimp to crimp machine:
Fully automatic crimping machine for the processing of two different cables.
Thanks to the integration of the new patented twin cable system,
it's proposes as an innovative and technological machine. Always designed for easy use and maintenance.
Key features
● Equipment up to six processing stations● Highly ergonomic and easy to maintain
● Electronic crimp height adjustment (optional)
● Integrated crimping height meadurement (optional)
● Integrated pull test device (optional)
● Integrated crimp quality control CFA (optional)
● Simple user interface and intuitive
● Ample opportunity to save parameters
● Innovative patented twin-wire feeder
● Use indiscriminately roller or belt on wire feeder
Our machines cut stripping crimping adopt the best technologies and innovative systems that make them competitive in both quality and price.
