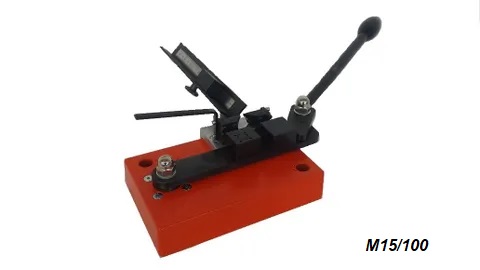

Rometsch M15/100
Manuell skalmaskin
Manual dismantling technology:
Single and multi-core cables, strands, etc. up to 15 mm outer diameter,
stripping length continuously adjustable
Manual dismantling technology:
Single and multi-core cables, strands, etc. up to 15 mm outer diameter,
stripping length continuously adjustable
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: ROM_M15/100
Rometsch M15/100
The manual operated cable insulation removers are used in the electrician`s
workshop or in the cable pre-assembly industrie, when the insulation of cables has to
be removed quickly.
Once adjusted, a simple pull on the hand lever and the part of the outer insulation is
cut and removed. The cutting blades can be adjusted easily without any tools to suit
your cable diameter and insulation removal length.
Cutting blade sets are not included in the basic equipment!
Data sheet
Basic equipment: STRIPPER M 15 / 100
Part-Number: 10002_SN
Technical Data:
- Suitable cable diameter: 15 mm
- Insulation removal length up to 100mm
Dimension:
- length 210 mm
- width 80 mm
- height 100 mm
- weight Ca. 4,5 Kg
Available Accessories:
Quadruple stripping blade
- 2-3-4-5mm∅
- 2,5-3,5-4,5-5,5mm∅
- 6-7-8-9mm∅
- 6,5-7,5-8,5-9,5mm∅
Dual stripping blade:
- 10-11mm∅
- 12-13mm∅
