BE-RI - AM.STRIP.2V
Pneumatisk klipp o skalmaskin för kabel Ø 1,0-25mm till bredd 35mm
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: BER_AM.STRIP.2V

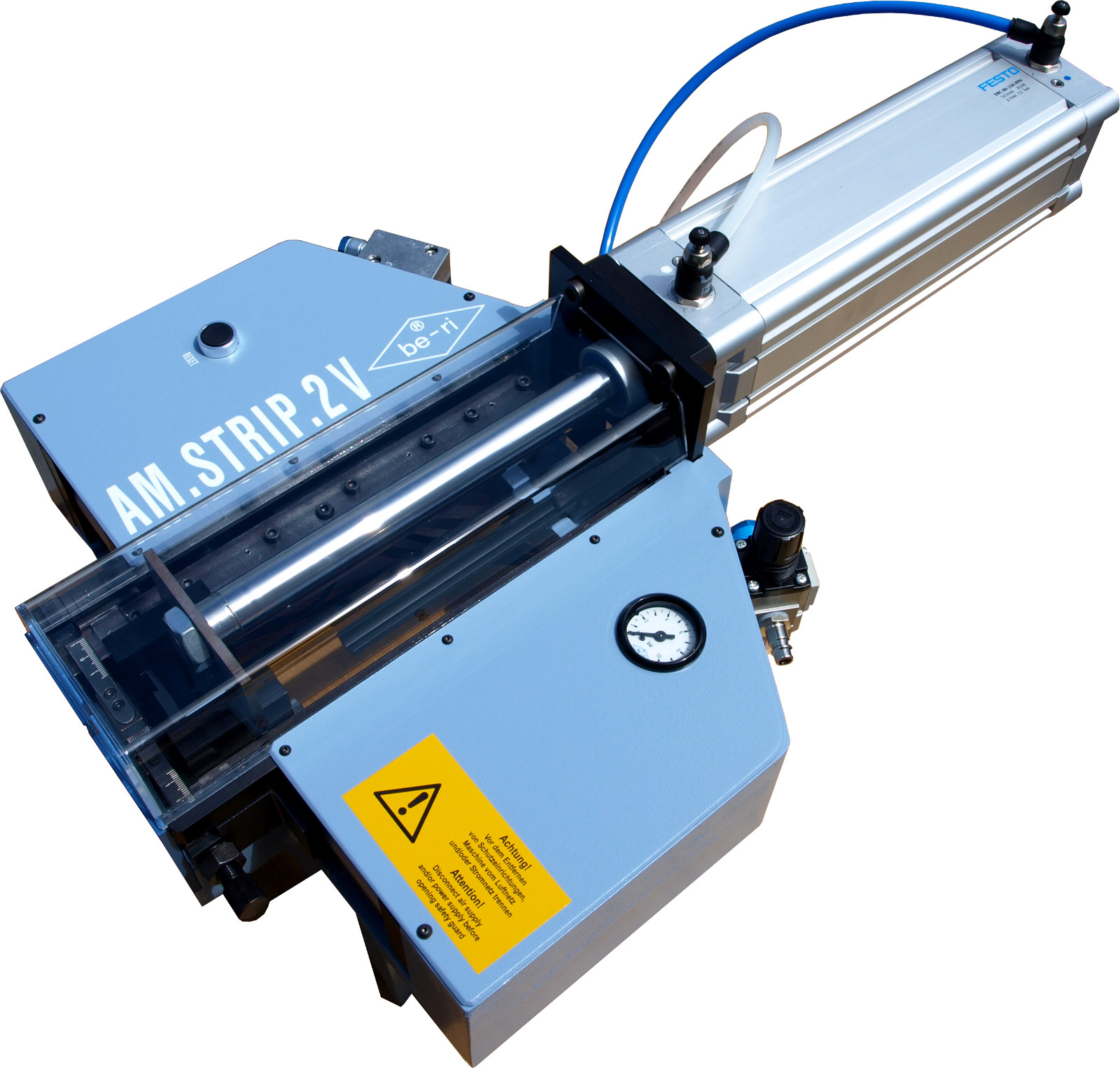

BE-RI - AM.STRIP.2V Pneumatic cable cutting and stripping machine Ø 1,0-25mm or 35mm width
The Am.Strip.2, Am.Strip. 2 V and Am.Strip.2/35
are universal semi-automatic stripping machines for
the economical production of small to medium series.
The use of special knives to suit the cable being proc
essed allows nearly all standard cables to be handled.
All machine retooling can be done in seconds without
tools. When prism knives are used, the machine
adapts automatically from the standard setting to
other cross – sections up to 6 mm2 (depending on cable)
Pneumatic stripping-machine
Outer diameter from 1,0 mm up to 25 mm
Flat cable up to 35 mm width
Stripping length full stroke up to 230 mm
Stripping length partial stroke "unlimited stripping length (with extended stop in partial stroke ?depending from cable)
Optional Devices:
Slitting device for slitting and stripping flat cables
Special blade head constructions for graduated or 2step processing (tests and construction are necessary in our company)
Stripping stop dog for greater stripping length (partial stripping)
Stroke limitation for partial stripping and quicker working
Pneumatic sensor
Light barrier for very precise stripping results
(tests and construction are necessary in our company)
