Beskrivning
Art.nr: BER_AM.STRIP.2/35

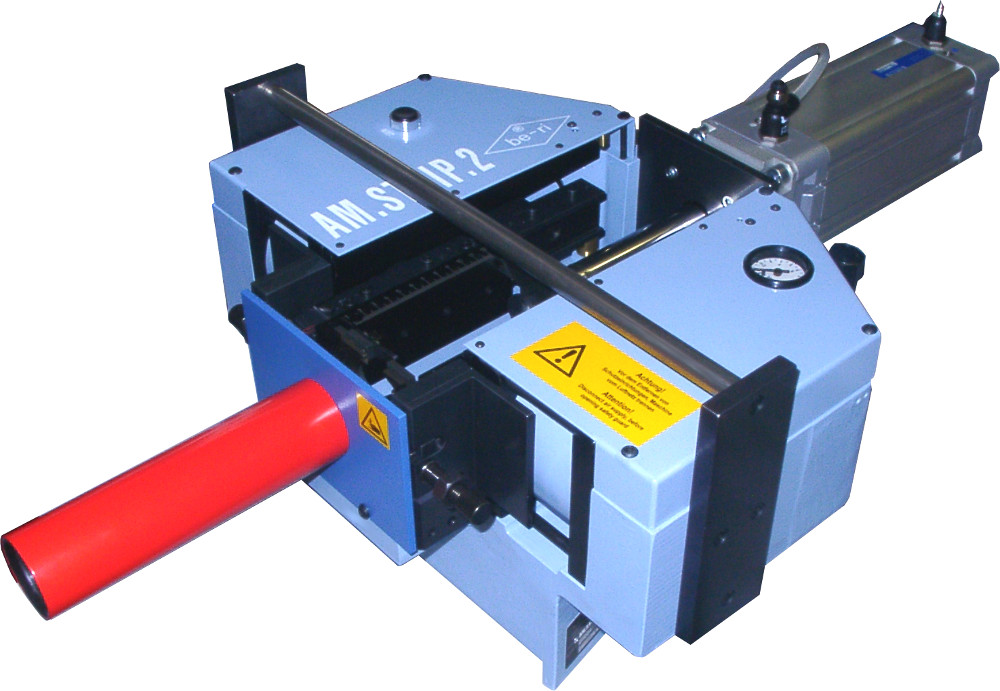

BE-RI - AM.STRIP.2/35 Pneumatic stripping-machine for cable up to Ø 35mm
The Am.Strip.2, Am.Strip. 2 V and Am.Strip.2/35
are universal semi-automatic stripping machines for
the economical production of small to medium series.
The use of special knives to suit the cable being proc
essed allows nearly all standard cables to be handled.
All machine retooling can be done in seconds without
tools. When prism knives are used, the machine
adapts automatically from the standard setting to
other cross – sections up to 6 mm2 (depending on cable)
Optional Devices:
*Slitting device for slitting and stripping flat cables
*Stripping stop dog for greater stripping length (partial stripping)
*Stroke limitation for partial stripping and quicker working
*Pneumatic sensor
*Light barrier for very precise stripping results
*Special blade head constructions for graduated or 2step processing
(tests and construction are necessary in our company)
