| Striping | Roound cables: from 0,5-15mmØ |
| Striping | Flat band cables up to 20mm Width |
| Striping | MAX. strip length: up to 65 full strip up to 250 part strip |
| Air supply | 6 - 7bar |
| Weight | 12,2Kg |
| Dimensions | 340x 340 x150mm |
BE-RI - AM.STRIP.1
Pneumatisk skalmaskin
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: BER_STRIP1

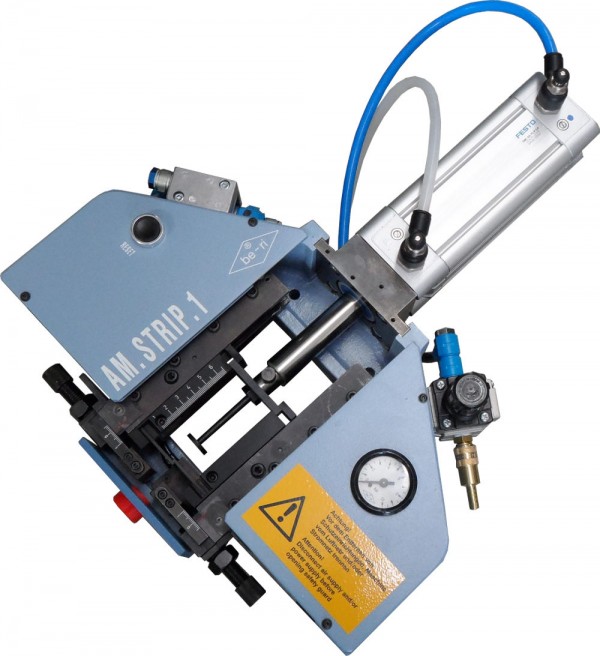

BE-RI - AM.strip.1
Pneumatic stripping-machine
The Am.Strip.1 is a universal semi-automatic strip
ping machine for the economical production of small
to medium series.
The use of special knives to suit the cable being processed allows
nearly all standard cables to be handled. All machine retooling can be done
in seconds without tools.
When prism knives are used, the machine adapts automatically from the
standard setting to other cross – sections up to 6 mm2 (depending on cable).
In a limited scope and with smaller batch sizes, the
machine can also be used for cutting length.
