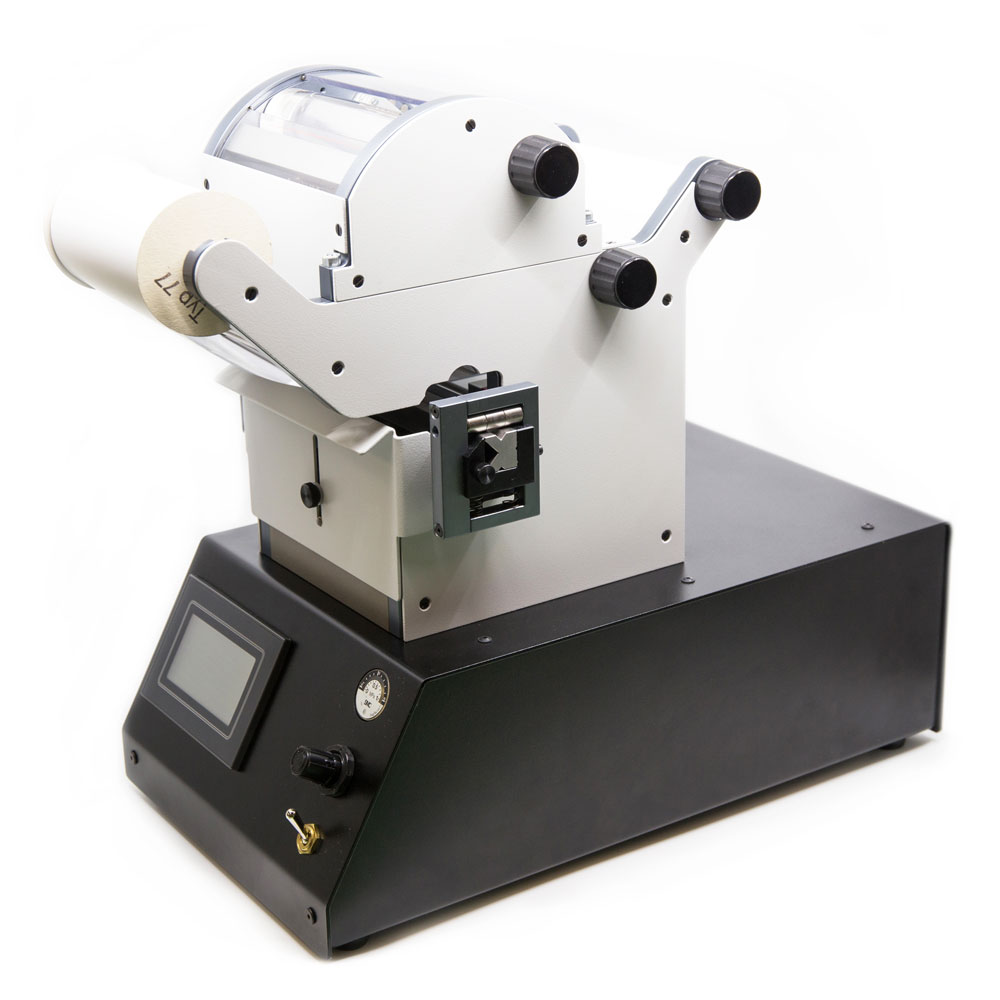

Hot marking unit Z-500
Värmepräglare Z-500
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: LOE_Z-500
| Power supply | 115 VAC, 60 Hz, max. 425 VA 230 VAC, 50 Hz, max. 425 VA |
| Compressed air supply | 0.7 MPa |
| Heating control | Sensor controlled heating control 90 - 180 °C |
| Cable Ø minimum - maximum: Single marking | 1.6 mm - 16.0 mm |
| Cable Ø minimum - maximum: In Line production | 1.6 mm - 16.0 mm |
| Cable Ø minimum - maximum: Optional in Linie prod. | 15.0 mm - 24.0 mm |
| Production rate | Approx. 0.5 seconds per printing action (depending upon dwell time and stroke) |
| Number of wheels to be installed with letter height: 1.5 mm to 2.3 mm | 1 to 44 Printing wheels (positioning freely selectable) |
| Number of wheels to be installed with letter height: 2.5 mm to 3.5 mm | 1 to 26 Printing wheels (positioning freely selectable) |
| Letter heights in mm | 1.5, 1.6, 1.6 vertical, 1.7, 1.8, 2.0, 2.1, 2.3, 2.5, 3.5, 3.5 flat |
| Numbers of sings per wheel | 40 |
| Available signs | A - Z / 0 - 9 . / - space |
| Foil types | Various qualities and colors |
| Foil measurements | 29 mm x 120 m 58 mm x 120 m 116 mm x 120 m |
| Foil consumption | Continuously variable (adapted to letter height) |
| Abmessungen Z-500 (L x W x H) | 470 x 230 x 400 470 x 340 x 400 with cable straightener |
| Weight | 20 kg |
| Noise level | < 70 dB (A) |
