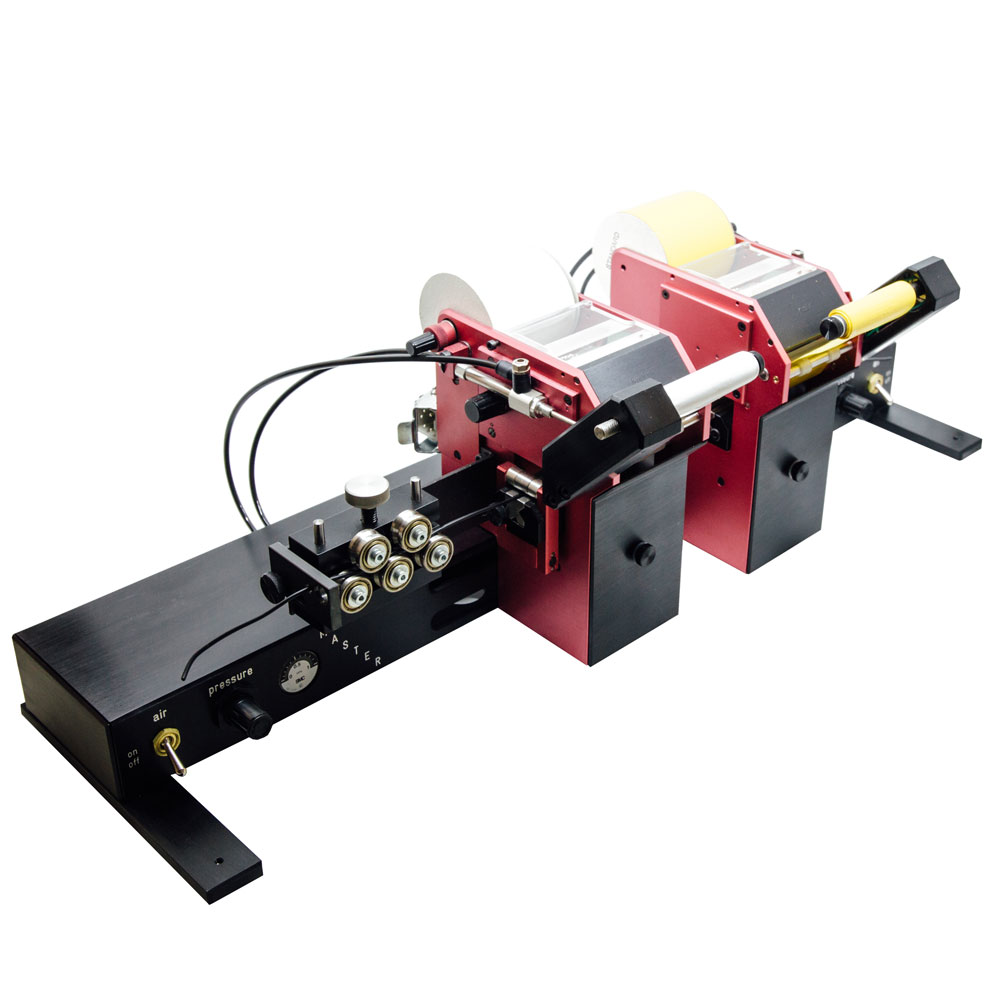

Hot marking unit Z-284
Värmepräglare Z-284
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: LOE_Z-284
| Power supply | 220 V 50 Hz, or 110 V 60 Hz |
| Compressed air supply | max. 0.7 Mpa (7 bar / 90 psi) |
| Heating control | Closed loop temperature control 0 - 160°C (0 - 320º F) |
| maximum character wheel capacity | 24 wheels per printing head (total of 48 wheels) |
| Smallest possible printing distance when using 2x24 wheels | 23 mm |
| Biggest possible printing distance when using 2x24 wheels | 182 mm |
| Printing table height | 100 mm |
| Cable Ø minimum | 1.2 mm (0.048 inch) |
| Kabel Ø maximum | 7.0 mm with cable clamp 12 mm without cable clamp |
| Characters per wheel | Type 1: A - Z . space Type 2: 0 - 9 . / - + A-M Type 3: 0 - 9 . / - + N-Z Type 4: 0 - 9 . / - + |
| Typeface dimensions (mm) | Concave, horizontal: 1.2, 1.5, 1.6, 1.8, 1.7, 2.0, 2.1, 2.3 Concave, vertical: 1.2, 1.6 Flat, horizontal: 2.0 |
| Foil types | Several types and colors |
| Foil width | 29 - 58 mm |
| Foil consumption | 2.5 - 3.0 mm |
| Dimensions printing unit | 635 x 280 x 200 mm |
| Dimensions control unit | 380 x 270 x 75 mm |
| Weight printing unit | 8.5 kg |
| Weight control unit | 5.5 kg |
| Noise level | < 70 dB (A) |
