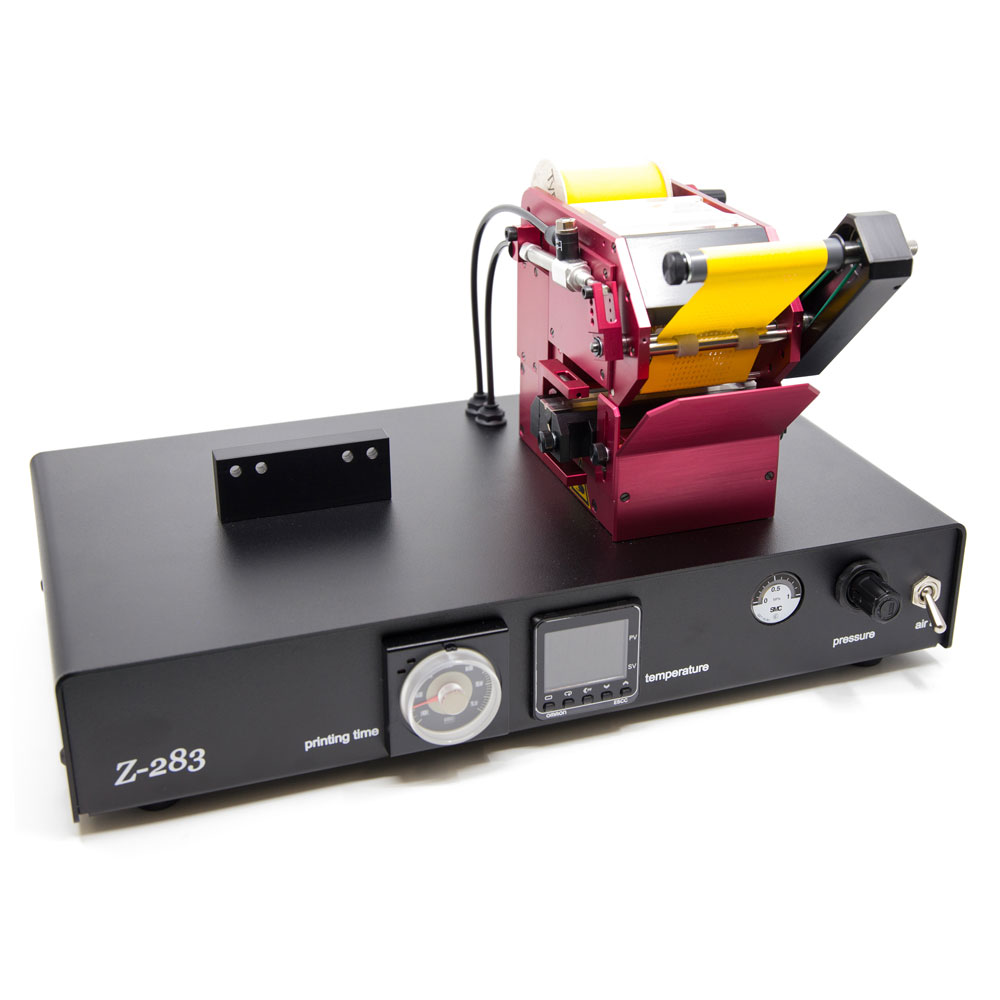

Hot marking unit Z-283
Värmepräglare Z-283
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: LOE_Z-283
| Power supply | 115 VAC, 230 VAC, 50-60 Hz, max. 200 VA |
| Compressed air supply | 0.7 MPa (7 bar) |
| Temperature controller | Closed loop temperature control 0 - 160°C |
| Cable Ø minimum | 1.2 mm (0.048 inch) |
| Kabel Ø maximum | 7.0 mm (0.275 inch) with production line, 14 mm (0.551 inch) with single stamping |
| Characters per wheel: | Type 1: A - Z . space Type 2: 0 - 9 . / - + A-M Type 3: 0 - 9 . / - + N-Z Type 4: 0 - 9 . / - + |
| Typeface dimensions (mm): | Concave, horizontal: 1.2, 1.5, 1.6, 1.8, 1.7, 2.0, 2.1, 2.3 Concave, vertical: 1.2, 1.6 Flat, horizontal: 2.0 |
| Foil types | Several types and colors |
| Foil width | 29 mm - 58 mm |
| Foil consumption | 2.5 - 4.0 mm / stroke |
| Dimensions | 380 x 260 x 220 mm (14.9 x 10.2 x 8.6 inch) |
| Weight | 8200 Kg (18.1 lbs) |
| Noise level | < 70 dB (A) |
