| User Interface | 10.4” (264 mm) Color LCD, Touch Screen, Icon based - Graphical User Interface (GUI) |
| Printing | Printhead Orientation - Omnidirectional |
| Lines of Print | 1-2 Lines, 16 pixel |
| Print Fonts | 5, 7, 9, 12, 16, 19, 25 |
| Adjustable Print Height | .06" (1.5 mm) - .75" (19 mm) |
| Print Speed | Up to 1300 Feet/Minute (397 M/minute) |
| Ink Throw Distance | .5" (12 mm) - 2" (50 mm) |
| Machine Interface | RS232 |
| Inputs | 1 Photocell, 1 Shaft Encoder |
| Outputs | 4 Alarm Outputs |
| SmartFilter™ Life | 5,000 hours |
| Operating Environment | Temperature: 32° - 122° F (0° - 50° C), % Relative Humidity: 10 - 90% (non condensing) |
| Electrical Requirements | Auto Ranging: 100 - 240 VAC (3 Amp), Frequency: 50 - 60 Hz, Power Consumption: 50 W |
| Compliance | CE Certified, RoHS Compliant |
86CIJ
DESIGNED FOR
HIGH SPEED APPLICATIONS
HIGH SPEED APPLICATIONS
- Maila oss, vi svarar snabbt!
- Faktura
- • 0708-14 76 00 • Mån-Fre • kl. 07.30-16:30
- Min. order 500 kr ex. moms.
- Frakt från 95kr
Beskrivning
Art.nr: 86CIJ
86CIJ
Designed for high speed applications printing 1, 2, or 3 lines of text, barcode and graphics. Typical applications mark and code 1 or 2 shifts per day, 5 days per week – 3,000 to 5,000 hour annual operation, with high speed production line speeds.

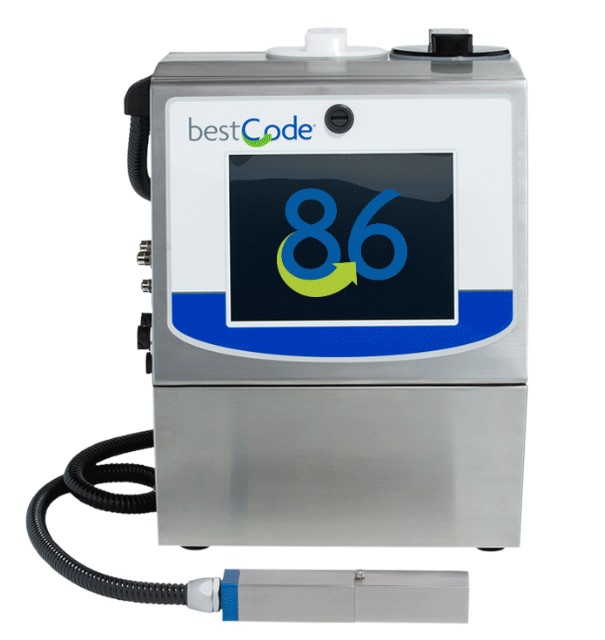

BestCode Model 86 System
Mark and Code Anything
The BestCode Model 86 is targeted at high speed applications, printing 1, 2, or 3 lines of text, barcodes or graphics. A complete range of dye and soft pigmented inks available in a variety of colors for a wide range of applications.
Typical applications mark and code one to two shifts per day, five days per week, averaging 2,500 — 5,000 hour annual operation. Utilize integrated RS232 and programmable inputs\outputs for remote control and communications.
Systems are simplified to allow anyone to operate, minimizing operator touches.
